Common blur use cases

The following sections show how to combine Modifier.blur, BlurRadiusSpec, BlurStop, and BlurScope for common UI patterns. For an introduction to these APIs, see Blurring in Compose.

Blur the edges of scrolling or draggable content

When displaying a scrolling list, carousel, or picker, you can use multi-stop progressive blurs to soften items near the container edges while keeping the active center region in sharp focus.

Fade top and bottom edges of a scrolling list

To soften items as they scroll into and out of a vertical list's viewport, apply BlurRadiusSpec.verticalGradient with BlurStop entries to the LazyColumn. In the following example, which scrolls song lyrics line by line, the 0.dp stops between 0.42f and 0.58f keep the active line in the center sharp while the lines toward the top and bottom edges progressively blur out:

@Composable
fun SongListTopBottomBlurExample(lyrics: List<String>) {
    // ...
    LazyColumn(
        state = listState,
        flingBehavior = flingBehavior,
        modifier = Modifier
            .width(330.dp)
            .height(480.dp)
            .padding(horizontal = 24.dp)
            .blur(
                blurRadiusSpec = BlurRadiusSpec.verticalGradient(
                    stops = listOf(
                        BlurStop(fraction = 0.00f, radius = 18.dp), // Heavily blurred top edge
                        BlurStop(fraction = 0.24f, radius = 8.dp), // Soft upper transition
                        BlurStop(fraction = 0.42f, radius = 0.dp), // Sharp center focus starts
                        BlurStop(fraction = 0.58f, radius = 0.dp), // Sharp center focus ends
                        BlurStop(fraction = 0.76f, radius = 8.dp), // Soft lower transition
                        BlurStop(fraction = 1.00f, radius = 18.dp), // Heavily blurred bottom edge
                    ),
                ),
                edgeTreatment = BlurredEdgeTreatment.Unbounded,
            ),
        contentPadding = PaddingValues(vertical = 36.dp),
        verticalArrangement = Arrangement.spacedBy(26.dp),
        horizontalAlignment = Alignment.CenterHorizontally,
    ) {
        // ...
    }
}

Figure 1. A vertical list of song lyric text lines where top and bottom lines fade out in blur while the center line is clear.

Fade left and right edges of a horizontal control

Similarly, to draw focus to the center of a horizontally scrollable or draggable component, such as a wheel picker, carousel, or measurement scale, apply BlurRadiusSpec.horizontalGradient with BlurStop entries. In the following draggable weight scale, the left and right edges soften while the ticks and numbers near the center indicator needle stay completely sharp:

@Composable
fun HorizontalScaleBlurExample() {
    var selectedValue by remember { mutableFloatStateOf(65.0f) }
    val animatedValue by animateFloatAsState(
        targetValue = selectedValue,
        animationSpec = tween(durationMillis = 900, easing = FastOutSlowInEasing),
        label = "horizontalScaleSmoothScroll",
    )
    Column(
        modifier = Modifier
            .width(340.dp)
            .background(Color(0xFF0F172A), RoundedCornerShape(24.dp))
            .padding(vertical = 24.dp),
        horizontalAlignment = Alignment.CenterHorizontally,
    ) {
        Text(
            text = "${(animatedValue * 10).roundToInt() / 10.0} kg",
            color = Color.White,
            fontSize = 44.sp,
            fontWeight = FontWeight.Black,
        )
        Spacer(Modifier.height(16.dp))
        Box(
            // ...
        ) {
            // Ruler ticks blurred at the left and right edges, sharp at center
            Canvas(
                modifier = Modifier
                    .fillMaxSize()
                    .blur(
                        blurRadiusSpec = BlurRadiusSpec.horizontalGradient(
                            stops = listOf(
                                BlurStop(fraction = 0.00f, radius = 14.dp),
                                BlurStop(fraction = 0.28f, radius = 0.dp),
                                BlurStop(fraction = 0.72f, radius = 0.dp),
                                BlurStop(fraction = 1.00f, radius = 14.dp),
                            ),
                        ),
                        edgeTreatment = BlurredEdgeTreatment.Unbounded,
                    ),
            ) {
                // Draw horizontal ruler ticks offset by `animatedValue`
                // ...
            }
            // ...
        }
    }
}

Figure 2. A horizontal ruler scale widget showing blurred tick marks near the edges and sharp ticks near the indicator needle.

Create a diagonal blur with linearGradient

BlurRadiusSpec.linearGradient varies the blur radius along a line segment between start and end DpOffset values in the layer's coordinate space. Inside the Modifier.blur lambda block, you can read BlurScope.size to run a diagonal progressive blur across a hero image from the top-left corner to the bottom-right corner, keeping the subject at the top-left completely sharp while progressively blurring the lower-right region behind the overlaid text:

@Composable
fun DiagonalLinearBlurCardExample() {
    Box(
        modifier = Modifier
            .wrapContentSize()
            .background(Color(0xFFF8FAFC))
            .padding(10.dp),
    ) {
        Image(
            painter = painterResource(id = R.drawable.dog),
            contentDescription = stringResource(id = R.string.dog_content_description),
            contentScale = ContentScale.Crop,
            modifier = Modifier
                .size(width = 300.dp, height = 380.dp)
                .blur {
                    blurRadiusSpec = BlurRadiusSpec.linearGradient(
                        start = DpOffset(0.dp, 0.dp),
                        end = DpOffset(size.width, size.height),
                        stops = listOf(
                            BlurStop(fraction = 0.00f, radius = 0.dp),
                            BlurStop(fraction = 0.50f, radius = 0.dp),
                            BlurStop(fraction = 0.75f, radius = 14.dp),
                            BlurStop(fraction = 1.00f, radius = 28.dp),
                        ),
                    )
                    edgeTreatment = BlurredEdgeTreatment(RoundedCornerShape(24.dp))
                },
        )
        // ...
    }
}

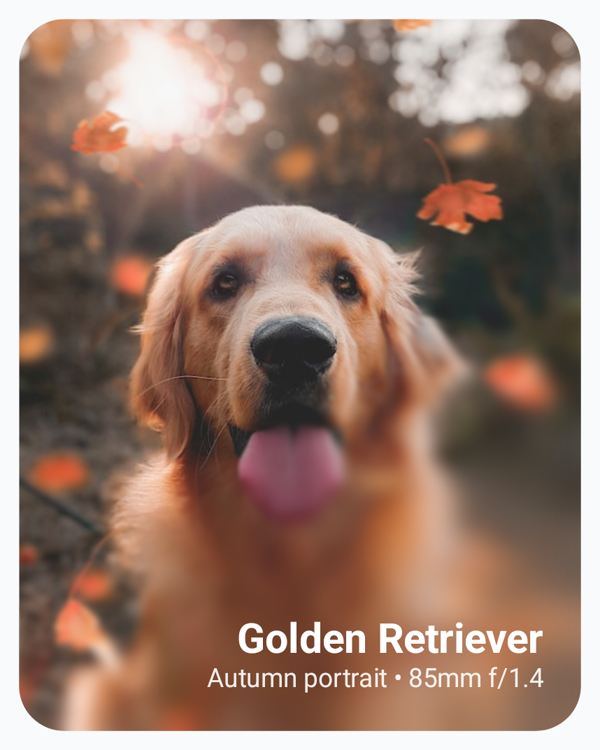

A dog portrait that is sharp in the upper-left and progressively blurred toward the lower-right corner, with sharp white title and subtitle text overlaid on the blurred region.
Figure 3. A dog portrait that is sharp in the upper-left and progressively blurred toward the lower-right corner, with sharp white title and subtitle text overlaid on the blurred region.

Create a focus spotlight with radialGradient

BlurRadiusSpec.radialGradient creates a circular spotlight effect by varying the blur radius outward from a focal point. Define center as a DpOffset and fallOffRadius as the Dp distance from center at which endRadius is reached. If you leave center as DpOffset.Unspecified, the gradient is centered on the composable, and if you leave fallOffRadius as Dp.Unspecified, it defaults to half of the layer's smaller dimension.

For example, applying BlurRadiusSpec.radialGradient over a passage of text and updating center from pointer drag events lets the user drag a circular reading spotlight across the paragraph while blurring the surrounding text, as shown in the following example:

@Composable
fun RadialSpotlightTextExample() {
    var touchOffset by remember { mutableStateOf(Offset.Unspecified) }
    Box(
        modifier = Modifier
            .size(width = 330.dp, height = 340.dp)
            .background(Color(0xFF0F172A), RoundedCornerShape(20.dp))
            .pointerInput(Unit) {
                detectDragGestures(
                    onDragStart = { offset -> touchOffset = offset },
                    onDrag = { change, _ -> touchOffset = change.position },
                )
            }
            .blur {
                val spotlightCenter = if (touchOffset.isSpecified) {
                    DpOffset(touchOffset.x.toDp(), touchOffset.y.toDp())
                } else {
                    DpOffset(x = size.width / 2, y = size.height / 2)
                }
                blurRadiusSpec = BlurRadiusSpec.radialGradient(
                    startRadius = 0.dp,
                    endRadius = 10.dp,
                    center = spotlightCenter,
                    fallOffRadius = 215.dp,
                )
                edgeTreatment = BlurredEdgeTreatment(RoundedCornerShape(20.dp))
            }
            .padding(22.dp),
    ) {
        // ...
    }
}

Figure 4. A paragraph of text with a circular area of sharp text around the pointer that becomes progressively blurred toward the edge of the circle.

Create a custom blur mask with a shader

For complex spatial blur distributions beyond linear or radial gradients, such as repeating patterns, arbitrary shapes, or procedural noise, pass a custom Shader, such as an AGSL RuntimeShader, to BlurRadiusSpec.shader. The shader evaluates in layer pixel coordinates from the top-left origin, and its sampled alpha channel (0..1) scales maxRadius.

Create the shader and BlurRadiusSpec.shader configuration once using the remember composable function, so a single instance is reused across recompositions. Compose invokes the configuration block with the layer size on each resolve, which is where you set size-dependent uniforms:

@RequiresApi(Build.VERSION_CODES.TIRAMISU)
@Composable
fun ShaderBlurExample() {
    // Creates 6 diagonal frosted-glass bands across the image.
    val maskShader = remember {
        RuntimeShader(
            """
            uniform float2 size;
            half4 main(float2 coord) {
                float2 uv = coord / size;
                float band = smoothstep(0.4, 0.6, fract((uv.x + uv.y) * 3.0));
                return half4(0.0, 0.0, 0.0, half(band));
            }
            """.trimIndent(),
        )
    }
    val maskBlurSpec = remember(maskShader) {
        BlurRadiusSpec.shader(maxRadius = 24.dp) { sizePx ->
            maskShader.setFloatUniform("size", sizePx.width, sizePx.height)
            maskShader
        }
    }
    Image(
        painter = painterResource(id = R.drawable.dog),
        contentDescription = stringResource(id = R.string.dog_content_description),
        contentScale = ContentScale.Crop,
        modifier = Modifier
            .size(150.dp)
            .blur(blurRadiusSpec = maskBlurSpec),
    )
}

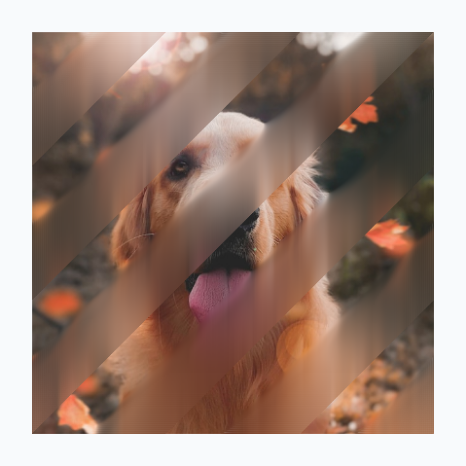

A dog image with diagonal frosted-glass blur bands driven by a custom shader mask.
Figure 5. A dog image with diagonal frosted-glass blur bands driven by a custom shader mask.
