プロセス内トレース（試験運用版）

kotlin {
  androidLibrary {
    namespace = "com.example.library"
    // ...
  }
  sourceSets {
    androidMain {
      dependencies {
        api("androidx.tracing:tracing-wire-android:2.0.0-alpha01")
        // ...
      }
    }
    jvmMain {
      dependencies {
        api("androidx.tracing:tracing-wire-desktop:2.0.0-alpha01")
        // ...
      }
    }
  }
}

/**
 * A [TraceSink] defines how traces are serialized.
 *
 * [androidx.tracing.wire.TraceSink] uses the `Perfetto` trace packet format.
 */
fun createSink(): TraceSink {
    val outputDirectory = File(/* path = */ "/tmp/perfetto")
    if (!outputDirectory.exists()) {
        outputDirectory.mkdirs()
    }
    // We are using the factory function defined in androidx.tracing.wire
    return TraceSink(
        sequenceId = 1,
        directory = outputDirectory
    )
}
/**
 * Creates a new instance of [androidx.tracing.TraceDriver].
 */
fun createTraceDriver(): TraceDriver {
    // We are using a factory function from androidx.tracing.wire here.
    // `isEnabled` controls whether tracing is enabled for the application.
    val driver = TraceDriver(sink = createSink(), isEnabled = true)
    return driver
}

// Tracing Categories identify subsystems that are responsible
// in generating trace sections. Future APIs in `TraceDriver` will allow the
// application to specify which categories they are interested in tracing.
// This lets the application disable entire trace categories, without
// needing to disable trace instrumentation at the call sites for those
// categories.

internal const val CATEGORY_MAIN = "main"

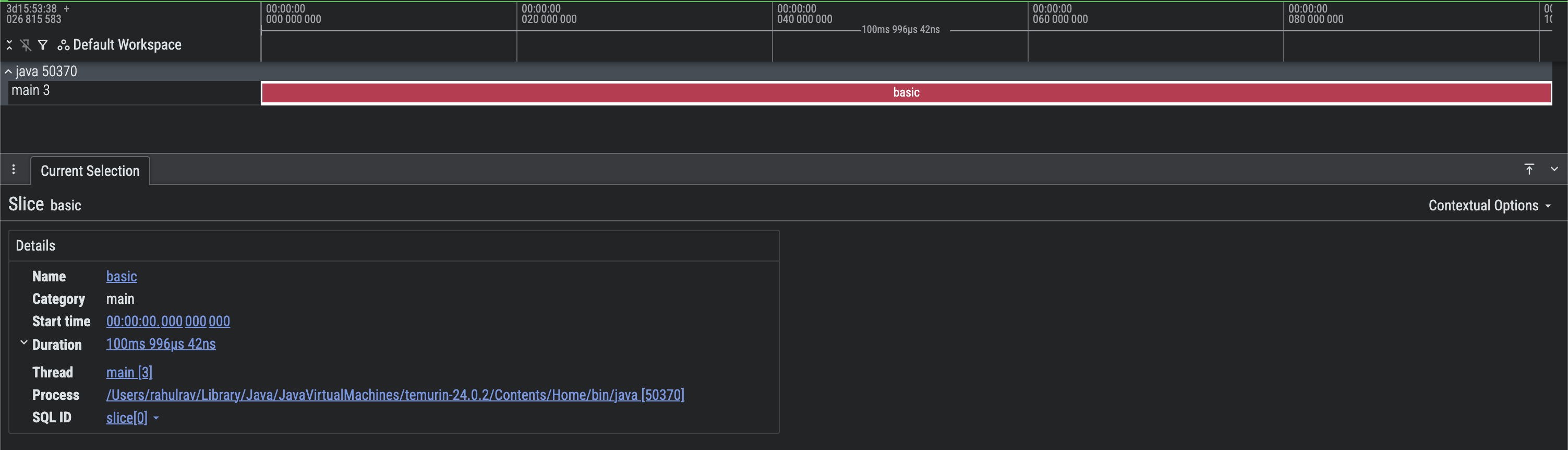

fun main() {
    val driver = createTraceDriver()
    driver.use {
        driver.tracer.trace(category = CATEGORY_MAIN, name = "basic") {
            Thread.sleep(100L)
        }
    }
}

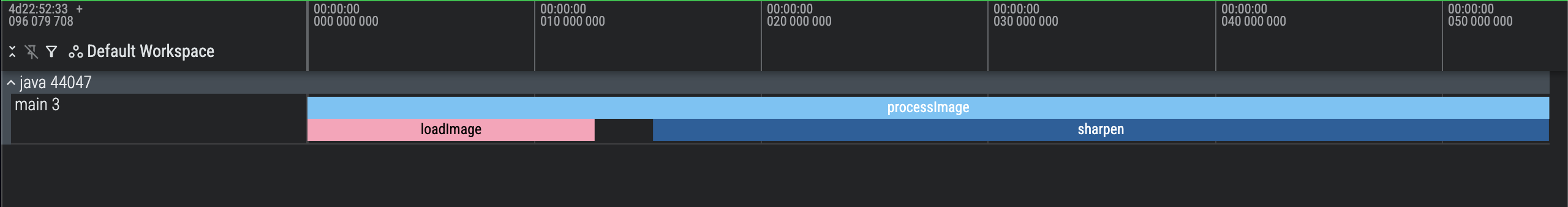

fun main() {
    // Initialize the tracing infrastructure to monitor app performance
    val driver = createTraceDriver()
    val tracer = driver.tracer
    driver.use {
        tracer.trace(
            category = CATEGORY_MAIN,
            name = "processImage",
        ) {
            // Load the data first, then apply the sharpen filter
            sharpen(tracer = tracer, output = loadImage(tracer))
        }
    }
}

internal fun loadImage(tracer: Tracer): ByteArray {
    return tracer.trace(CATEGORY_MAIN, "loadImage") {
        // Loads an image
        // ...
        // A placeholder
        ByteArray(0)
    }
}

internal fun sharpen(tracer: Tracer, output: ByteArray) {
    // ...
    tracer.trace(CATEGORY_MAIN, "sharpen") {
        // ...
    }
}

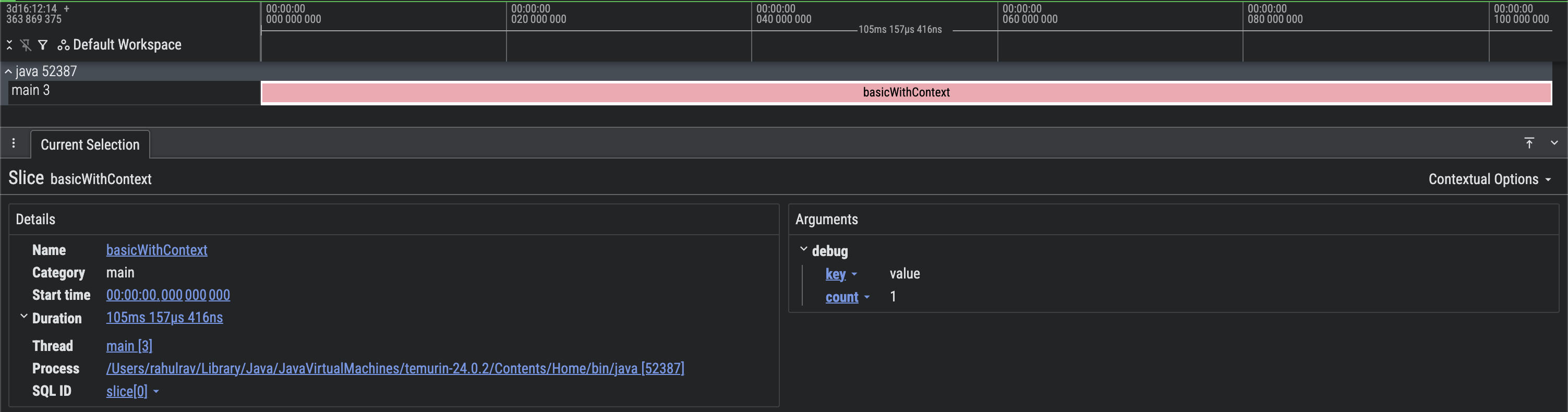

fun main() {
    val driver = createTraceDriver()
    driver.use {
        driver.tracer.trace(
            category = CATEGORY_MAIN,
            name = "basicWithContext",
            // Add additional metadata
            metadataBlock = {
                // Add key value pairs.
                addMetadataEntry("key", "value")
                addMetadataEntry("count", 1L)
            }
        ) {
            Thread.sleep(100L)
        }
    }
}

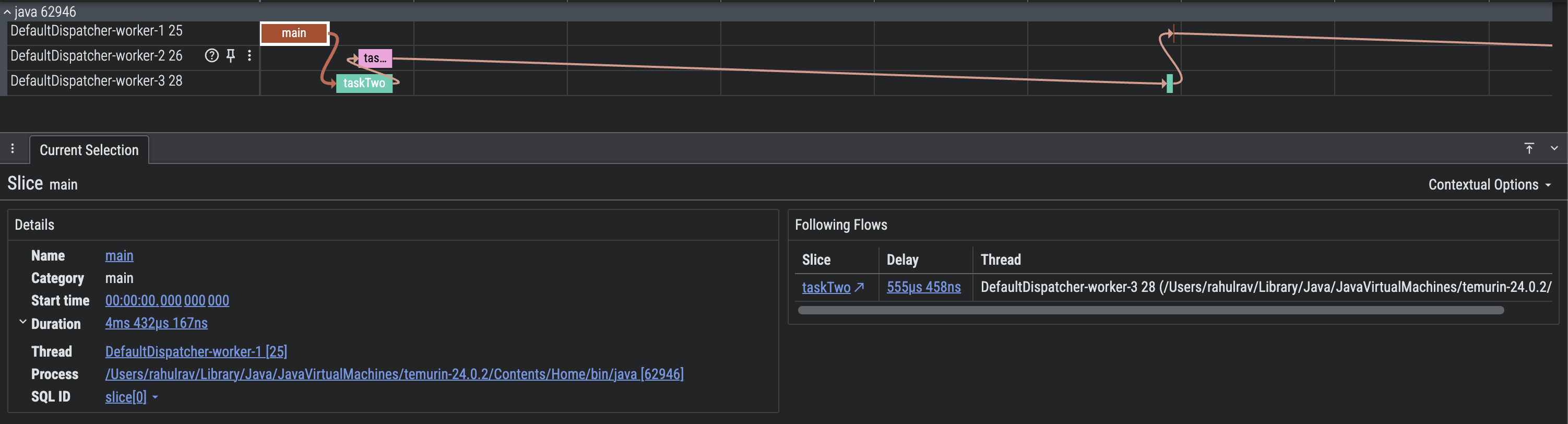

suspend fun taskOne(tracer: Tracer) {
    tracer.traceCoroutine(category = CATEGORY_MAIN, "taskOne") {
        delay(timeMillis = 100L)
    }
}

suspend fun taskTwo(tracer: Tracer) {
    tracer.traceCoroutine(category = CATEGORY_MAIN, "taskTwo") {
        delay(timeMillis = 50L)
    }
}

fun main() = runBlocking(context = Dispatchers.Default) {
    val driver = createTraceDriver()
    val tracer = driver.tracer
    driver.use {
        tracer.traceCoroutine(category = CATEGORY_MAIN, name = "main") {
            coroutineScope {
                launch { taskOne(tracer) }
                launch { taskTwo(tracer) }
            }
        }
        println("All done")
    }
}

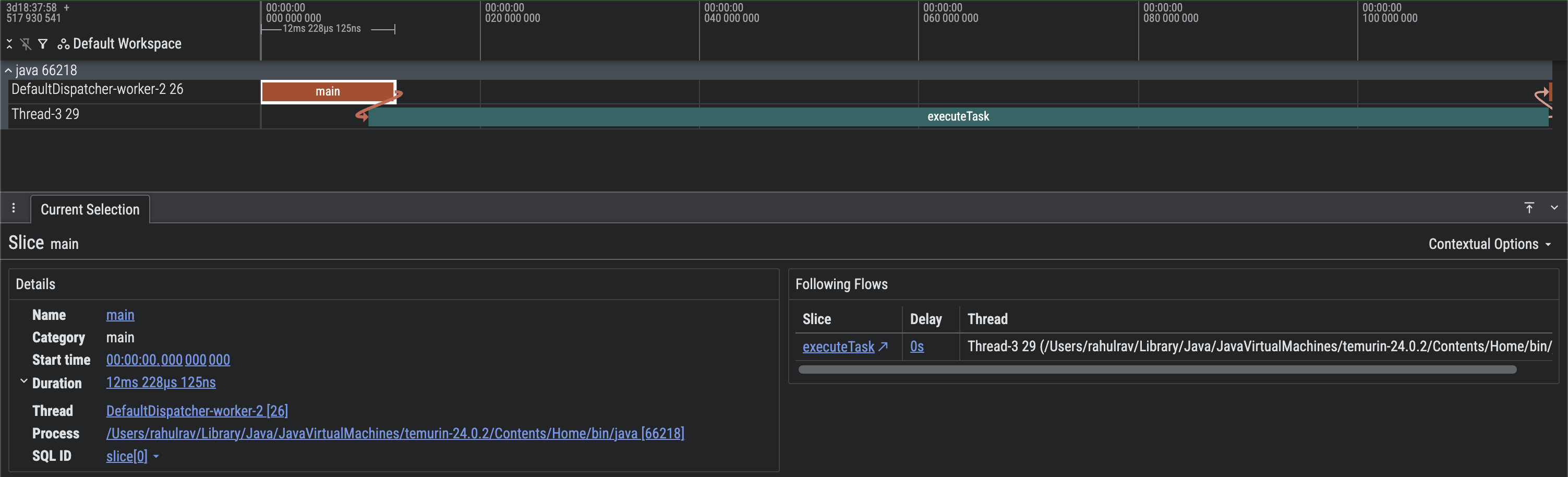

fun executorTask(
    tracer: Tracer,
    token: PropagationToken,
    executor: Executor,
    callback: () -> Unit
) {
    executor.execute {
        tracer.trace(
            category = CATEGORY_MAIN,
            name = "executeTask",
            token = token,
        ) {
            // Do something
            Thread.sleep(100)
            callback()
        }
    }
}

@OptIn(DelicateTracingApi::class)
fun main() = runBlocking(context = Dispatchers.Default) {
    val driver = createTraceDriver()
    val executor = Executors.newSingleThreadExecutor()
    val tracer = driver.tracer
    driver.use {
        tracer.traceCoroutine(category = CATEGORY_MAIN, name = "main") {
            coroutineScope {
                val deferred = CompletableDeferred<Unit>()
                executorTask(
                    tracer = tracer,
                    // Obtain the propagation token from the CoroutineContext
                    token = tracer.tokenFromCoroutineContext(),
                    executor = executor,
                    callback = {
                        deferred.complete(Unit)
                    }
                )
                deferred.await()
            }
        }
        executor.shutdownNow()
    }
}

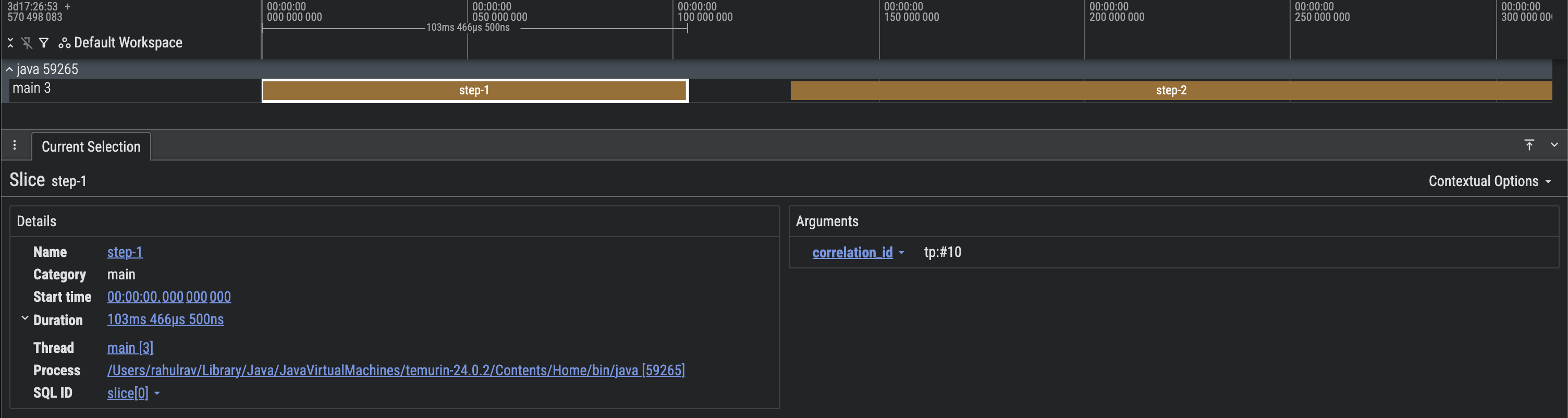

fun main() {
    val driver = createTraceDriver()
    onEvent(driver, eventId = EVENT_ID)
}

fun onEvent(driver: TraceDriver, eventId: Long) {
    driver.use {
        driver.tracer.trace(
            category = CATEGORY_MAIN,
            name = "step-1",
            metadataBlock = {
                addCorrelationId(eventId)
            }
        ) {
            Thread.sleep(100L)
        }

        Thread.sleep(20)

        driver.tracer.trace(
            category = CATEGORY_MAIN,
            name = "step-2",
            metadataBlock = {
                addCorrelationId(eventId)
            }
        ) {
            Thread.sleep(180)
        }
    }
}

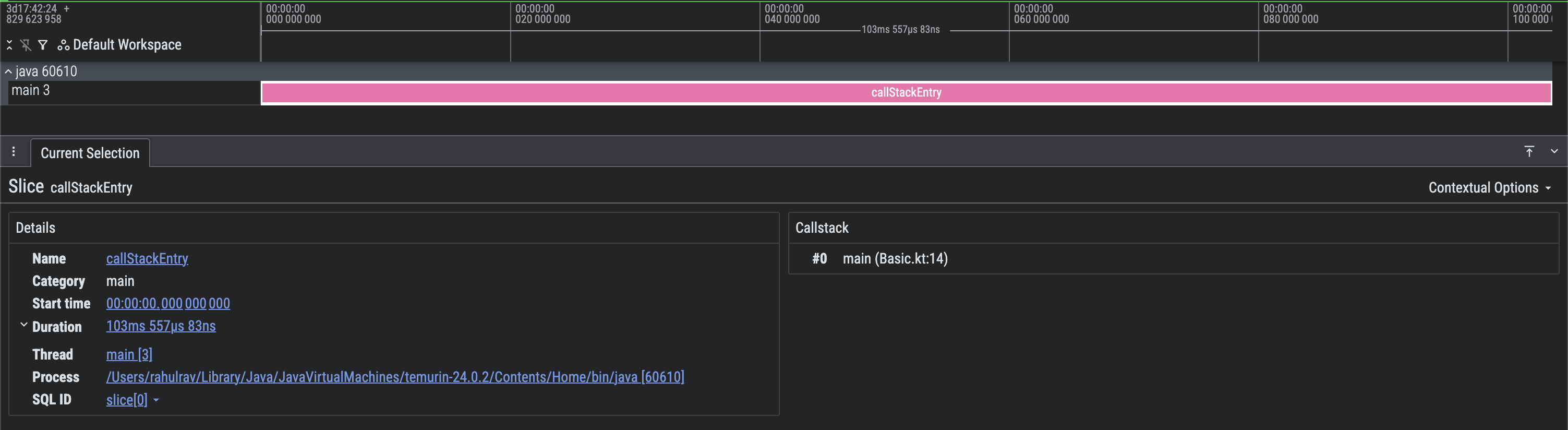

fun main() {
    val driver = createTraceDriver()
    driver.use {
        driver.tracer.trace(
            category = CATEGORY_MAIN,
            name = "callStackEntry",
            metadataBlock = {
                addCallStackEntry(
                    name = "main",
                    lineNumber = 14,
                    sourceFile = "Basic.kt"
                )
            }
        ) {
            Thread.sleep(100L)
        }
    }
}
