In-process tracing (Experimental)

The new androidx.tracing:tracing:2.0.0-alpha01 library is a low-overhead Kotlin API that allows capturing in-process trace events. These events can capture time slices and their context. The library additionally supports context propagation for Kotlin Coroutines.

The library uses the same Perfetto trace packet format that Android developers are familiar with. Also, Tracing 2.0 (unlike the 1.0.0-* APIs) supports the notion of pluggable tracing backends and sinks, so other tracing libraries can customize the output tracing format, and how context propagation works in their implementation.

Dependencies

To start tracing, you need to define the following dependencies in your build.gradle.kts.

kotlin {
  androidLibrary {
    namespace = "com.example.library"
    // ...
  }
  sourceSets {
    androidMain {
      dependencies {
        api("androidx.tracing:tracing-wire-android:2.0.0-alpha01")
        // ...
      }
    }
    jvmMain {
      dependencies {
        api("androidx.tracing:tracing-wire-desktop:2.0.0-alpha01")
        // ...
      }
    }
  }
}

Declare a dependency on androidx.tracing:tracing-wire-android:2.0.0-alpha01 if you are targeting an Android library or an application. You can use androidx.tracing:tracing-wire-desktop:2.0.0-alpha01 dependency if you are targeting the JVM.

Basic usage

A TraceSink defines how trace packets are serialized. Tracing 2.0.0 comes with an implementation of a Sink that uses the Perfetto trace packet format. A TraceDriver provides a handle to the Tracer and can be used to finalize a trace.

You can also use the TraceDriver to disable all trace points in the application, if you choose not to trace at all in some application variants. Future APIs in the TraceDriver will also allow developers to control which trace categories they are interested in capturing (or disabling when a category is noisy).

To get started, create an instance of a TraceSink and a TraceDriver.

/**
 * A [TraceSink] defines how traces are serialized.
 *
 * [androidx.tracing.wire.TraceSink] uses the `Perfetto` trace packet format.
 */
fun createSink(): TraceSink {
    val outputDirectory = File(/* path = */ "/tmp/perfetto")
    if (!outputDirectory.exists()) {
        outputDirectory.mkdirs()
    }
    // We are using the factory function defined in androidx.tracing.wire
    return TraceSink(
        sequenceId = 1,
        directory = outputDirectory
    )
}
/**
 * Creates a new instance of [androidx.tracing.TraceDriver].
 */
fun createTraceDriver(): TraceDriver {
    // We are using a factory function from androidx.tracing.wire here.
    // `isEnabled` controls whether tracing is enabled for the application.
    val driver = TraceDriver(sink = createSink(), isEnabled = true)
    return driver
}

After you have an instance of TraceDriver, obtain the Tracer which defines the entry point for all tracing APIs.

// Tracing Categories identify subsystems that are responsible
// in generating trace sections. Future APIs in `TraceDriver` will allow the
// application to specify which categories they are interested in tracing.
// This lets the application disable entire trace categories, without
// needing to disable trace instrumentation at the call sites for those
// categories.

internal const val CATEGORY_MAIN = "main"

fun main() {
    val driver = createTraceDriver()
    driver.use {
        driver.tracer.trace(category = CATEGORY_MAIN, name = "basic") {
            Thread.sleep(100L)
        }
    }
}

This generates the following trace.

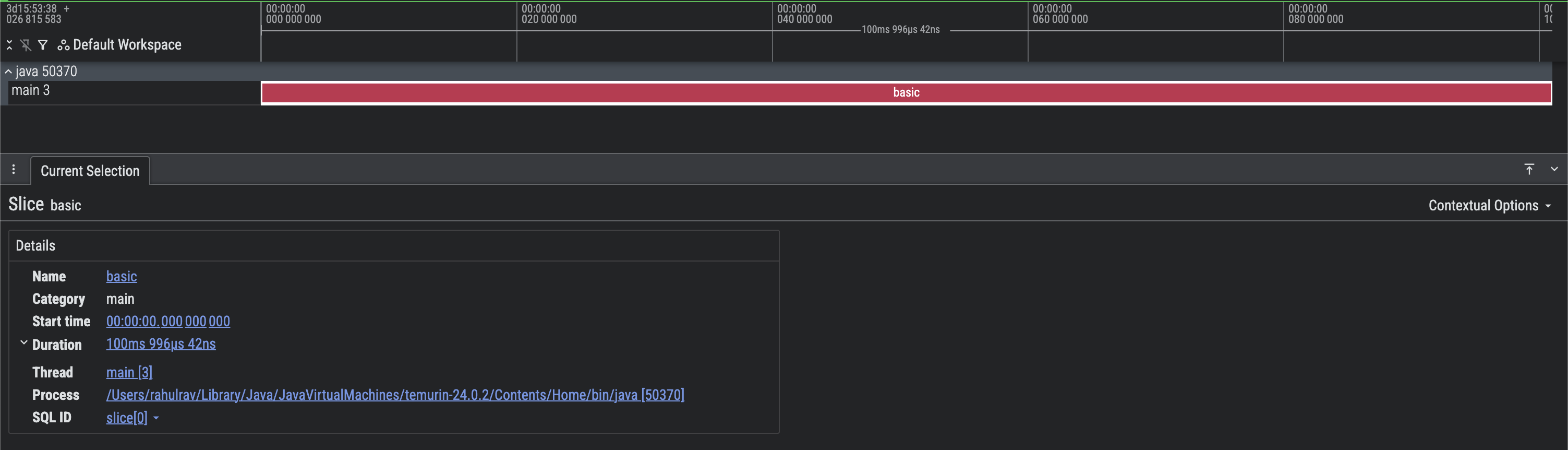

Screen capture of a basic Perfetto trace

Figure 1. Screen capture of a basic Perfetto trace.

You can see that the correct process and thread tracks are populated, and produced a single trace section basic, which ran for 100ms.

Trace sections (or slices) can be nested on the same track to represent overlapping events. Here is an example.

fun main() {
    // Initialize the tracing infrastructure to monitor app performance
    val driver = createTraceDriver()
    val tracer = driver.tracer
    driver.use {
        tracer.trace(
            category = CATEGORY_MAIN,
            name = "processImage",
        ) {
            // Load the data first, then apply the sharpen filter
            sharpen(tracer = tracer, output = loadImage(tracer))
        }
    }
}

internal fun loadImage(tracer: Tracer): ByteArray {
    return tracer.trace(CATEGORY_MAIN, "loadImage") {
        // Loads an image
        // ...
        // A placeholder
        ByteArray(0)
    }
}

internal fun sharpen(tracer: Tracer, output: ByteArray) {
    // ...
    tracer.trace(CATEGORY_MAIN, "sharpen") {
        // ...
    }
}

This generates the following trace.

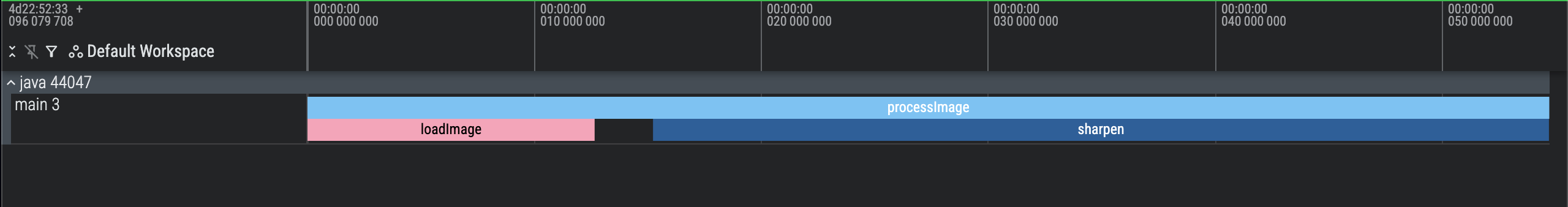

Screen capture of a basic Perfetto trace with nested sections

Figure 2. Screen capture of a basic Perfetto trace with nested sections.

You can see that there are overlapping events in the main thread track. It is very clear that processImage calls loadImage and sharpen on the same thread.

Add additional metadata in trace sections

Sometimes, it can be useful to attach additional contextual metadata to a trace slice, to get more details. Some examples of such metadata could include the nav destination that the user is on, or input arguments that might end up determining how long a function takes.

fun main() {
    val driver = createTraceDriver()
    driver.use {
        driver.tracer.trace(
            category = CATEGORY_MAIN,
            name = "basicWithContext",
            // Add additional metadata
            metadataBlock = {
                // Add key value pairs.
                addMetadataEntry("key", "value")
                addMetadataEntry("count", 1L)
            }
        ) {
            Thread.sleep(100L)
        }
    }
}

This produces the following result. Note the Arguments section contains key value pairs added when producing the slice.

Screen capture of a basic Perfetto trace with additional metadata

Figure 3. Screen capture of a basic Perfetto trace with additional metadata.

Context propagation

When using Kotlin Coroutines (or other similar frameworks that help with concurrent workloads) Tracing 2.0 supports the notion of context propagation. This is best explained by an example.

suspend fun taskOne(tracer: Tracer) {
    tracer.traceCoroutine(category = CATEGORY_MAIN, "taskOne") {
        delay(timeMillis = 100L)
    }
}

suspend fun taskTwo(tracer: Tracer) {
    tracer.traceCoroutine(category = CATEGORY_MAIN, "taskTwo") {
        delay(timeMillis = 50L)
    }
}

fun main() = runBlocking(context = Dispatchers.Default) {
    val driver = createTraceDriver()
    val tracer = driver.tracer
    driver.use {
        tracer.traceCoroutine(category = CATEGORY_MAIN, name = "main") {
            coroutineScope {
                launch { taskOne(tracer) }
                launch { taskTwo(tracer) }
            }
        }
        println("All done")
    }
}

This produces the following result.

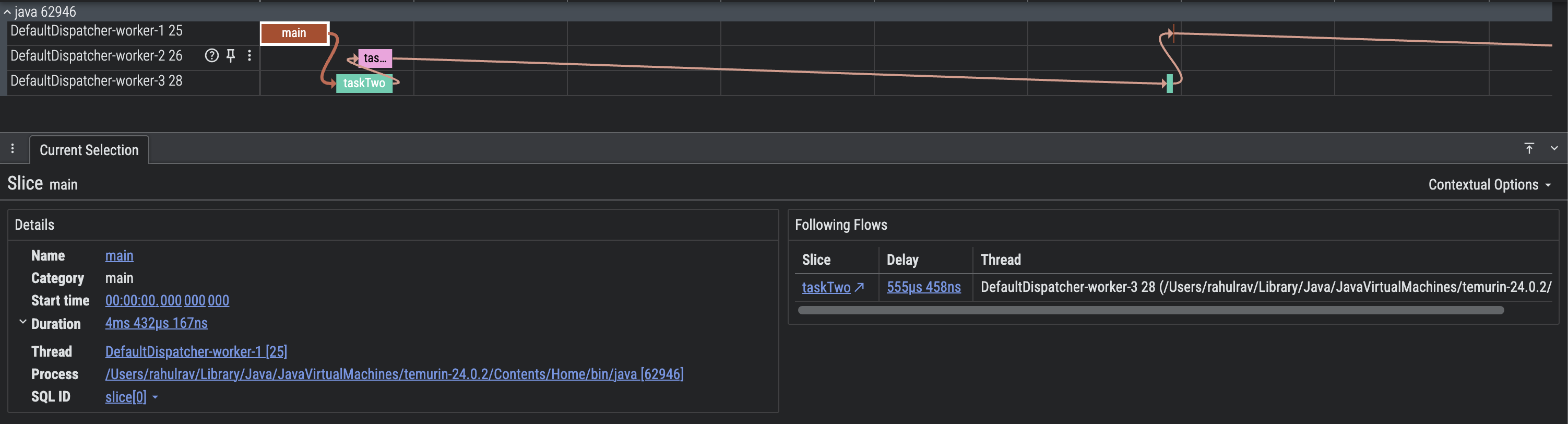

Screen capture of a Perfetto trace with context propagation

Figure 4. Screen capture of a basic Perfetto trace with context propagation.

Context Propagation makes it a lot simpler to visualize the flow of execution. You can see exactly which tasks were related (connected to others), and exactly when Threads were suspended and resumed.

For example, you can see that the slice main spawned taskOne and taskTwo. After that both threads were inactive (given that the coroutines were suspended - because of the use of delay).

Manual propagation

Sometimes when you are mixing concurrent workloads using Kotlin coroutines with instances of Java Executor it might be useful to propagate the context from one to the other. Here is an example:

fun executorTask(
    tracer: Tracer,
    token: PropagationToken,
    executor: Executor,
    callback: () -> Unit
) {
    executor.execute {
        tracer.trace(
            category = CATEGORY_MAIN,
            name = "executeTask",
            token = token,
        ) {
            // Do something
            Thread.sleep(100)
            callback()
        }
    }
}

@OptIn(DelicateTracingApi::class)
fun main() = runBlocking(context = Dispatchers.Default) {
    val driver = createTraceDriver()
    val executor = Executors.newSingleThreadExecutor()
    val tracer = driver.tracer
    driver.use {
        tracer.traceCoroutine(category = CATEGORY_MAIN, name = "main") {
            coroutineScope {
                val deferred = CompletableDeferred<Unit>()
                executorTask(
                    tracer = tracer,
                    // Obtain the propagation token from the CoroutineContext
                    token = tracer.tokenFromCoroutineContext(),
                    executor = executor,
                    callback = {
                        deferred.complete(Unit)
                    }
                )
                deferred.await()
            }
        }
        executor.shutdownNow()
    }
}

This produces the following result.

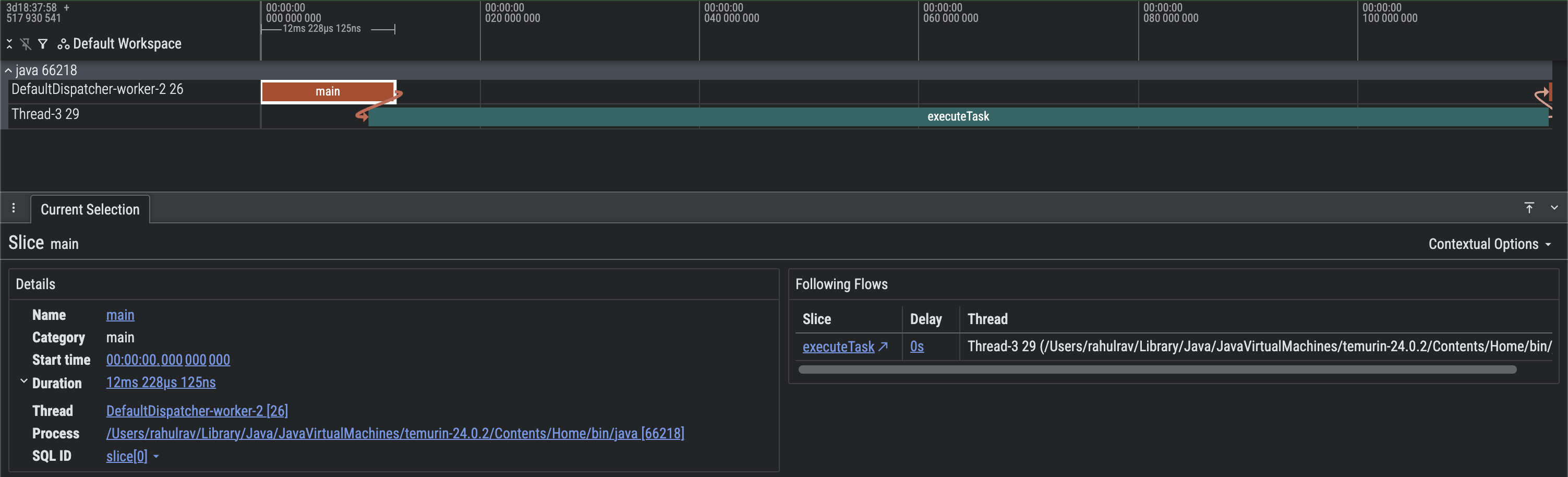

Screen capture of a Perfetto trace with manual context propagation

Figure 5. Screen capture of a basic Perfetto trace with manual context propagation.

You can see that execution started in a CoroutineContext, and subsequently switched to a Java Executor, but we were still able to use context propagation.

Combine with system traces

The new androidx.tracing does not capture information like CPU scheduling, Memory usage, and the applications interaction with the operating system in general. This is because the library provides a way to perform very low overhead in-process tracing.

However, it is extremely trivial to merge system traces with in-process traces and visualize them as a single trace if needed. This is because Perfetto UI supports visualizing multiple trace files from a device on a unified timeline.

To do this, you can start a system tracing session using Perfetto UI by following instructions here.

You can also record in-process trace events using the Tracing 2.0 API, while system tracing is turned on. Once you have both trace files you can use the Open Multiple Trace Files option in Perfetto.

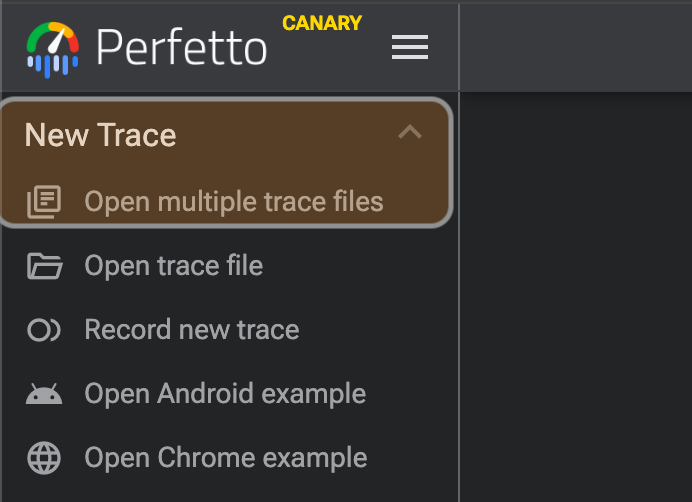

Opening multiple trace files in Perfetto UI

Figure 6. Opening multiple trace files in Perfetto UI.

Advanced workflows

Correlate slices

Sometimes, it is useful to attribute slices in a trace to a more high level user action or a system event. For example to attribute all the slices that correspond to some background work as part of a notification, you could do something like:

fun main() {
    val driver = createTraceDriver()
    onEvent(driver, eventId = EVENT_ID)
}

fun onEvent(driver: TraceDriver, eventId: Long) {
    driver.use {
        driver.tracer.trace(
            category = CATEGORY_MAIN,
            name = "step-1",
            metadataBlock = {
                addCorrelationId(eventId)
            }
        ) {
            Thread.sleep(100L)
        }

        Thread.sleep(20)

        driver.tracer.trace(
            category = CATEGORY_MAIN,
            name = "step-2",
            metadataBlock = {
                addCorrelationId(eventId)
            }
        ) {
            Thread.sleep(180)
        }
    }
}

This produces the following result.

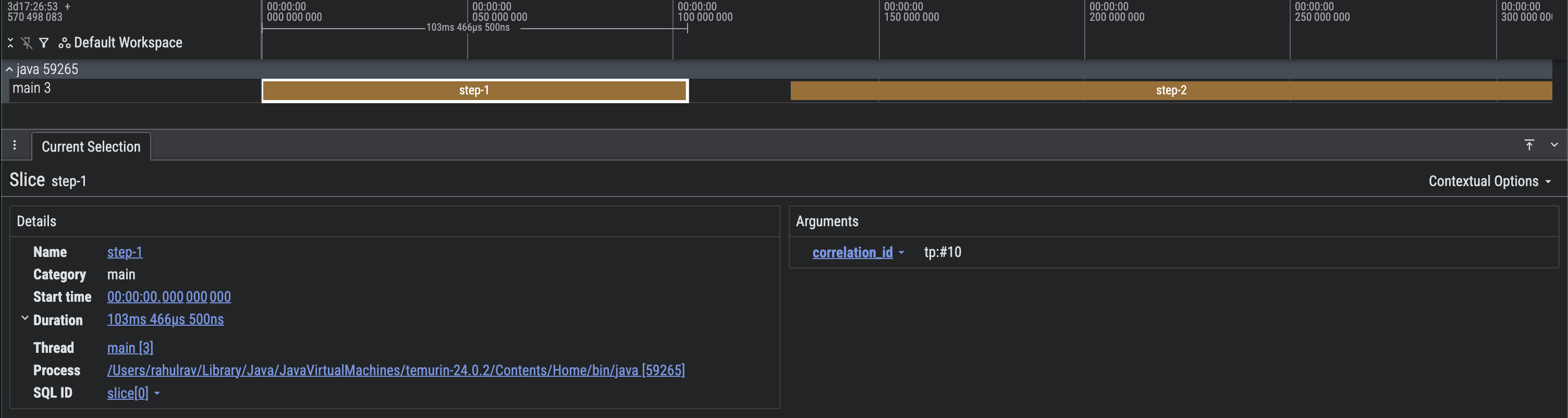

Screen capture of a Perfetto trace with correlated slices

Figure 7. Screen capture of a Perfetto trace with correlated slices.

Add call stack information

Host side tools (compiler plugins, annotation processors etc.) can additionally choose to embed call stack information into a trace, to make it convenient to locate the file, class, or method responsible for producing a trace section in a trace.

fun main() {
    val driver = createTraceDriver()
    driver.use {
        driver.tracer.trace(
            category = CATEGORY_MAIN,
            name = "callStackEntry",
            metadataBlock = {
                addCallStackEntry(
                    name = "main",
                    lineNumber = 14,
                    sourceFile = "Basic.kt"
                )
            }
        ) {
            Thread.sleep(100L)
        }
    }
}

This produces the following result.

Screen capture of a Perfetto trace with call stack information

Figure 8. Screen capture of a Perfetto trace with call stack information.
