Canonical layouts are proven, versatile layouts that provide an optimal user experience on a variety of form factors.
The canonical layouts support small screen phones as well as tablets, foldables, and ChromeOS devices. Derived from Material Design guidance, the layouts are aesthetic as well as functional.
The Android framework includes specialized components that make implementation of the layouts straightforward and reliable.
The canonical layouts create engaging, productivity‑enhancing UIs that form the foundation of great apps.

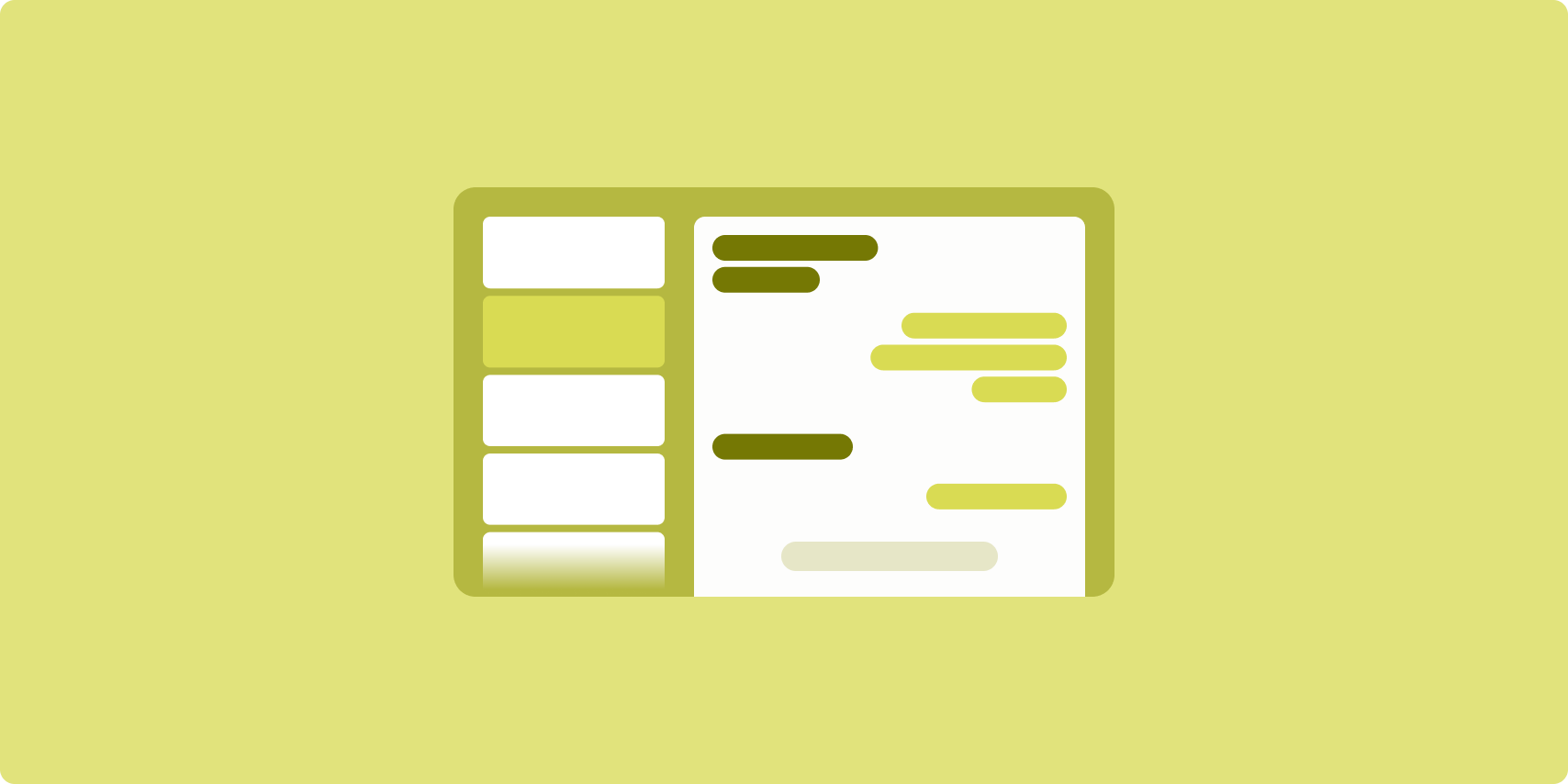

List-detail
The list-detail layout enables users to explore lists of items that have descriptive, explanatory, or other supplementary information—the item detail.
The layout divides the app window into two side-by-side panes: one for the list, one for the detail. Users select items from the list to display the item detail. Deep links in the detail reveal additional content in the detail pane.
Expanded-width displays (see Use window size classes) accommodate both the list and detail at the same time. Selection of a list item updates the detail pane to show the related content for the selected item.
Medium- and compact-width displays show either the list or the detail, depending on user interaction with the app. When just the list is visible, selection of a list item displays the detail in place of the list. When just the detail is visible, pressing the back button redisplays the list.
Configuration changes such as device orientation changes or app window size changes can change the display's window size class. A list‑detail layout responds accordingly, preserving app state:
- If an expanded-width display showing both the list and detail panes narrows to medium or compact, the detail pane remains visible and the list pane is hidden
- If a medium- or compact-width display has just the detail pane visible and the window size class widens to expanded, the list and detail are shown together, and the list indicates that the item corresponding to the content in the detail pane is selected
- If a medium- or compact-width display has just the list pane visible and widens to expanded, the list and a placeholder detail pane are shown together
List-detail is ideal for messaging apps, contact managers, file browsers, or any app where the content can be organized as a list of items that reveal additional information.
Implementation
Compose'un bildirimsel paradigması, liste ve ayrıntı bölmelerinin aynı anda mı (genişlik pencere boyutu sınıfı genişletildiğinde) yoksa yalnızca liste veya ayrıntı bölmesinin mi (genişlik pencere boyutu sınıfı orta ya da kompakt olduğunda) gösterileceğini belirleyen pencere boyutu sınıf mantığını destekler.
Tek yönlü veri akışı sağlamak için mevcut pencere boyutu sınıfı ve seçili liste öğesinin ayrıntıları (varsa) dahil olmak üzere tüm durumu kaldırın. Böylece tüm bileşenler verilere erişebilir ve doğru şekilde oluşturulabilir.
Küçük pencere boyutlarında yalnızca ayrıntı bölmesini gösterirken ayrıntı bölmesini kaldırıp yalnızca liste bölmesini görüntülemek için bir BackHandler ekleyin. İşleyici, pencere boyutu sınıfına ve seçilen ayrıntı durumuna bağlı olduğundan BackHandler, uygulamada genel gezinmenin bir parçası değildir.
Örnek uygulama için Liste-ayrıntı oluşturma örneğine bakın.
Feed
A feed layout arranges equivalent content elements in a configurable grid for quick, convenient viewing of a large amount of content.
Size and position establish relationships among the content elements.
Content groups are created by making elements the same size and positioning them together. Attention is drawn to elements by making them larger than nearby elements.
Cards and lists are common components of feed layouts.
A feed layout supports displays of almost any size because the grid can adapt from a single, scrolling column to a multi‑column scrolling feed of content.
Feeds are especially well suited for news and social media apps.
Implementation
A feed consists of a large number of content elements in a vertical scrolling container laid out in a grid. Lazy lists efficiently render a large number of items in columns or rows. Lazy grids render items in grids, supporting configuration of the item sizes and spans.
Configure the columns of the grid layout based on the available display area to set the minimum allowable width for grid items. When defining grid items, adjust column spans to emphasize some items over others.
For section headers, dividers, or other items designed to occupy the full width
of the feed, use maxLineSpan to take up the full width of the layout.
On compact-width displays that don't have enough space to show more than one
column, LazyVerticalGrid behaves just like a LazyColumn.
For an example implementation, see the Feed with Compose sample.

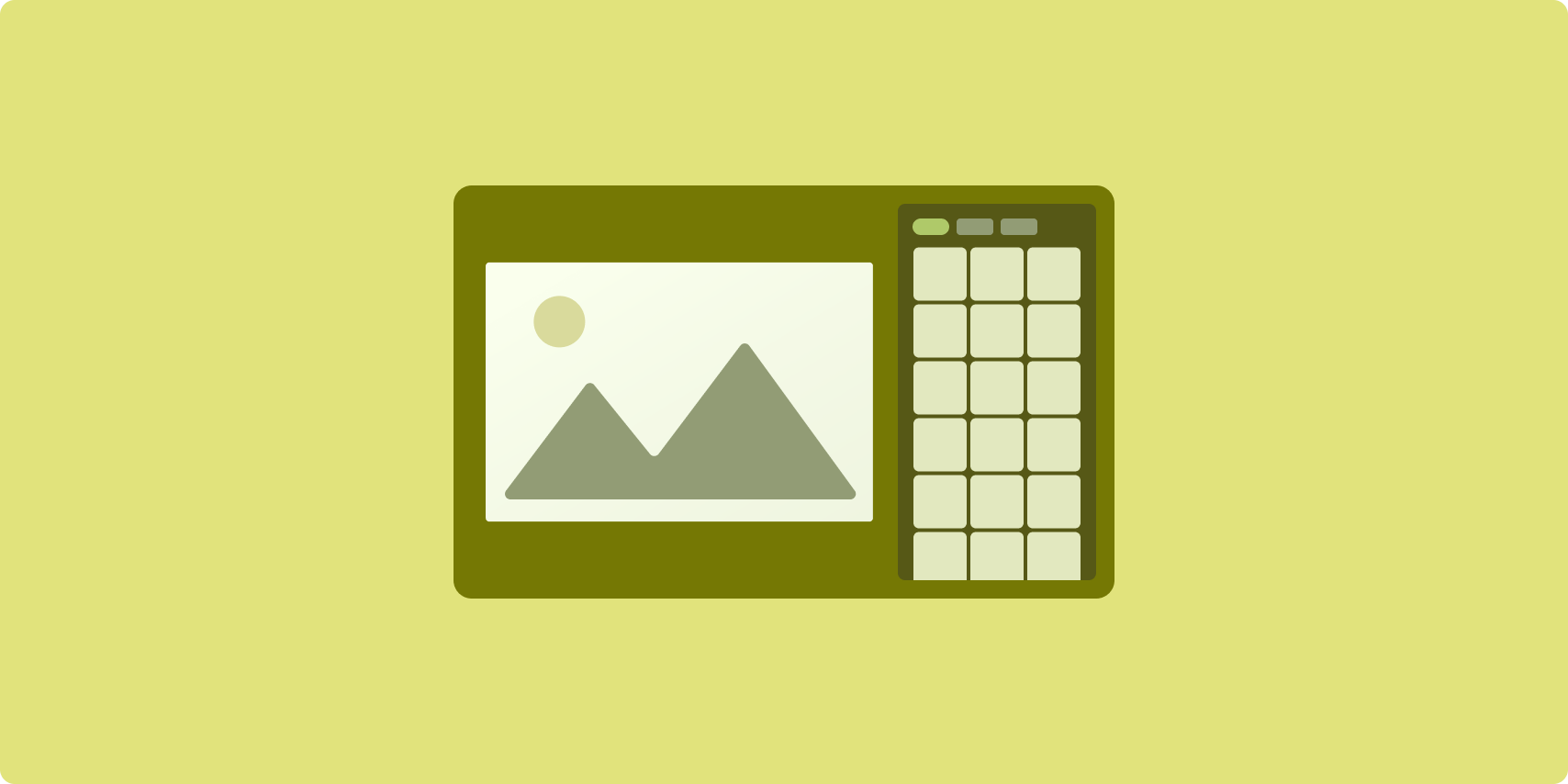

Supporting pane
Supporting pane layout organizes app content into primary and secondary display areas.
The primary display area occupies the majority of the app window (typically about two thirds) and contains the main content. The secondary display area is a pane that takes up the remainder of the app window and presents content that supports the main content.
Supporting pane layouts work well on expanded-width displays (see Use window size classes) in landscape orientation. Medium- or compact‑width displays support showing both the primary and secondary display areas if the content is adaptable to narrower display spaces, or if the additional content can be initially hidden in a bottom or side sheet accessible by means of a control such as a menu or button.
A supporting pane layout differs from a list‑detail layout in the relationship of the primary and secondary content. Secondary pane content is meaningful only in relation to the primary content; for example, a supporting pane tool window is irrelevant by itself. The supplementary content in the detail pane of a list‑detail layout, however, is meaningful even without the primary content, for example, the description of a product from a product listing.
Use cases for supporting pane include:
- Productivity apps: A document or spreadsheet accompanied by reviewer comments in a supporting pane
- Media apps: A streaming video complemented by a list of related videos in a supporting pane, or the depiction of an album of music supplemented with a playlist
- Search and reference apps: A query input form with results in a supporting pane
Implementation
Oluşturma, hem ana içeriği hem de destekleyici içeriği aynı anda gösterip göstermeyeceğiniz veya destekleyici içeriği alternatif bir yere yerleştirip yerleştirmeyeceğinizi belirlemenize olanak tanıyan pencere boyutu sınıf mantığını destekler.
Mevcut pencere boyutu sınıfı ve ana içerik ile destekleyici içerikteki verilerle ilgili bilgiler de dahil olmak üzere tüm durumu kaldırın.
Kompakt genişlikteki ekranlarda, destekleyici içeriği ana içeriğin altına veya alt sayfaya yerleştirin. Orta ve genişletilmiş genişliklerde, destekleyici içeriği ana içeriğin yanına, içeriğe ve mevcut alana göre uygun şekilde boyutlandırılmış olarak yerleştirin. Orta genişlik için görüntüleme alanını ana içerik ve destekleyici içerik arasında eşit olarak bölün. Geniş genişlik için alanın% 70'ini ana içeriğe, %30'unu destekleyici içeriğe ayırın.
Örnek uygulama için Oluştur ile destekleyici panel örneğine bakın.
Additional resources
- Material Design — Canonical layouts
