맞춤 햅틱 효과 만들기

val timings: LongArray = longArrayOf(
    50, 50, 50, 50, 50, 100, 350, 25, 25, 25, 25, 200
)
val amplitudes: IntArray = intArrayOf(
    33, 51, 75, 113, 170, 255, 0, 38, 62, 100, 160, 255
)
val repeatIndex = -1 // Don't repeat.

vibrator.vibrate(
    VibrationEffect.createWaveform(
        timings, amplitudes, repeatIndex
    )
)
CustomHapticEffects.kt

fun startVibrating() {
    val timings: LongArray = longArrayOf(50, 50, 100, 50, 50)
    val amplitudes: IntArray = intArrayOf(64, 128, 255, 128, 64)
    val repeat = 1 // Repeat from the second entry, index = 1.
    val repeatingEffect: VibrationEffect = VibrationEffect.createWaveform(
        timings, amplitudes, repeat
    )
    // repeatingEffect can be used in multiple places.

    vibrator.vibrate(repeatingEffect)
}

fun stopVibrating() {
    vibrator.cancel()
}
CustomHapticEffects.kt

if (vibrator.hasAmplitudeControl()) {
    vibrator.vibrate(
        VibrationEffect.createWaveform(
            smoothTimings, amplitudes, smoothRepeatIdx
        )
    )
} else {
    vibrator.vibrate(
        VibrationEffect.createWaveform(
            onOffTimings, onOffRepeatIdx
        )
    )
}
CustomHapticEffects.kt

vibrator.vibrate(
    VibrationEffect.startComposition().addPrimitive(
        VibrationEffect.Composition.PRIMITIVE_SLOW_RISE
    ).addPrimitive(
        VibrationEffect.Composition.PRIMITIVE_CLICK
    ).compose()
)
CustomHapticEffects.kt

val delayMs = 100
vibrator.vibrate(
    VibrationEffect.startComposition().addPrimitive(
        VibrationEffect.Composition.PRIMITIVE_SPIN, 0.8f
    ).addPrimitive(
        VibrationEffect.Composition.PRIMITIVE_SPIN, 0.6f
    ).addPrimitive(
        VibrationEffect.Composition.PRIMITIVE_THUD, 1.0f, delayMs
    ).compose()
)
CustomHapticEffects.kt

val primitive = VibrationEffect.Composition.PRIMITIVE_LOW_TICK

if (vibrator.areAllPrimitivesSupported(primitive)) {
    vibrator.vibrate(
        VibrationEffect.startComposition()
            .addPrimitive(primitive).compose()
    )
} else {
    // Play a predefined effect or custom pattern as a fallback.
}
CustomHapticEffects.kt

val primitives: IntArray = intArrayOf(
    VibrationEffect.Composition.PRIMITIVE_LOW_TICK,
    VibrationEffect.Composition.PRIMITIVE_TICK,
    VibrationEffect.Composition.PRIMITIVE_CLICK
)
val supported: BooleanArray = vibrator.arePrimitivesSupported(*primitives)
CustomHapticEffects.kt

@Composable
fun ResistScreen() {
    // Control variables for the dragging of the indicator.
    var isDragging by remember { mutableStateOf(false) }
    var dragOffset by remember { mutableFloatStateOf(0f) }

    // Only vibrates while the user is dragging
    LaunchedEffect(isDragging) {
        // Continuously run the effect for vibration to occur even when the view
        // is not being drawn, when user stops dragging midway through gesture.
        while (isDragging) {
            // Calculate the interval inversely proportional to the drag offset.
            val vibrationInterval = calculateVibrationInterval(dragOffset)
            // Calculate the scale directly proportional to the drag offset.
            val vibrationScale = calculateVibrationScale(dragOffset)

            delay(vibrationInterval)
            vibrator.vibrate(
                VibrationEffect.startComposition().addPrimitive(
                    VibrationEffect.Composition.PRIMITIVE_LOW_TICK,
                    vibrationScale
                ).compose()
            )
        }
    }

    Column(
        Modifier
            .draggable(
                orientation = Orientation.Vertical,
                onDragStarted = {
                    isDragging = true
                },
                onDragStopped = {
                    isDragging = false
                },
                state = rememberDraggableState { delta ->
                    dragOffset += delta
                }
            )
    ) {
        // Build the indicator UI based on how much the user has dragged it.
        ResistIndicator(dragOffset)
    }
}
CustomHapticEffects.kt

enum class ExpandShapeState {
    Collapsed,
    Expanded
}

@Composable
fun ExpandScreen() {
    // Control variable for the state of the indicator.
    var currentState by remember { mutableStateOf(ExpandShapeState.Collapsed) }

    // Animation between expanded and collapsed states.
    val transitionData = updateTransitionData(currentState)

    Column(
        Modifier
            .clickable(
                onClick = {
                    if (currentState == ExpandShapeState.Collapsed) {
                        currentState = ExpandShapeState.Expanded
                        vibrator.vibrate(
                            VibrationEffect.startComposition().addPrimitive(
                                VibrationEffect.Composition.PRIMITIVE_SLOW_RISE,
                                0.3f
                            ).addPrimitive(
                                VibrationEffect.Composition.PRIMITIVE_QUICK_FALL,
                                0.3f
                            ).compose()
                        )
                    } else {
                        currentState = ExpandShapeState.Collapsed
                        vibrator.vibrate(
                            VibrationEffect.startComposition().addPrimitive(
                                VibrationEffect.Composition.PRIMITIVE_SLOW_RISE
                            ).compose()
                        )
                    }
                }
            )
    ) {
        // Build the indicator UI based on the current state.
        ExpandIndicator(transitionData)
    }
}
CustomHapticEffects.kt

@Composable
fun WobbleScreen() {
    // Control variables for the dragging and animating state of the elastic.
    var dragDistance by remember { mutableFloatStateOf(0f) }
    var isWobbling by remember { mutableStateOf(false) }

    // Use drag distance to create an animated float value behaving like a spring.
    val dragDistanceAnimated by animateFloatAsState(
        targetValue = if (dragDistance > 0f) dragDistance else 0f,
        animationSpec = spring(
            dampingRatio = Spring.DampingRatioHighBouncy,
            stiffness = Spring.StiffnessMedium
        ),
        // The spring ends on its target. An end value of 0f means that the
        // shape is back at rest, so the wobble is over.
        finishedListener = { endValue -> if (endValue == 0f) isWobbling = false },
    )

    LaunchedEffect(isWobbling) {
        while (isWobbling) {
            val displacement = dragDistanceAnimated / MAX_DRAG_DISTANCE
            // Use some sort of minimum displacement so the final few frames
            // of animation don't generate a vibration.
            if (displacement > SPIN_MIN_DISPLACEMENT) {
                vibrator.vibrate(
                    VibrationEffect.startComposition().addPrimitive(
                        VibrationEffect.Composition.PRIMITIVE_SPIN,
                        nextSpinScale(displacement)
                    ).addPrimitive(
                        VibrationEffect.Composition.PRIMITIVE_SPIN,
                        nextSpinScale(displacement)
                    ).compose()
                )
            }
            // Delay the next check for a sufficient duration until the
            // current composition finishes. Note that you can use
            // Vibrator.getPrimitiveDurations API to calculcate the delay.
            delay(VIBRATION_DURATION)
        }
    }

    Box(
        Modifier
            .fillMaxSize()
            .draggable(
                onDragStopped = {
                    // Wobble only if the shape is far enough from rest to vibrate.
                    // It then springs back to 0f, and the finishedListener ends
                    // the wobble.
                    val displacement = dragDistanceAnimated / MAX_DRAG_DISTANCE
                    isWobbling = displacement > SPIN_MIN_DISPLACEMENT
                    dragDistance = 0f
                },
                orientation = Orientation.Vertical,
                state = rememberDraggableState { delta ->
                    isWobbling = false
                    dragDistance += delta
                }
            )
    ) {
        // Draw the wobbling shape using the animated spring-like value. The
        // lambda defers the read to the draw phase, so the animation doesn't
        // recompose this screen on every frame.
        WobbleShape { dragDistanceAnimated }
    }
}

// Calculate a random scale for each spin to vary the full effect.
fun nextSpinScale(displacement: Float): Float {
    // Generate a random offset in the range [-0.1, +0.1] to be added to the
    // vibration scale so the spin effects have slightly different values.
    val randomOffset: Float = Random.Default.nextFloat() * 0.2f - 0.1f
    return (displacement + randomOffset).absoluteValue.coerceIn(0f, 1f)
}
CustomHapticEffects.kt

enum class BallPosition {
    Start,
    End
}

@Composable
fun BounceScreen() {
    // Control variable for the state of the ball.
    var ballPosition by remember { mutableStateOf(BallPosition.Start) }
    // Plain holder for the bounce count. It's read only in the effect and in
    // the click handler, never in composition, so it needs no snapshot state.
    val bounceCount = remember { intArrayOf(0) }

    // Animation for the bouncing ball.
    val transitionData = updateTransitionData(ballPosition)
    val collisionData = updateCollisionData(transitionData)

    // Ball is about to contact floor. The effect runs only when the collision
    // state changes, so it vibrates once per collision. Nothing here suspends,
    // so a keyed SideEffect does the job without launching a coroutine.
    SideEffect(collisionData.collisionWithFloor) {
        if (collisionData.collisionWithFloor) {
            val vibrationScale = 0.7.pow(bounceCount[0]++).toFloat()
            vibrator.vibrate(
                VibrationEffect.startComposition().addPrimitive(
                    VibrationEffect.Composition.PRIMITIVE_THUD,
                    vibrationScale
                ).compose()
            )
        }
    }

    Box(
        Modifier
            .fillMaxSize()
            .clickable {
                if (transitionData.isAtStart) {
                    ballPosition = BallPosition.End
                } else {
                    ballPosition = BallPosition.Start
                    bounceCount[0] = 0
                }
            },
    ) {
        // Build the ball UI based on the current state.
        BouncingBall(transitionData)
    }
}
CustomHapticEffects.kt

vibrator.vibrate(
    VibrationEffect.BasicEnvelopeBuilder()
        .setInitialSharpness(0.0f)
        .addControlPoint(1.0f, 1.0f, 500)
        .addControlPoint(0.0f, 1.0f, 100)
        .build()
)
CustomHapticEffects.kt

vibrator.vibrate(
    VibrationEffect.WaveformEnvelopeBuilder()
        .addControlPoint(1.0f, 60f, 50)
        .addControlPoint(1.0f, 120f, 100)
        .addControlPoint(1.0f, 120f, 200)
        .addControlPoint(0.0f, 60f, 50)
        .build()
)
CustomHapticEffects.kt

@Composable

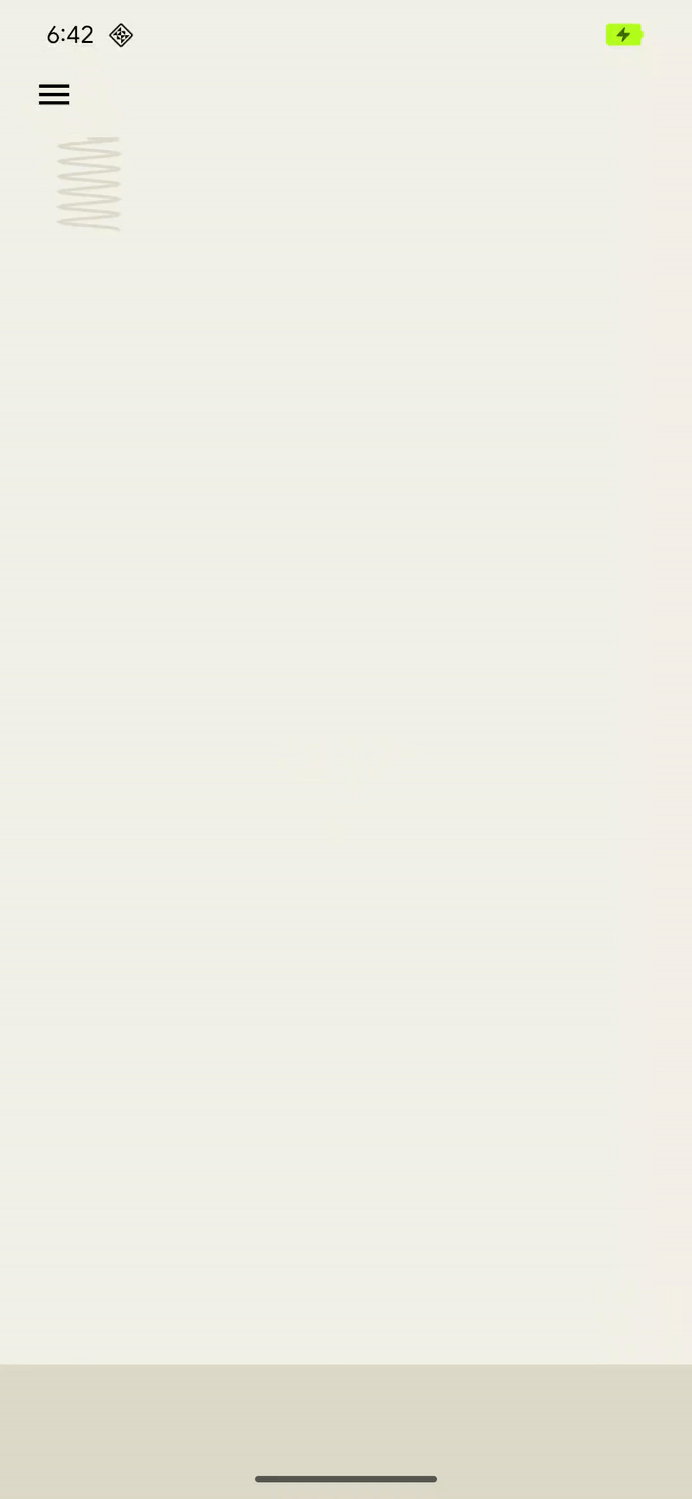

fun BouncingSpringAnimation() {
    // The spring's height above the floor: 1f is the drop height, 0f is the floor.
    val springHeight = remember { Animatable(1f) }
    var isAnimating by remember { mutableStateOf(true) }

    LaunchedEffect(isAnimating) {
        if (!isAnimating) return@LaunchedEffect
        springHeight.snapTo(1f)

        // Each bounce reaches a fraction of the previous height.
        var bounceHeight = 1f
        while (bounceHeight > MIN_BOUNCE_HEIGHT) {
            // Fall to the floor, speeding up like a falling object. A fall from
            // a greater height takes longer.
            val fallDurationMs = (DROP_DURATION_MS * sqrt(bounceHeight)).toInt()
            springHeight.animateTo(0f, tween(fallDurationMs, easing = EaseInQuad))

            // The spring hits the floor: play a "boing" envelope effect that fades
            // out. A higher bounce gives a stronger and sharper vibration.
            vibrator.vibrate(
                VibrationEffect.BasicEnvelopeBuilder()
                    // Starting from zero sharpness here, will simulate a smoother
                    // "boing" effect.
                    .setInitialSharpness(0f)
                    // Add a control point to reach the target intensity and
                    // sharpness very quickly.
                    .addControlPoint(bounceHeight, bounceHeight * MAX_SHARPNESS, 20L)
                    // Add a control point to fade out the vibration intensity while
                    // maintaining sharpness.
                    .addControlPoint(0f, bounceHeight * MAX_SHARPNESS, fallDurationMs.toLong())
                    .build()
            )

            // Bounce back up to a lower height, slowing down like a thrown object.
            // When the next bounce is too small, the spring stays on the floor.
            bounceHeight *= BOUNCE_DAMPING
            if (bounceHeight > MIN_BOUNCE_HEIGHT) {
                val riseDurationMs = (DROP_DURATION_MS * sqrt(bounceHeight)).toInt()
                springHeight.animateTo(bounceHeight, tween(riseDurationMs, easing = EaseOutQuad))
            }
        }
        isAnimating = false
    }

    Box(
        modifier = Modifier
            .fillMaxSize()
            .clickable(enabled = !isAnimating) { isAnimating = true }
            .drawBehind {
                // Read the height in the draw phase, and scale it to the distance
                // between the top of the box and the floor.
                val floorTop = size.height - FLOOR_HEIGHT.toPx()
                val dropDistance = floorTop - SPRING_HEIGHT.toPx()
                drawSpring(topY = dropDistance * (1f - springHeight.value))
                drawFloor(top = floorTop)
            }
    ) {
        if (!isAnimating) {
            Text("Tap to restart", Modifier.align(Alignment.Center))
        }
    }
}
CustomHapticEffects.kt

@Composable
fun RocketLaunchAnimation() {
    var isLaunched by remember { mutableStateOf(false) }
    val animation = remember { Animatable(0f) }

    val animationDuration = 3000
    LaunchedEffect(isLaunched) {
        if (isLaunched) {
            animation.animateTo(
                1.2f, // Overshoot so that the rocket goes off the screen.
                animationSpec = tween(
                    durationMillis = animationDuration,
                    // Applies an easing curve with a slow start and rapid acceleration
                    // towards the end.
                    easing = CubicBezierEasing(1f, 0f, 0.75f, 1f)
                )
            )
            animation.snapTo(0f)
            isLaunched = false
        }
    }

    Canvas(
        modifier = Modifier
            .fillMaxSize()
            .clickable {
                if (!isLaunched) {
                    // Play vibration with same duration as the animation, using 70% of
                    // the time for the rise of the vibration, to match the easing curve
                    // defined previously.
                    playVibration(vibrator, animationDuration.toLong(), 0.7f)
                    isLaunched = true
                }
            }
            .background(colorResource(R.color.background))
    ) {
        // Read the animation in the draw phase, and scale it to the canvas height.
        drawRocket(size.height * animation.value)
    }
}

private fun playVibration(
    vibrator: Vibrator,
    totalDurationMs: Long,
    riseBias: Float,
    minOutputAccelerationGs: Float = 0.1f,
) {
    require(riseBias in 0f..1f) { "Rise bias must be between 0 and 1." }

    if (!vibrator.areEnvelopeEffectsSupported()) {
        return
    }

    val resonantFrequency = vibrator.resonantFrequency
    if (resonantFrequency.isNaN()) {
        // Device doesn't have or expose a resonant frequency.
        return
    }

    val startFrequency = vibrator.frequencyProfile?.getFrequencyRange(minOutputAccelerationGs)?.lower ?: return

    if (startFrequency >= resonantFrequency) {
        // Vibrator can't generate the minimum required output at lower frequencies.
        return
    }

    val minDurationMs = vibrator.envelopeEffectInfo.minControlPointDurationMillis
    val rampUpDurationMs = (riseBias * totalDurationMs).toLong() - minDurationMs
    val rampDownDurationMs = totalDurationMs - rampUpDurationMs - minDurationMs

    vibrator.vibrate(
        VibrationEffect.WaveformEnvelopeBuilder()
            // Quickly reach the target output at the start frequency
            .addControlPoint(0.1f, startFrequency, minDurationMs)
            .addControlPoint(0.1f, resonantFrequency, rampUpDurationMs)
            .addControlPoint(0.1f, startFrequency, rampDownDurationMs)
            // Controlled ramp down to zero to avoid ringing after the vibration.
            .addControlPoint(0.0f, startFrequency, minDurationMs)
            .build()
    )
}
CustomHapticEffects.kt

private fun createEnvelopeEffect(
    beatParameters: List<BeatParameter>
): VibrationEffect =
    VibrationEffect.WaveformEnvelopeBuilder()
        .apply {
            repeat(beatParameters.getNumBeats()) {
                // First pulse chirp
                addControlPoint(
                    beatParameters.getFirstPulseAmplitude(),
                    beatParameters.getFirstPulseStartFreq(),
                    ENVELOPE_RAMP_DURATION_MILLIS,
                )
                addControlPoint(
                    beatParameters.getFirstPulseAmplitude(),
                    beatParameters.getFirstPulseEndFreq(),
                    beatParameters.getFirstPulseDurationMillis().toLong(),
                )
                addControlPoint(
                    0f,
                    beatParameters.getFirstPulseEndFreq(),
                    ENVELOPE_RAMP_DURATION_MILLIS,
                )

                // Delay between first and second pulse
                addControlPoint(
                    0f,
                    beatParameters.getFirstPulseEndFreq(),
                    beatParameters.getFirstToSecondPulseDelayMillis().toLong(),
                )

                // Second pulse
                addControlPoint(
                    beatParameters.getSecondPulseAmplitude(),
                    beatParameters.getSecondPulseFreq(),
                    ENVELOPE_RAMP_DURATION_MILLIS,
                )
                addControlPoint(
                    beatParameters.getSecondPulseAmplitude(),
                    beatParameters.getSecondPulseFreq(),
                    (1_000 / (2f * beatParameters.getSecondPulseFreq())).toLong(),
                )
                addControlPoint(
                    0f,
                    beatParameters.getSecondPulseFreq(),
                    ENVELOPE_RAMP_DURATION_MILLIS,
                )
                addControlPoint(
                    0f,
                    beatParameters.getSecondPulseFreq(),
                    beatParameters.getBeatDelayMillis().toLong(),
                )
            }
        }
        .build()

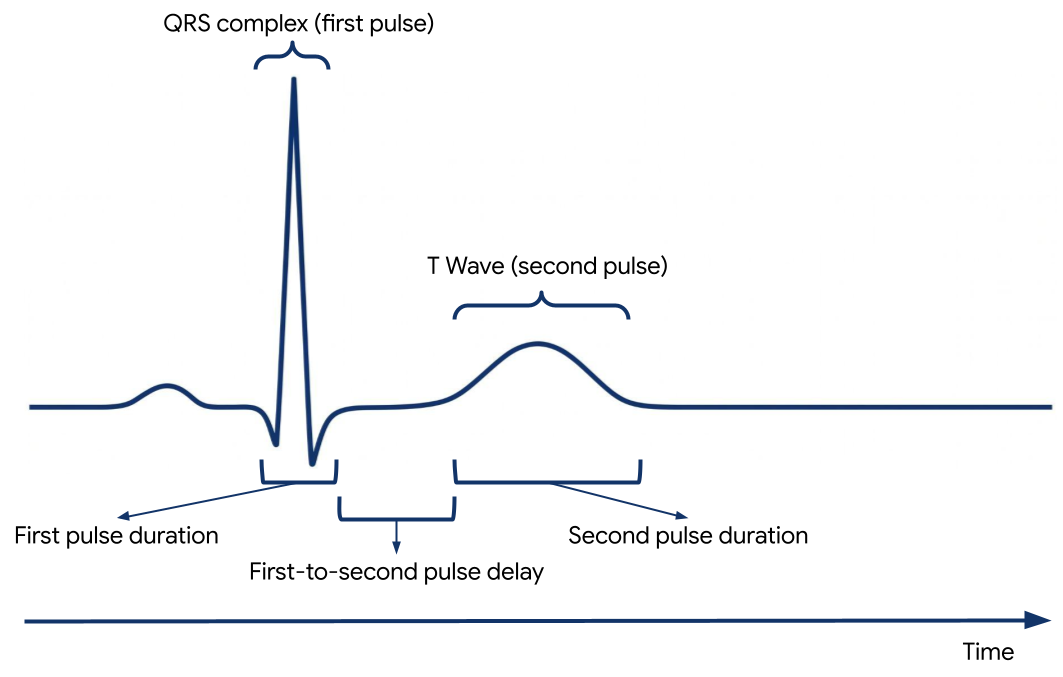

/** A parameter of a haptic beat effect that represents an ECG signal parameter */
data class BeatParameter(
    val description: String = "",
    val value: Float = 0f,
    val range: ClosedFloatingPointRange<Float> = 0f..1f,
    val steps: Int = 0,
    val isFrequencyType: Boolean = false,
)
CustomHapticEffects.kt
