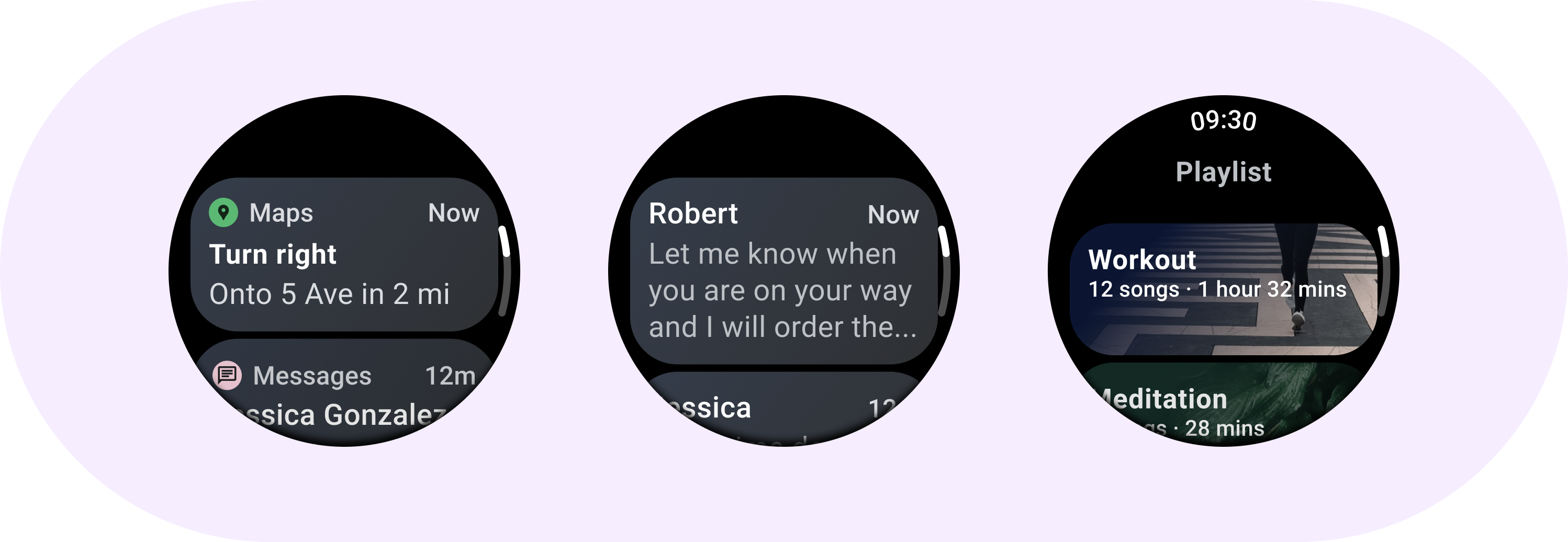

The Card
component contains content and actions about a single subject.
Anatomy
A card component only has a single slot. Cards can contain icons, images
or labels, are customizable.
By default, cards are rectangular with rounded corners and a gradient
background. Set the maximum height of your card to 60% to ensure that it's fully displayed on the screen because circular displays can clip up to 20% of the top and bottom of the screen.

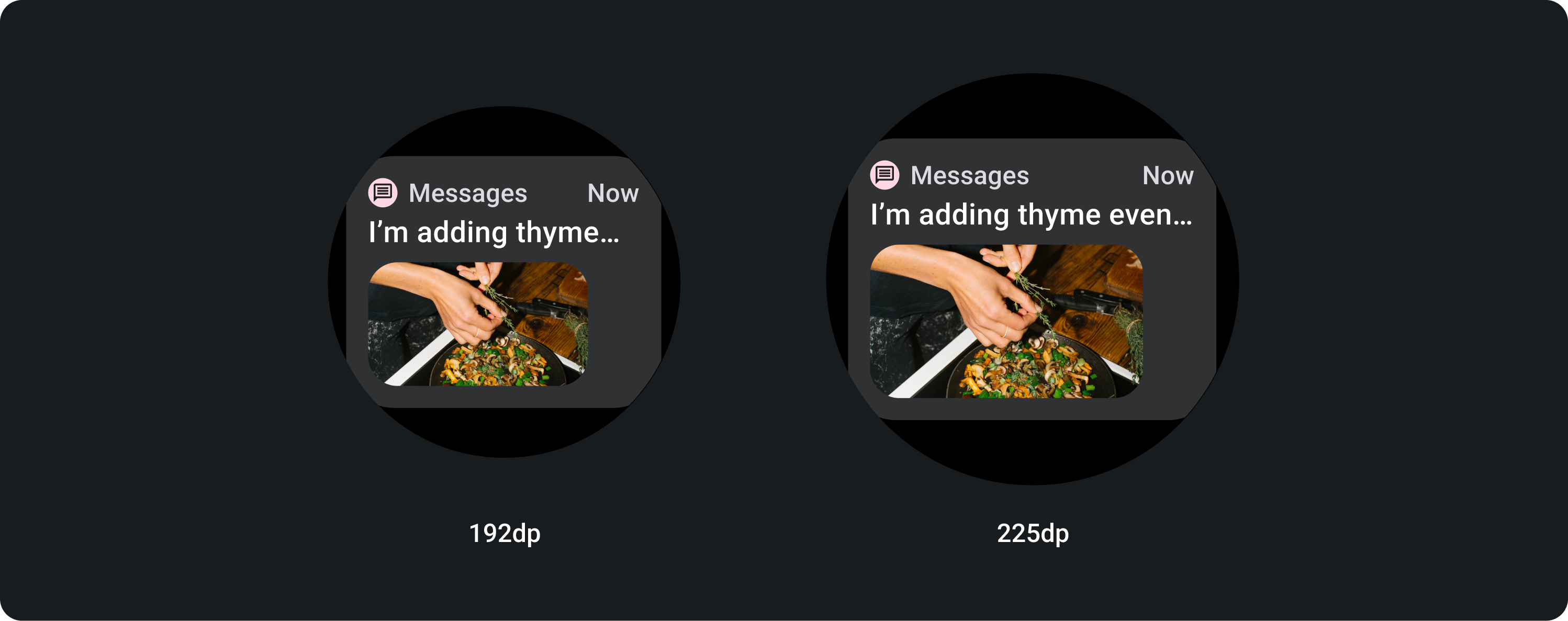

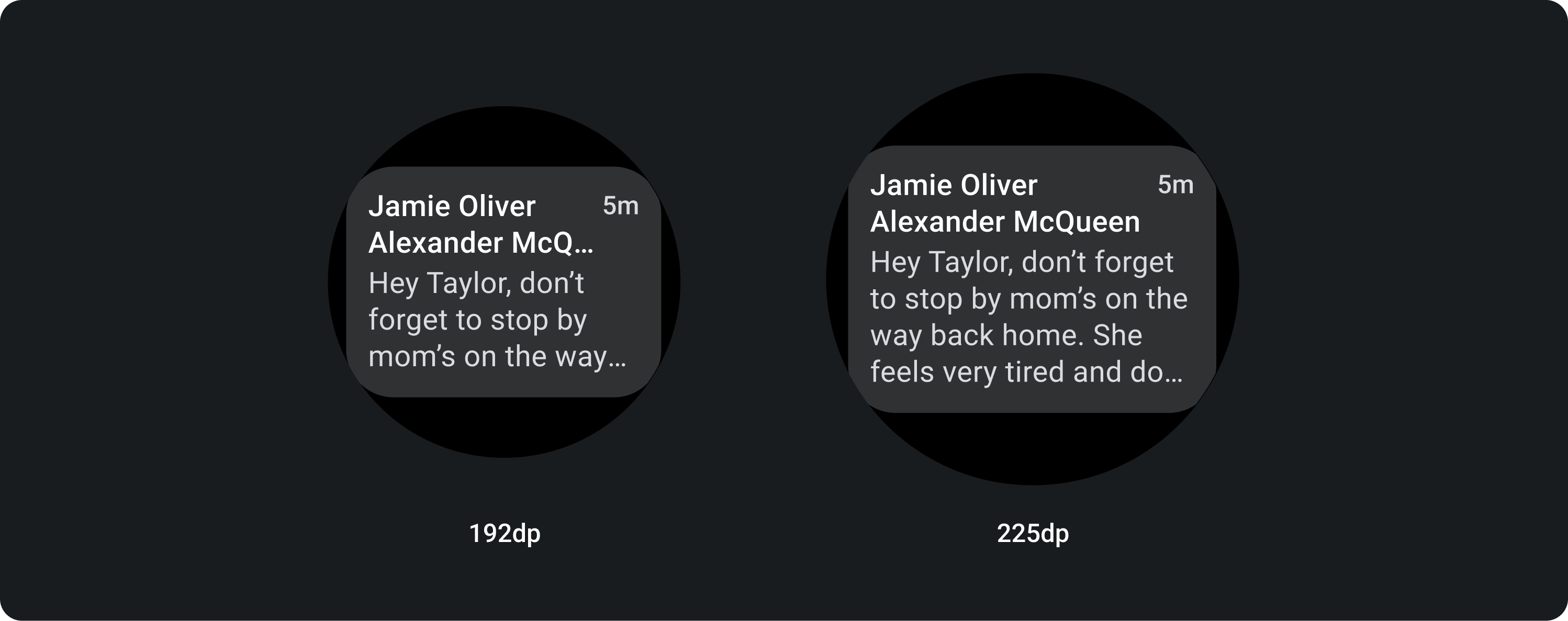

Title Card
Use
Title cards
to show information within an application, such as a message. Title cards
have a three slot layout which includes a title, an optional time field,
and the relevant content, which is either an image or text.
App Card
Use
App cards
to show interactive elements from multiple applications. App cards have a
five slot layout that includes an application icon, the application name,
the time that the activity occurred, a Title of some sort and the relevant
content, which is either an image or text.
Design recommendations

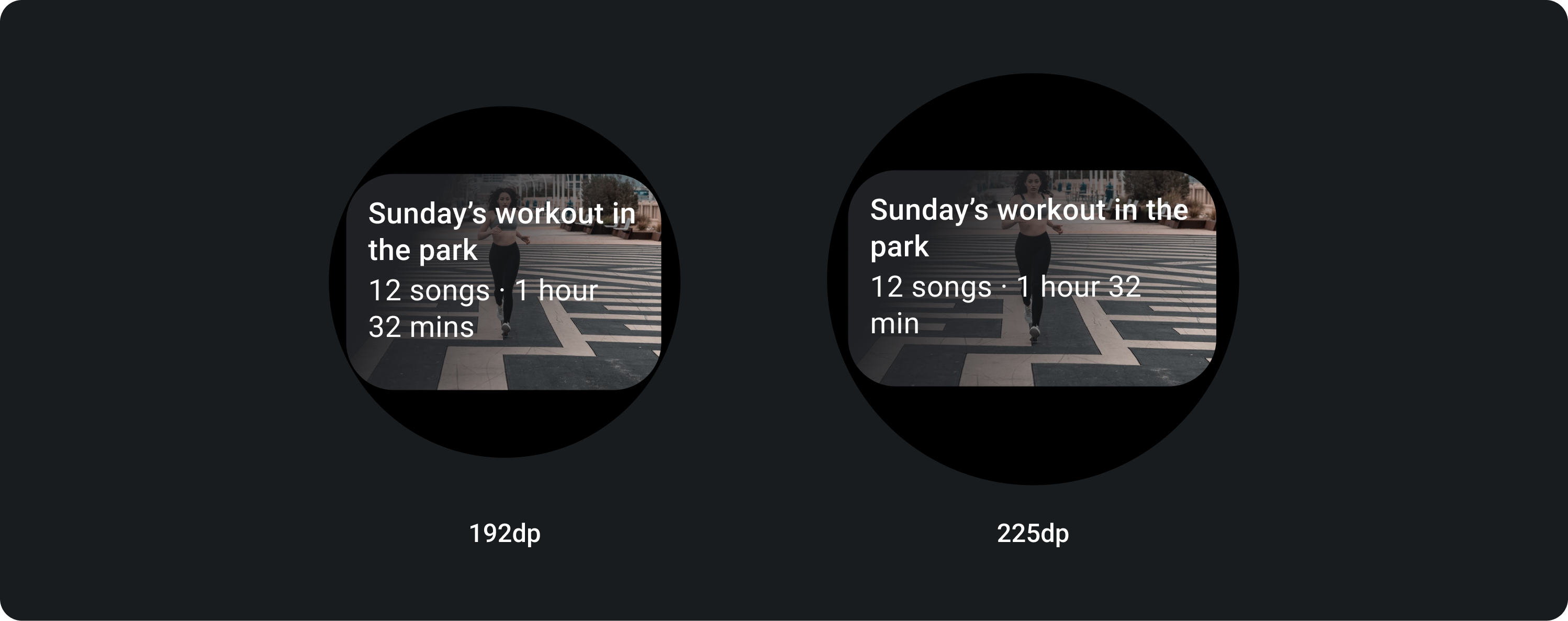

Image card
Image cards display content relating to a single topic with a background
image. Image cards can also display standalone images.
TitleCard(
onClick = { ... },
title = { Text("Workout") },
backgroundPainter = CardDefaults.imageWithScrimBackgroundPainter(
backgroundImagePainter = painterResource(id = R.drawable.backgroundimage)
),
contentColor = MaterialTheme.colors.onSurface,
titleColor = MaterialTheme.colors.onSurface
) {
Text("12 songs · 1 Hour 32 mins")
}
Sizes
Card width
Cards default to the maximum width of the container.
Card height
Card height is flexible. It is determined by the components’ content.
On round watch faces, cards that are taller than 60% of the height of
the screens are clipped.
