Define a Composition of media items

The Media3 Transformer library provides a suite of tools for editing and manipulating media. A core component for multi-asset editing is the Composition API. This API lets you arrange multiple input media items, such as video clips, images, and audio tracks, into a single, coherent structure that can then be processed, previewed, or exported. A Composition can be thought of as a timeline that holds one or more sequences of media. Each sequence (defined by an EditedMediaItemSequence) contains individual media items (defined as EditedMediaItem instances). Transformations and effects can be applied to an individual EditedMediaItem, or to an entire Composition.

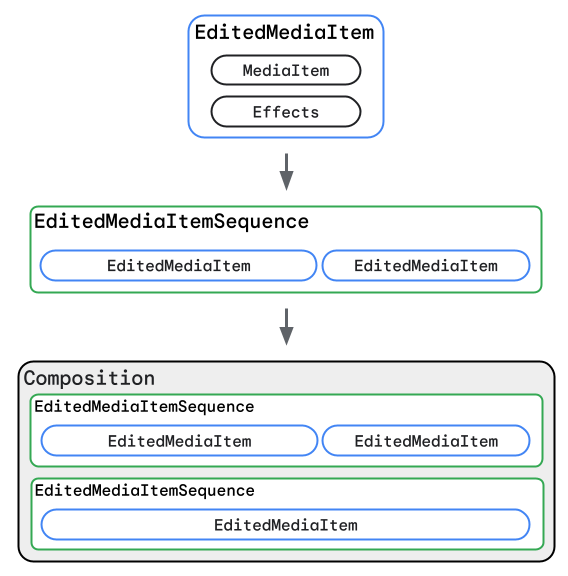

The structure of a Composition object
The structure of a Composition object

A Composition is your entry point for a variety of use cases with Media3 Transformer, such as:

  • Sequentially combining audio, image, and video assets.
  • Overlaying a video on top of another video (picture-in-picture).
  • Mixing a background audio track with a video sequence.
  • Applying visual or audio effects across an entire edited piece.
  • Handling complex scenarios like HDR video processing.

This guide focuses on how to define and build Composition objects, including the key classes involved, how to create basic and more complex compositions with single or multiple sequences, and how to apply effects at different levels.

Key Concepts and Classes

To effectively use the Composition API, it's important to understand the main classes involved in constructing a media composition:

Effects:

  • Purpose: An Effects object is a collection of audio processors and video effects.
  • How it's used: In the context of a Composition, an Effects can be set on individual EditedMediaItem instances to modify specific clips, or to the Composition as a whole (typically for Presentation effects that affect the final output, like adjusting the display resolution or frame rate).
  • Why it's important: Effects is the mechanism for applying transformations, filters, and other processing to your media at both the individual item level and the overall composition level. For more information, see Transformations.

EditedMediaItem:

  • Purpose: This class represents a single piece of media (like a video, image, or audio file) and the edits to be applied to it.
  • How it's used: An EditedMediaItem groups a MediaItem (which points to the actual media content) with an Effects object.
  • Why it's important: This is the fundamental building block of your composition. It lets you define precisely which media to include and how each individual piece should look and sound before it's combined with others in a sequence.

EditedMediaItemSequence:

  • Purpose: Represents a linear sequence of EditedMediaItem objects that are intended to be played one after the other.
  • How it's used: An EditedMediaItemSequence is constructed with a list of EditedMediaItem objects. Each sequence within a Composition is similar to a track or layer in a multi-track video editing timeline. For example, one sequence might contain your main video clips, while another sequence, overlapping in time, might contain video clips to be overlaid on the first, and yet another sequence may contain only an audio track for background music.
  • Why it's important: An EditedMediaItemSequence groups related media items that should follow each other directly. By using multiple sequences, you can build up more complex arrangements, like layering audio or creating visual overlays.

Composition:

  • Purpose: This is the top-level object that represents the entire timeline of media to be processed. It acts as a container for all the media sequences and any global settings or effects that apply to the whole output.
  • How it's used: A Composition consists of one or more EditedMediaItemSequence objects. You can also apply composition-wide effects and set global configurations such as HDR mode directly on the Composition. If a Composition contains multiple EditedMediaItemSequence objects, these sequences can be arranged to play sequentially or can overlap in time, allowing for overlaid layouts like picture-in-picture or transitions from one sequence to another.
  • Why it's important: A Composition defines the overall structure of the input media to be processed, and is a common object that you can use both for previewing edits with a CompositionPlayer and exporting an output video with edits applied using Transformer.

Create and export a Composition

Here is an example of creating a video asset that consists of two edited video clips, overlaid with an audio track, and exporting it:

Kotlin

val video1 = EditedMediaItem.Builder(MediaItem.fromUri(video1Uri)).build()

val video2 = EditedMediaItem.Builder(MediaItem.fromUri(video2Uri)).build()

val videoSequence = EditedMediaItemSequence.withAudioAndVideoFrom(listOf(video1, video2))

val backgroundAudio = EditedMediaItem.Builder(MediaItem.fromUri(audioUri)).build()

val backgroundAudioSequence =
  EditedMediaItemSequence.withAudioFrom(listOf(backgroundAudio))
    .buildUpon()
    .setIsLooping(true) // Loop audio track through duration of videoSequence
    .build()

val composition = Composition.Builder(videoSequence, backgroundAudioSequence).build()

transformer.start(composition, filePath)

Java

EditedMediaItem video1 = new EditedMediaItem.Builder(MediaItem.fromUri(video1Uri)).build();

EditedMediaItem video2 = new EditedMediaItem.Builder(MediaItem.fromUri(video2Uri)).build();

EditedMediaItemSequence videoSequence =
    EditedMediaItemSequence.withAudioAndVideoFrom(ImmutableList.of(video1, video2));

EditedMediaItem backgroundAudio =
    new EditedMediaItem.Builder(MediaItem.fromUri(audioUri)).build();

EditedMediaItemSequence backgroundAudioSequence =
    EditedMediaItemSequence.withAudioFrom(ImmutableList.of(backgroundAudio))
        .buildUpon()
        .setIsLooping(true) // Loop audio track through duration of videoSequence
        .build();

Composition composition =
    new Composition.Builder(videoSequence, backgroundAudioSequence).build();

transformer.start(composition, filePath);

Examples of supported use cases

This is a non-exhaustive list of use cases that the Transformer API supports with Composition:

  • Sequentially combining audio, image, and video assets.
  • Adding background audio to a video asset.
  • Adding effects to a Composition.
  • Tone mapping HDR input to SDR to generate better visual quality SDR output.

Current limitations

Sequences within a Composition must meet the conditions outlined in Transformer.start(). Furthermore, the following operations are not yet supported when working with Compositions:

  • Crossfading video or audio tracks

Feature requests

If you have any feature requests for the Transformer APIs, file an issue on the Media3 GitHub repository.
