Getting started with CastPlayer

The CastPlayer is a Jetpack Media3 Player implementation that supports both local playback and casting to a remote Cast-enabled device. CastPlayer simplifies adding cast functionality to your app and provides rich features to seamlessly switch between local and remote playback. This guide shows you how to integrate CastPlayer into your media app.

To integrate Cast with other platforms, see the Cast SDK.

Add CastPlayer as a dependency

To start using CastPlayer, add the AndroidX Media3 and CastPlayer dependencies you need in your build.gradle file of your app module.

Kotlin

implementation("androidx.media3:media3-exoplayer:1.9.0-alpha01")
implementation("androidx.media3:media3-ui:1.9.0-alpha01")
implementation("androidx.media3:media3-session:1.9.0-alpha01")
implementation("androidx.media3:media3-cast:1.9.0-alpha01")

Groovy

implementation "androidx.media3:media3-exoplayer:1.9.0-alpha01"
implementation "androidx.media3:media3-ui:1.9.0-alpha01"
implementation "androidx.media3:media3-session:1.9.0-alpha01"
implementation "androidx.media3:media3-cast:1.9.0-alpha01"

Consult the Jetpack Media release notes to find the latest alpha release so that you can integrate CastPlayer into your app. All modules must be of the same version.

For more information about the available library modules, see the Google Maven AndroidX Media3 page.

Configure your CastPlayer

To configure the CastPlayer, update your AndroidManifest.xml file with an options provider.

Options provider

The CastPlayer requires an options provider to configure its behavior. For a basic setup, you can use the default options provider by adding it to your AndroidManifest.xml file. This uses default settings, including the default receiver application.

<application>
  <meta-data
    android:name="com.google.android.gms.cast.framework.OPTIONS_PROVIDER_CLASS_NAME"
    android:value="androidx.media3.cast.DefaultCastOptionsProvider" />
</application>

To customize the configuration, implement your own custom OptionsProvider. See the CastOptions guide to learn how.

Add a receiver for media transfers

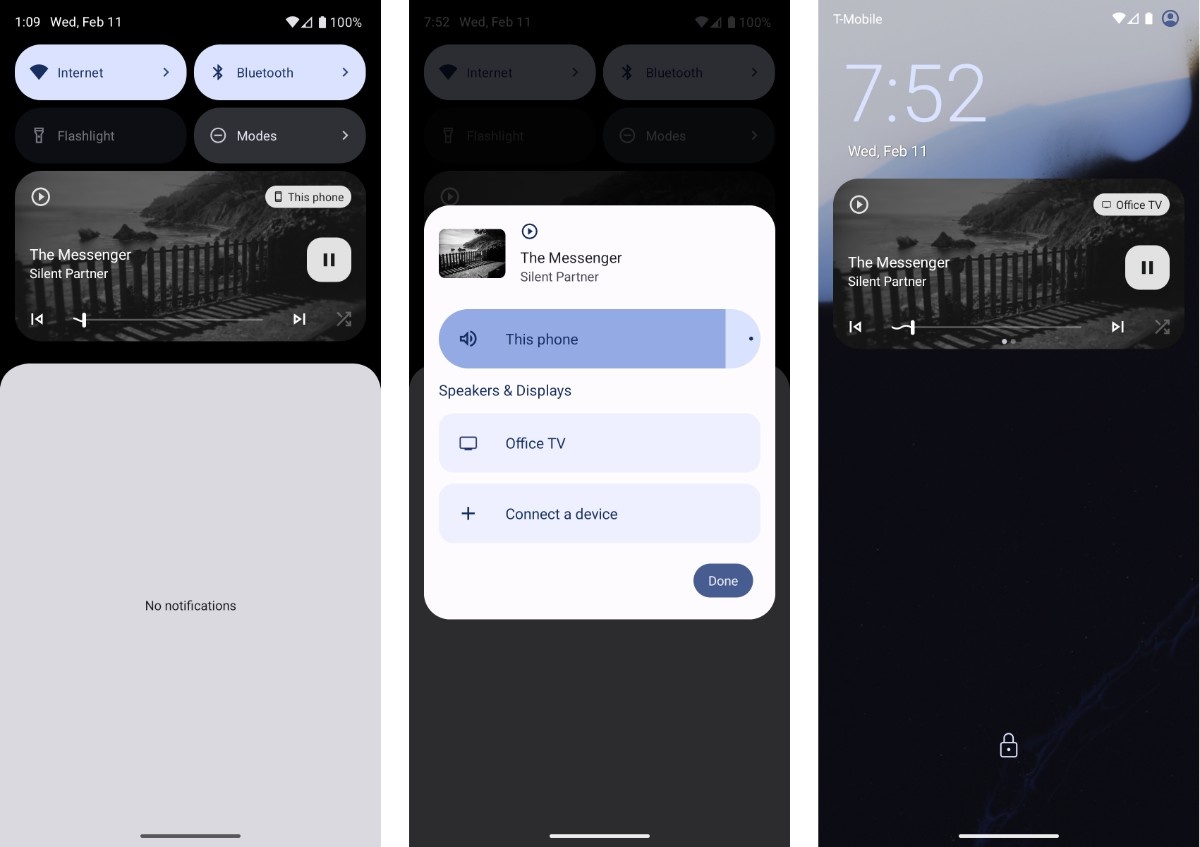

Adding a MediaTransferReceiver to your manifest enables the System UI to re-route media without opening the app activity. For example, a user can change the device playing your app's media from the media notification.

<application>
  <receiver android:name="androidx.mediarouter.media.MediaTransferReceiver" />
</application>

Build a CastPlayer

For remote playback with Cast, your app should be able to manage playback even when the user isn't interacting with an Activity from your app, such as through the system media notification. For this reason, you should create your ExoPlayer (for local playback) and CastPlayer (for remote playback) instances in a service, such as MediaSessionService or MediaLibraryService. First, create your ExoPlayer instance and then when building your CastPlayer instance, set ExoPlayer as the local player instance. Media3 will then be able to handle player transfers when the output route changes from local to remote or from remote to local.

Kotlin

override fun onCreate() {
  super.onCreate()

  val exoPlayer = ExoPlayer.Builder(context).build()
  val castPlayer = CastPlayer.Builder(context)
      .setLocalPlayer(exoPlayer)
      .build()

  mediaSession = MediaSession.Builder(context, castPlayer).build()
}

Java

@Override
public void onCreate() {
  super.onCreate();

  ExoPlayer exoPlayer = new ExoPlayer.Builder(context).build();
  CastPlayer castPlayer = new CastPlayer.Builder(context)
      .setLocalPlayer(exoPlayer)
      .build();

  mediaSession = new MediaSession.Builder(
    /* context= */ context, /* player= */ castPlayer).build();
}

Add UI elements

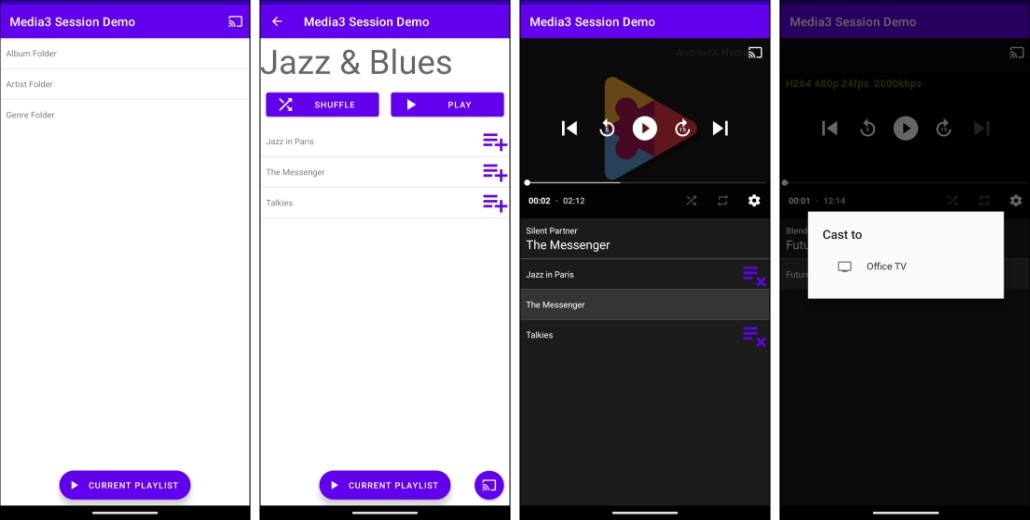

Add a MediaRouteButton to your app's UI to let users select a Cast device. This section shows you how to add the button and listen for events to update your UI when playback switches between local and remote devices.

Set the MediaRouteButton

There are four possible methods to add the MediaRouteButton to your activity's UI for users to interact with. The choice will depend on how you want the UI for your player activity to look and work.

Add a Composable media route button to the Player

You can add the MediaRouteButton composable to your player's UI. For more information, see the compose guide.

Kotlin

import androidx.compose.animation.AnimatedVisibility
import androidx.compose.animation.fadeIn
import androidx.compose.animation.fadeOut
import androidx.compose.runtime.Composable
import androidx.compose.ui.Modifier
import androidx.media3.cast.MediaRouteButton

@Composable
fun PlayerComposeView(player: Player, modifier: Modifier = Modifier) {
  var controlsVisible by remember { mutableStateOf(false) }

  Box(
    modifier = modifier.clickable { controlsVisible = true },
    contentAlignment = Alignment.Center,
  ) {
    PlayerSurface(player = player, modifier = modifier)
    AnimatedVisibility(visible = controlsVisible, enter = fadeIn(), exit = fadeOut()) {
      Box(modifier = Modifier.fillMaxSize()) {
        MediaRouteButton(modifier = Modifier.align(Alignment.TopEnd))
        PrimaryControls(player = player, modifier = Modifier.align(Alignment.Center))
      }
    }
  }
}

@Composable
fun PrimaryControls(player: Player, modifier: Modifier = Modifier) {
  ...
}

Add the media route button to the PlayerView

You can add the MediaRouteButton directly within the PlayerView's UI controls. After setting the MediaController as the player for your PlayerView, provide a MediaRouteButtonViewProvider to display the Cast button on the Player.

Kotlin

override fun onStart() {
  super.onStart()

  playerView.player = mediaController
  playerView.setMediaRouteButtonViewProvider(MediaRouteButtonViewProvider())
}

Java

@Override
public void onStart() {
  super.onStart();

  playerView.setPlayer(mediaController);
  playerView.setMediaRouteButtonViewProvider(new MediaRouteButtonViewProvider());
}

Add the media route button to the app bar menu

This method sets up a media route button in the app bar menu. Updates to both the manifest file and the Activity are needed to show this style of button.

<menu xmlns:android="http://schemas.android.com/apk/res/android"
         xmlns:app="http://schemas.android.com/apk/res-auto">
  <item android:id="@+id/media_route_menu_item"
    android:title="@string/media_route_menu_title"
    app:showAsAction="always"
    app:actionProviderClass="androidx.mediarouter.app.MediaRouteActionProvider"/>
</menu>

Kotlin

override fun onCreateOptionsMenu(menu: Menu): Boolean {
    ...
    menuInflater.inflate(R.menu.sample_media_route_button_menu, menu)
    val menuItemFuture: ListenableFuture<MenuItem> =
        MediaRouteButtonFactory.setUpMediaRouteButton(
            context, menu, R.id.media_route_menu_item)
    Futures.addCallback(
        menuItemFuture,
        object : FutureCallback<MenuItem> {
            override fun onSuccess(menuItem: MenuItem?) {
                // Do something with the menu item.
            }

            override fun onFailure(t: Throwable) {
                // Handle the failure.
            }
        },
        executor)
    ...
}

Java

@Override
public boolean onCreateOptionsMenu(Menu menu) {
    ...
    getMenuInflater().inflate(R.menu.sample_media_route_button_menu, menu);
    ListenableFuture<MenuItem> menuItemFuture =
        MediaRouteButtonFactory.setUpMediaRouteButton(
          context, menu, R.id.media_route_menu_item);
    Futures.addCallback(
        menuItemFuture,
        new FutureCallback<MenuItem>() {
          @Override
          public void onSuccess(MenuItem menuItem) {
            // Do something with the menu item.
          }

          @Override
          public void onFailure(Throwable t) {
            // Handle the failure.
          }
        },
        executor);
    ...
}

Add the media route button as a View

Alternatively, you can set up a MediaRouteButton in your activity layout.xml. To complete the setup for the MediaRouteButton, use the Media3 Cast MediaRouteButtonFactory in your Activity code.

Kotlin

override fun onCreate(savedInstanceState: Bundle?) {
  super.onCreate(savedInstanceState)

  findViewById<MediaRouteButton>(R.id.media_route_button)?.also {
    val unused = MediaRouteButtonFactory.setUpMediaRouteButton(context, it)
  }
}

Java

@Override
public void onCreate(Bundle savedInstanceState) {
    ...
    MediaRouteButton button = findViewById(R.id.media_route_button);
    ListenableFuture<Void> setUpFuture =
        MediaRouteButtonFactory.setUpMediaRouteButton(context, button);
}

Activity Listener

Create a Player.Listener in your Activity to listen for changes to media playback location. When the playbackType changes between PLAYBACK_TYPE_LOCAL and PLAYBACK_TYPE_REMOTE, you can adjust your UI as needed. To prevent memory leaks and to confine listener activity to only when your app is visible, register the listener in onStart and unregister it in onStop:

Kotlin

import androidx.media3.common.DeviceInfo
import androidx.media3.common.Player

private val playerListener: Player.Listener =
  object : Player.Listener {
    override fun onDeviceInfoChanged(deviceInfo: DeviceInfo) {
      if (deviceInfo.playbackType == DeviceInfo.PLAYBACK_TYPE_LOCAL) {
        // Add UI changes for local playback.
      } else if (deviceInfo.playbackType == DeviceInfo.PLAYBACK_TYPE_REMOTE) {
        // Add UI changes for remote playback.
      }
    }
  }

override fun onStart() {
  super.onStart()
  mediaController.addListener(playerListener)
}

override fun onStop() {
  super.onStop()
  mediaController.removeListener(playerListener)
}

Java

import androidx.media3.common.DeviceInfo;
import androidx.media3.common.Player;

private Player.Listener playerListener =
    new Player.Listener() {
      @Override
      public void onDeviceInfoChanged(DeviceInfo deviceInfo) {
        if (deviceInfo.playbackType == DeviceInfo.PLAYBACK_TYPE_LOCAL) {
          // Add UI changes for local playback.
        } else if (deviceInfo.playbackType == DeviceInfo.PLAYBACK_TYPE_REMOTE) {
          // Add UI changes for remote playback.
        }
      }
    };

@Override
protected void onStart() {
  super.onStart();
  mediaController.addListener(playerListener);
}

@Override
protected void onStop() {
  super.onStop();
  mediaController.removeListener(playerListener);
}

For more information about listening and responding to playback events, see the player events guide.
