Debug your app layout for augmented experiences with Layout Inspector

Applicable XR devices

This guidance helps you build experiences for these types of XR devices.

Learn about XR device types →

Learn about XR device types →

While you're building augmented experiences with Jetpack Compose Glimmer components for AI glasses, you can inspect and debug your layout with the Layout Inspector in Android Studio.

See also

If you're new to using the Layout Inspector, learn how to do other common tasks in the layout debugging guide.

arrow_forward

Open the Layout Inspector

1. In Android Studio, run your app.

2. When you see a screen you want to inspect, select Tools > Layout Inspector from the menu bar.

   The Layout Inspector opens, along with the Attributes and the Component Tree subpanels.

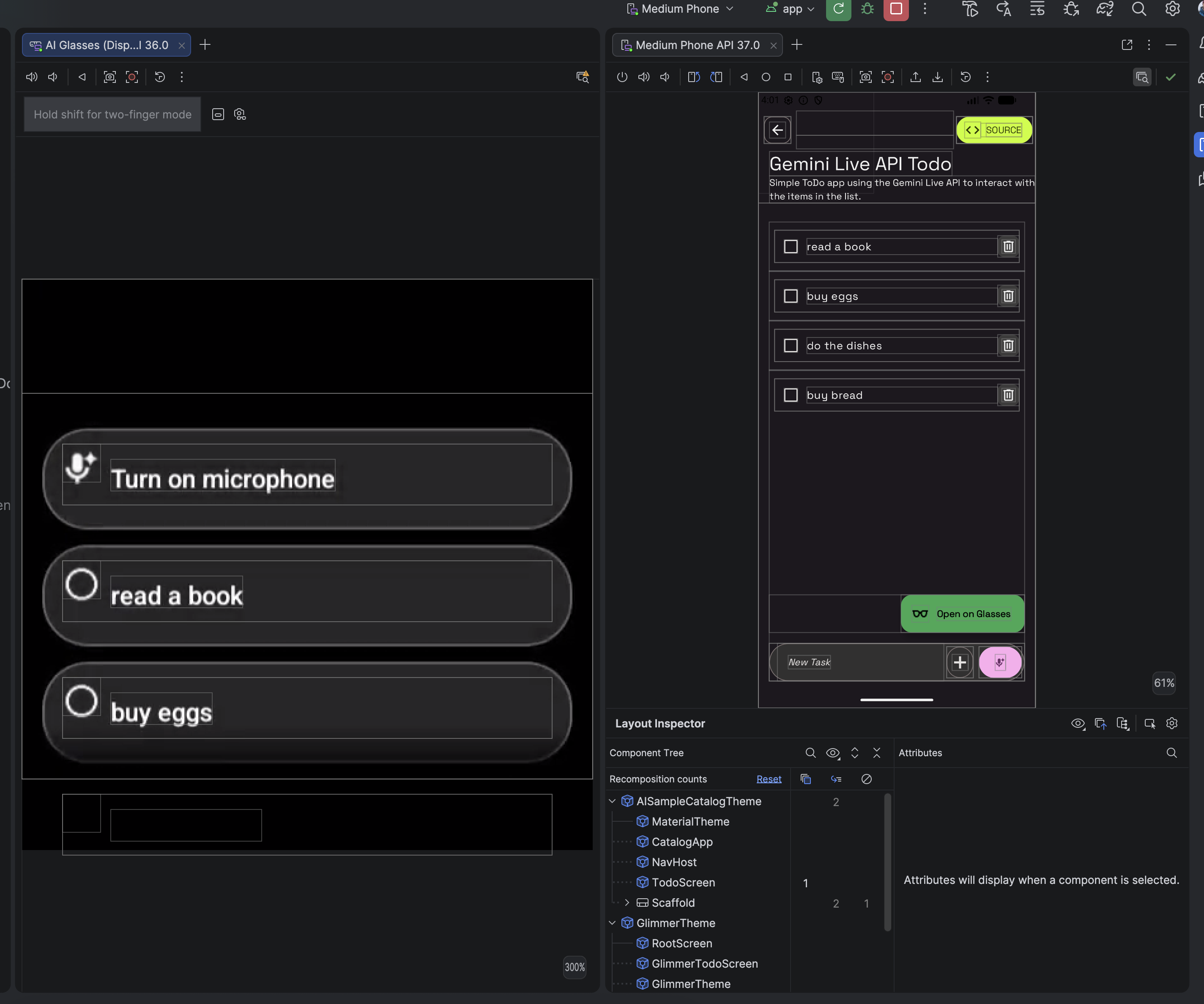

3. In the Component Tree, find the UI component for the AI glasses. Click the component to inspect its attributes.



Inspect component attributes

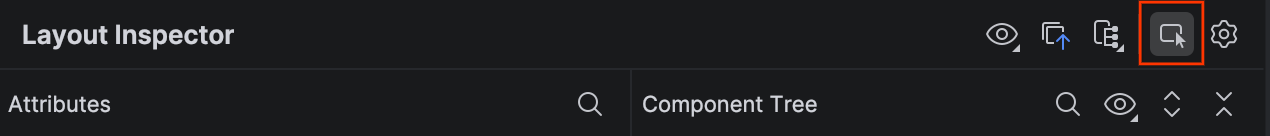

As you interact with your app, click Toggle Deep Inspect to select a component directly on the emulated devices. All of the layout attributes for a selected component appear in the Attributes panel.
