Test using Android Automotive OS on Pixel Tablet

Stay organized with collections Save and categorize content based on your preferences.

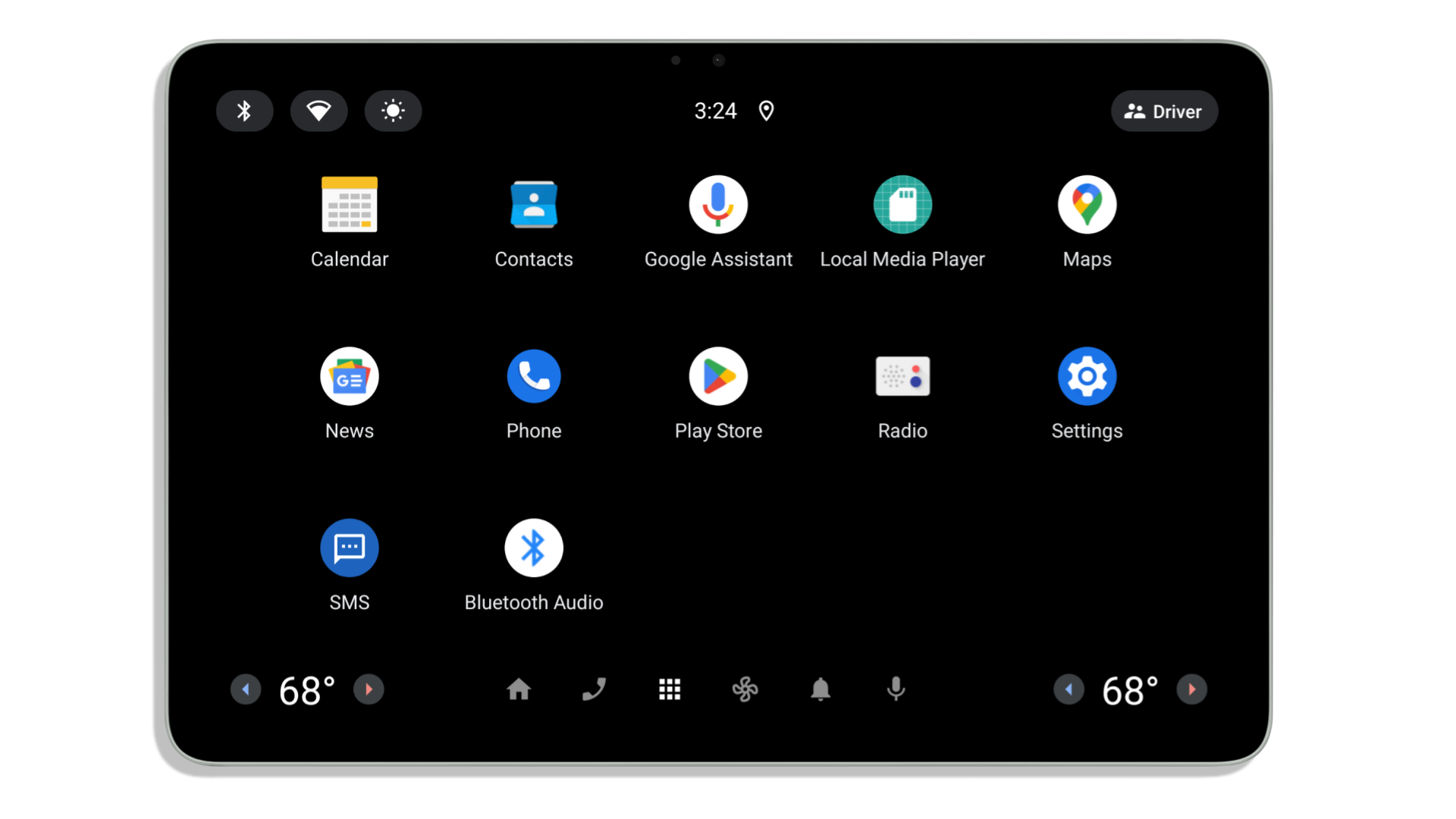

In addition to the Android Automotive OS emulator, Pixel Tablet can be used as a physical hardware device to test your app on Android Automotive OS.

Request access

Access to the Android Automotive OS on Pixel Tablet system image requires inclusion on an allow list. You can submit the Android Automotive OS on Pixel Tablet access form to gain access.

System images

The following targets have builds available on the git_udc-car-release branch:

Flash your device

To flash your device, follow the steps detailed in Flash with Android Flash Tool. Make sure you're signed in to the tool using the Google Account that's enrolled in the program, or you won't see the builds. When asked to select a build, select one from System images that fits your needs.

Return to public build

If you would like to revert your device's software, you can follow the instructions in Return Pixel to public build.

Use the device as an Android Auto receiver

On user images (UAA1.250513.001 or later), you can use the device as an Android Auto receiver. To connect your phone to your Pixel Tablet running Android Automotive OS, open the Android Auto app from the launcher grid on the tablet and follow the onscreen instructions to pair using Bluetooth.

Emulate hardware state

As with the Android Automotive OS emulator, the Android Automotive OS image for Pixel Tablet supports emulating hardware state.

Simulate driving

Simulate driving using a quick setting

On userdebug images (UAA1.250207.001 or later), you can simulate driving by using a quick setting menu:

1. Enable Developer options.
2. Toggle Set driving in the quick setting menu, as shown in the following image:

Simulate driving using adb

To simulate a driving state using adb, you can use the following command:

adb shell cmd car_service inject-vhal-event 0x11600207 30 -t 2000 \
&& adb shell cmd car_service inject-vhal-event 0x11400400 8 \
&& adb shell cmd car_service inject-vhal-event 0x11200402 false

This command does three things:

1. Sets PREF_VEHICLE_SPEED to 30 meters per second (about 67 mph or 108 km/h), ramping the change over 2 seconds.
2. Sets GEAR_SELECTION to GEAR_DRIVE.
3. Sets PARKING_BRAKE_ON to false.

To simulate a parked state (the default state upon boot), you can use the following command:

adb shell dumpsys car_service inject-vhal-event 0x11600207 0 \
&& adb shell dumpsys car_service inject-vhal-event 0x11400400 4

This command does two things:

1. Sets PREF_VEHICLE_SPEED to 0 meters per second (stopped).
2. Sets GEAR_SELECTION to GEAR_PARK.

Known issues

Android Automotive OS for Pixel Tablet is not CTS certified and shouldn't be treated as a production device. This section describes known issues and potential workarounds.

If you run into an issue or have a feature request while using Android Automotive OS on Pixel Tablet, you can report it using the Google Issue Tracker. Be sure to fill out all the requested information in the issue template. Before filing a new issue, check whether it is already reported in the issues list. You can subscribe and vote for issues by clicking the star for an issue in the tracker. For more information, see Subscribing to an Issue.

Create a new issue

Location

Because the Pixel Tablet doesn't have a GPS sensor and Android Automotive OS devices aren't required to support network location, Pixel Tablets running Android Automotive OS don't report their own location.

Mock location using an app

To test an app that requires location readings, enable developer options and install a mock location app.

Mock location using adb

Alternatively, you can use adb to mock location by using the following commands:

# Turn on the system location setting
adb shell cmd location set-location-enabled true

# Enable the developer option to allow mock locations
adb shell appops set 2000 android:mock_location allow

# Add a mock location provider named PROVIDER_NAME
# If your app uses a specific type of location provider, you should use the standard
# name of that provider, such as "fused", "gps", "network", or "passive"
adb shell cmd location providers add-test-provider PROVIDER_NAME

# Use the mock location provider named PROVIDER_NAME
adb shell cmd location providers set-test-provider-enabled PROVIDER_NAME true

# Set the location provided by PROVIDER_NAME,
# where latitude and longitude are a comma separated pair such as "37.4215,-122.0843"
adb shell cmd location providers set-test-provider-location PROVIDER_NAME --location LATITUDE,LONGITUDE

# Confirm that the location has been set
adb shell dumpsys location | grep "last location"

To stop using the mock location provider, use the following command:

adb shell cmd location providers set-test-provider-enabled PROVIDER_NAME false

Bluetooth

Support for Bluetooth profiles, such as the Hands-Free Profile (HFP) and Advanced Audio Distribution Profile (A2DP), may be missing or not fully functional.

Radio

The default Radio app does not work.

Android Auto

Wired Android Auto connections are not working consistently. Use a wireless connection if you can. See Set up Android Auto for step-by-step instructions.

Release notes

UAA1.250513.001 (May 13, 2025)

Updates

• The tangorpro_car_ext-user build now supports acting as an Android Auto receiver.

UAA1.250207.001 (Feb 7, 2025)

Updates

• Adds support for Car Ready Mobile Apps.
• Improves audio stability for volume control.
• Disables wake up from unplugging a USB cable and performing a tap gesture to reduce battery consumption.
• Enables camera services.
• Supports a Quick Settings menu in the status bar for developers. (Only available on userdebug builds.)

Bug fixes

• Audio volume changes per stream.
• Music volume now persists, and volume control doesn't pop up when booted.
• No longer crashes when changing volume in settings.
• Wi-Fi is disabled after reboot.
• Switches between Rotary IME and Carboard automatically.
• Removes unavailable features, such as android.software.app_widgets.
