Publish device security state

If you are an original equipment manufacturer (OEM) or maintain a privileged over-the-air (OTA) update client, you can give security-sensitive apps on the device visibility into pending security updates so they can accurately evaluate the device's security posture. To enforce robust zero-trust policies, apps must be able to verify not only the patch level installed on the device (Device Security Patch Level, or DSPL), but also what security updates are available and ready to install (Available Security Patch Level, or ASPL).

Because unprivileged client apps can't directly read firmware properties, inspect private updater databases, or query internal OEM backend endpoints, the AndroidX Security State Provider library provides a standardized, secure interprocess communication (IPC) architecture that update clients use to share information about available updates. By implementing an UpdateInfoService in your OTA update client, you can publish ASPL metadata for the system without exposing proprietary backend integrations. While Google provides implementation for modular system component (Mainline) updaters for GMS devices, non-GMS devices can also publish ASPL metadata for these modular system components.

Architectural overview

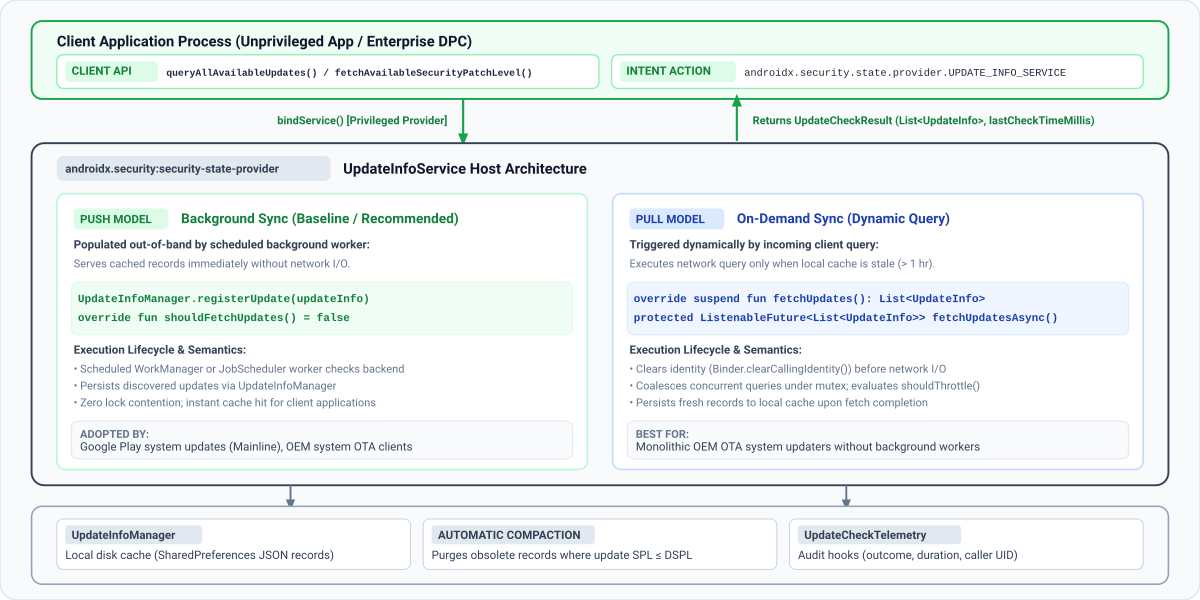

The following diagram illustrates how the AndroidX Security State Provider library establishes a standardized, secure IPC framework between unprivileged client apps and on-device update services:

The AndroidX Security State Provider library establishes a standardized, secure IPC framework between unprivileged client apps and on-device update services

Data delivery models

Client apps query update availability by calling queryAllAvailableUpdates or fetchAvailableSecurityPatchLevel. Under the hood, the client library automatically discovers and binds to all registered services that extend the UpdateInfoService class on the device from system apps that hold the READ_PRIVILEGED_PHONE_STATE permission.

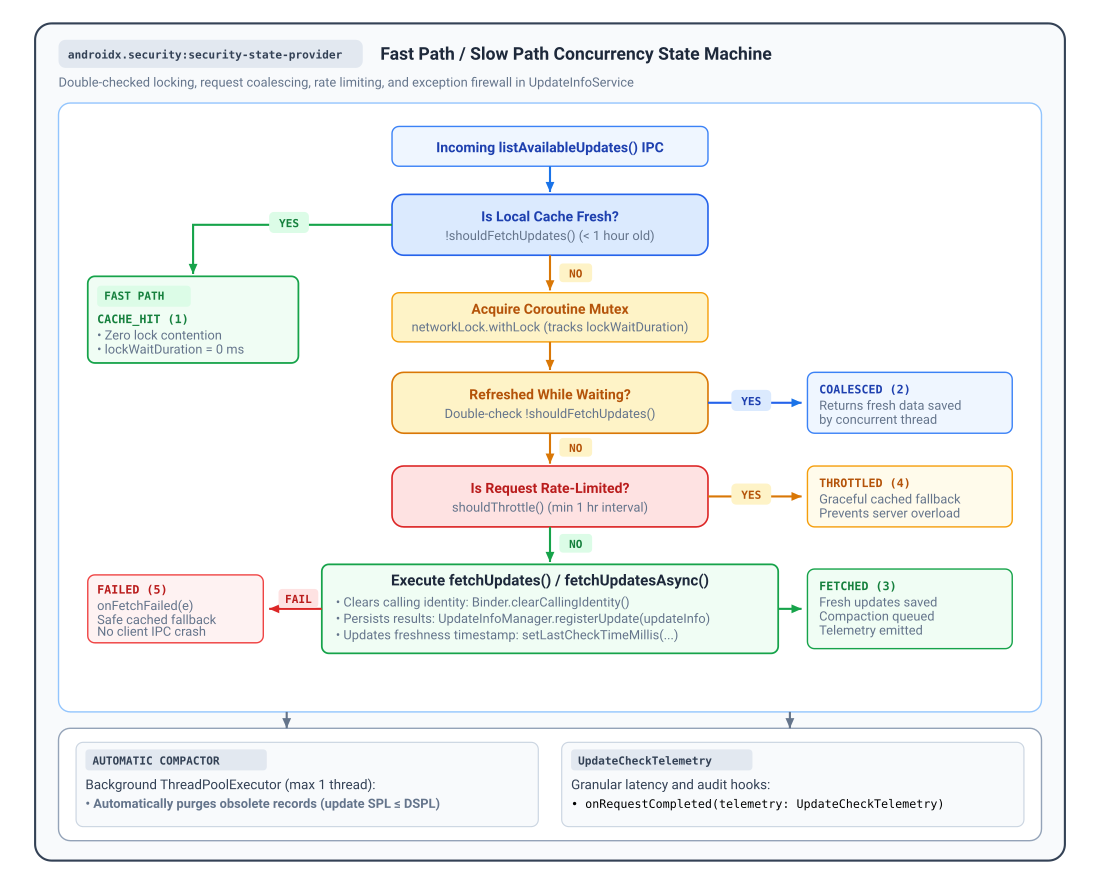

As illustrated in the preceding diagram, the security-state-provider library supports two data delivery models:

Delivery model Synchronization trigger Client response Recommended use cases
Push model (Background sync) Scheduled background workers (WorkManager or JobScheduler) sync with your backend and write records to UpdateInfoManager. Your service always serves from local disk cache (shouldFetchUpdates() = false). Served immediately from local cache. OEM system OTA updaters and background-synced modular component updaters.
Pull model (On-demand sync) Incoming client IPC queries trigger a network fetch when cached records are stale (shouldFetchUpdates() = true). Mutex coalescing and rate limiting (shouldThrottle()) protect your backend from spikes. Waits for the backend fetch when the cache is stale. Monolithic OEM OTA updaters without scheduled background sync workers.

Multiple update providers

On production Android devices, multiple independent update providers coexist concurrently. For example, Mainline publishes availability for modular components (COMPONENT_SYSTEM_MODULES), while your OEM OTA client publishes updates for the primary OS image (COMPONENT_SYSTEM).

Your service only needs to register updates for the specific components it manages. If multiple providers on a device publish updates for the same component, client apps evaluate the highest available patch level (using fetchAvailableSecurityPatchLevel()) or inspect individual UpdateInfo records (using queryAllAvailableUpdates()) for enterprise auditing. Ensure that your service always publishes the canonical format for your component (DateBasedSecurityPatchLevel for COMPONENT_SYSTEM).

Step-by-step guide to onboard your update client

Follow these steps to integrate the AndroidX Security State Provider library into your update client and begin publishing your device's security update availability.

Step 1: Add dependencies

To implement an update provider, make sure your project includes the Google Maven repository, then add the security-state-provider library to your module's build.gradle.kts (Kotlin DSL) or build.gradle (Groovy DSL) file:

Kotlin

// Kotlin DSL (build.gradle.kts)
dependencies {
    // Core provider library for OTA and system update clients
    implementation("androidx.security:security-state-provider:1.0.0")
    // Required to construct UpdateInfo and DateBasedSecurityPatchLevel records
    implementation("androidx.security:security-state:1.1.0")
    // Optional: Guava ListenableFuture support for Java implementations
    implementation("androidx.concurrent:concurrent-futures:1.2.0")
    implementation("com.google.guava:guava:33.0.0-android")
}

Groovy

// Groovy DSL (build.gradle)
dependencies {
    // Core provider library for OTA and system update clients
    implementation 'androidx.security:security-state-provider:1.0.0'
    // Required to construct UpdateInfo and DateBasedSecurityPatchLevel records
    implementation 'androidx.security:security-state:1.1.0'
    // Optional: Guava ListenableFuture support for Java implementations
    implementation 'androidx.concurrent:concurrent-futures:1.2.0'
    implementation 'com.google.guava:guava:33.0.0-android'
}

Step 2: Declare the update service in your manifest

Declare your service in your app's AndroidManifest.xml with an <intent-filter> matching androidx.security.state.provider.UPDATE_INFO_SERVICE. The service must be exported (android:exported="true") and configured as a single-user service (android:singleUser="true") so the client library can bind to it across process and user boundaries, especially for work profiles:

<!-- AndroidManifest.xml -->
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    package="com.example.android.updater">
    <application>
        <service
            android:name=".MyUpdateInfoService"
            android:exported="true"
            android:singleUser="true"
            tools:ignore="ExportedService">
            <intent-filter>
                <action android:name="androidx.security.state.provider.UPDATE_INFO_SERVICE" />
            </intent-filter>
        </service>
    </application>
</manifest>

If your updater doesn't run as android.uid.system, also declare the following permissions in your manifest and make sure to add them to your privileged permission allowlist:

  • READ_PRIVILEGED_PHONE_STATE: required for clients to trust your provider.
  • INTERACT_ACROSS_USERS: required for android:singleUser="true".

Step 3: Implement UpdateInfoService

To publish your update status, you must implement the UpdateInfoService class and construct update records that match the expected data model.

UpdateInfo data model specification

Whether you choose the Push model or Pull model, construct UpdateInfo records using UpdateInfo.Builder according to the following specification:

Field Name Getter Method Data Type Validation and Format Requirements Purpose and System Semantics
component getComponent() String (@Component) Canonical constants in SecurityPatchState: COMPONENT_SYSTEM, COMPONENT_SYSTEM_MODULES, or COMPONENT_KERNEL. Identifies the software or firmware subsystem this update targets.
securityPatchLevel getSecurityPatchLevel() SecurityPatchLevel Must be an instance of DateBasedSecurityPatchLevel (YYYY-MM-DD) or VersionedSecurityPatchLevel (major.minor.patch), or parsed using SecurityPatchState.getComponentSecurityPatchLevel(). The target security patch level that will be achieved once this update is installed.
publishedDateMillis getPublishedDateMillis() long Milliseconds since Unix epoch (System.currentTimeMillis()). Must be > 0. When the update was made available to users, such as the OTA release time. Don't use the payload download or install time.
lastCheckTimeMillis getLastCheckTimeMillis() long Milliseconds since Unix epoch. Must be > 0. Timestamp when your provider verified or discovered this update record during synchronization.

Choose the delivery model that fits your updater's architecture from the following options:

Option A: Push model (recommended)

When your background sync worker checks your OTA server, validate that any discovered update advances the device's current patch level and persist it using UpdateInfoManager.registerUpdate(), or call UpdateInfoManager.unregisterUpdate() if no advancing security update is pending. Always call UpdateInfoManager.setLastCheckTimeMillis() at the end of every sync (even after calling registerUpdate(), which persists the per-component UpdateInfo record but doesn't update the global last-check timestamp returned to clients). You can implement this with a WorkManager CoroutineWorker in Kotlin or Worker in Java:

Kotlin

import android.content.Context
import androidx.security.state.SecurityPatchState
import androidx.security.state.SecurityPatchState.DateBasedSecurityPatchLevel
import androidx.security.state.UpdateInfo
import androidx.security.state.provider.UpdateInfoManager
import androidx.work.CoroutineWorker
import androidx.work.WorkerParameters
import kotlin.math.max

class OtaSyncWorker(context: Context, params: WorkerParameters) : CoroutineWorker(context, params) {
    override suspend fun doWork(): Result {
        val updateInfoManager = UpdateInfoManager(applicationContext)
        val securityPatchState = SecurityPatchState(applicationContext)
        val currentSpl = securityPatchState.getDeviceSecurityPatchLevel(SecurityPatchState.COMPONENT_SYSTEM)

        // 1. Fetch available update metadata from OEM backend
        val latestUpdate = MyOtaClient.fetchLatestSystemUpdate()
        val targetSplString = latestUpdate?.spl?.trim()
        val targetSpl = if (!targetSplString.isNullOrEmpty()) {
            DateBasedSecurityPatchLevel.fromString(targetSplString)
        } else {
            null
        }

        // 2. Defensively verify that target SPL is non-blank AND strictly newer than installed DSPL.
        // If an update is a maintenance patch with no SPL increment (or if no update is available),
        // unregister any stale cached record for this component.
        if (latestUpdate != null && targetSpl != null && targetSpl > currentSpl) {
            val updateInfo = UpdateInfo.Builder()
                .setComponent(SecurityPatchState.COMPONENT_SYSTEM)
                .setSecurityPatchLevel(targetSpl)
                .setPublishedDateMillis(latestUpdate.releaseTimeMillis)
                .setLastCheckTimeMillis(System.currentTimeMillis())
                .build()
            updateInfoManager.registerUpdate(updateInfo)
        } else {
            val clearTarget = UpdateInfo.Builder()
                .setComponent(SecurityPatchState.COMPONENT_SYSTEM)
                .build()
            updateInfoManager.unregisterUpdate(clearTarget)
        }

        // 3. Update global freshness timestamp (monotonic synchronization)
        val currentCheckTime = System.currentTimeMillis()
        val previousCheckTime = updateInfoManager.getLastCheckTimeMillis()
        updateInfoManager.setLastCheckTimeMillis(max(previousCheckTime, currentCheckTime))
        return Result.success()
    }
}

Java

import android.content.Context;
import android.text.TextUtils;
import androidx.annotation.NonNull;
import androidx.security.state.SecurityPatchState;
import androidx.security.state.SecurityPatchState.DateBasedSecurityPatchLevel;
import androidx.security.state.SecurityPatchState.SecurityPatchLevel;
import androidx.security.state.UpdateInfo;
import androidx.security.state.provider.UpdateInfoManager;
import androidx.work.Worker;
import androidx.work.WorkerParameters;

public class OtaSyncWorker extends Worker {
    public OtaSyncWorker(@NonNull Context context, @NonNull WorkerParameters params) {
        super(context, params);
    }

    @NonNull
    @Override
    public Result doWork() {
        // In Java, pass null for customSecurityState because UpdateInfoManager does not declare @JvmOverloads
        UpdateInfoManager updateInfoManager =
                new UpdateInfoManager(getApplicationContext(), /* customSecurityState= */ null);
        SecurityPatchState securityPatchState = new SecurityPatchState(getApplicationContext());
        SecurityPatchLevel currentSpl =
                securityPatchState.getDeviceSecurityPatchLevel(SecurityPatchState.COMPONENT_SYSTEM);

        // 1. Fetch available update metadata from OEM backend
        MyOtaUpdate latestUpdate = MyOtaClient.fetchLatestSystemUpdate();
        String targetSplString = (latestUpdate != null && latestUpdate.getSpl() != null)
                ? latestUpdate.getSpl().trim()
                : null;
        DateBasedSecurityPatchLevel targetSpl =
                !TextUtils.isEmpty(targetSplString)
                        ? DateBasedSecurityPatchLevel.fromString(targetSplString)
                        : null;

        // 2. Defensively verify that target SPL is non-blank AND strictly newer than installed DSPL.
        // If an update is a maintenance patch with no SPL increment (or if no update is available),
        // unregister any stale cached record for this component.
        if (latestUpdate != null && targetSpl != null && targetSpl.compareTo(currentSpl) > 0) {
            UpdateInfo updateInfo = new UpdateInfo.Builder()
                    .setComponent(SecurityPatchState.COMPONENT_SYSTEM)
                    .setSecurityPatchLevel(targetSpl)
                    .setPublishedDateMillis(latestUpdate.getReleaseTimeMillis())
                    .setLastCheckTimeMillis(System.currentTimeMillis())
                    .build();
            updateInfoManager.registerUpdate(updateInfo);
        } else {
            UpdateInfo clearTarget = new UpdateInfo.Builder()
                    .setComponent(SecurityPatchState.COMPONENT_SYSTEM)
                    .build();
            updateInfoManager.unregisterUpdate(clearTarget);
        }

        // 3. Update global freshness timestamp (monotonic synchronization)
        long currentCheckTime = System.currentTimeMillis();
        long previousCheckTime = updateInfoManager.getLastCheckTimeMillis();
        updateInfoManager.setLastCheckTimeMillis(Math.max(previousCheckTime, currentCheckTime));
        return Result.success();
    }
}

In a push-based model, background tasks persist update records directly to UpdateInfoManager. To instruct the framework to always serve records from local disk storage, override shouldFetchUpdates() to return false by extending UpdateInfoService in Kotlin or ListenableFutureUpdateInfoService in Java:

Kotlin

import androidx.security.state.UpdateInfo
import androidx.security.state.provider.UpdateInfoService

class PushUpdateInfoService : UpdateInfoService() {
    // Cache is populated out-of-band by background sync tasks
    override fun shouldFetchUpdates(): Boolean = false

    // Never invoked under normal flow because shouldFetchUpdates() returns false
    override suspend fun fetchUpdates(): List<UpdateInfo> = emptyList()
}

Java

import androidx.annotation.NonNull;
import androidx.security.state.UpdateInfo;
import androidx.security.state.provider.ListenableFutureUpdateInfoService;
import com.google.common.util.concurrent.Futures;
import com.google.common.util.concurrent.ListenableFuture;
import java.util.Collections;
import java.util.List;

public class PushUpdateInfoService extends ListenableFutureUpdateInfoService {
    @Override
    protected boolean shouldFetchUpdates() {
        return false;
    }

    @NonNull
    @Override
    protected ListenableFuture<List<UpdateInfo>> fetchUpdatesAsync() {
        return Futures.immediateFuture(Collections.emptyList());
    }
}

Option B: Pull model (on-demand)

In a pull-based architecture, your service handles on-demand refresh requests triggered by client apps when the local cache is stale.

To handle on-demand update queries, extend UpdateInfoService in Kotlin (implementing the suspending fetchUpdates() function) or ListenableFutureUpdateInfoService in Java (implementing fetchUpdatesAsync() returning a Guava ListenableFuture):

Kotlin

package com.example.android.updater

import androidx.security.state.SecurityPatchState
import androidx.security.state.SecurityPatchState.DateBasedSecurityPatchLevel
import androidx.security.state.UpdateInfo
import androidx.security.state.provider.UpdateInfoManager
import androidx.security.state.provider.UpdateInfoService
import java.util.concurrent.TimeUnit

class MyUpdateInfoService : UpdateInfoService() {
    // Manage local update records and check timestamps
    private val updateInfoManager by lazy { UpdateInfoManager(this) }

    override suspend fun fetchUpdates(): List<UpdateInfo> {
        val currentSpl = SecurityPatchState(this)
            .getDeviceSecurityPatchLevel(SecurityPatchState.COMPONENT_SYSTEM)

        // 1. Execute network request to OTA backend
        val response = MyOtaBackendClient.checkAvailableUpdates()

        // 2. Defensively filter out blank or non-advancing SPLs and map to UpdateInfo objects
        val validUpdates = response.updates
            .mapNotNull { updateItem ->
                val splString = updateItem.targetSpl?.trim()
                if (splString.isNullOrEmpty()) return@mapNotNull null
                val parsedSpl = DateBasedSecurityPatchLevel.fromString(splString)
                if (parsedSpl > currentSpl) {
                    UpdateInfo.Builder()
                        .setComponent(SecurityPatchState.COMPONENT_SYSTEM)
                        .setSecurityPatchLevel(parsedSpl)
                        .setPublishedDateMillis(updateItem.releaseTimestampMillis)
                        .setLastCheckTimeMillis(System.currentTimeMillis())
                        .build()
                } else {
                    null
                }
            }

        // 3. If no advancing SYSTEM update is available (or if a previously offered update was revoked),
        // proactively unregister any cached record for this component.
        if (validUpdates.isEmpty()) {
            val clearTarget = UpdateInfo.Builder()
                .setComponent(SecurityPatchState.COMPONENT_SYSTEM)
                .build()
            updateInfoManager.unregisterUpdate(clearTarget)
        }
        return validUpdates
    }

    override fun shouldFetchUpdates(): Boolean {
        // Enforce custom freshness threshold (for example, 4 hours instead of default 1 hour)
        val lastCheckMillis = updateInfoManager.getLastCheckTimeMillis()
        val dataAge = System.currentTimeMillis() - lastCheckMillis
        return dataAge > TimeUnit.HOURS.toMillis(4)
    }
}

Java

package com.example.android.updater;

import android.text.TextUtils;
import androidx.annotation.NonNull;
import androidx.security.state.SecurityPatchState;
import androidx.security.state.SecurityPatchState.DateBasedSecurityPatchLevel;
import androidx.security.state.SecurityPatchState.SecurityPatchLevel;
import androidx.security.state.UpdateInfo;
import androidx.security.state.provider.ListenableFutureUpdateInfoService;
import androidx.security.state.provider.UpdateInfoManager;
import com.google.common.util.concurrent.Futures;
import com.google.common.util.concurrent.ListenableFuture;
import java.util.ArrayList;
import java.util.List;
import java.util.concurrent.TimeUnit;

public class MyUpdateInfoService extends ListenableFutureUpdateInfoService {
    private UpdateInfoManager updateInfoManager;

    @Override
    public void onCreate() {
        super.onCreate();
        // Pass null for customSecurityState because UpdateInfoManager does not declare @JvmOverloads
        updateInfoManager = new UpdateInfoManager(this, /* customSecurityState= */ null);
    }

    @NonNull
    @Override
    protected ListenableFuture<List<UpdateInfo>> fetchUpdatesAsync() {
        try {
            SecurityPatchLevel currentSpl = new SecurityPatchState(this)
                    .getDeviceSecurityPatchLevel(SecurityPatchState.COMPONENT_SYSTEM);
            MyOtaBackendResponse response = MyOtaBackendClient.checkAvailableUpdates();
            List<UpdateInfo> updates = new ArrayList<>();
            for (MyOtaUpdateItem item : response.getUpdates()) {
                String trimmedSpl = (item.getTargetSpl() != null) ? item.getTargetSpl().trim() : null;
                if (!TextUtils.isEmpty(trimmedSpl)) {
                    DateBasedSecurityPatchLevel parsedSpl =
                            DateBasedSecurityPatchLevel.fromString(trimmedSpl);
                    if (parsedSpl.compareTo(currentSpl) > 0) {
                        updates.add(new UpdateInfo.Builder()
                                .setComponent(SecurityPatchState.COMPONENT_SYSTEM)
                                .setSecurityPatchLevel(parsedSpl)
                                .setPublishedDateMillis(item.getReleaseTimestampMillis())
                                .setLastCheckTimeMillis(System.currentTimeMillis())
                                .build());
                    }
                }
            }

            // If no advancing SYSTEM update is available (or if a previously offered update was revoked),
            // proactively unregister any cached record for this component.
            if (updates.isEmpty()) {
                UpdateInfo clearTarget = new UpdateInfo.Builder()
                        .setComponent(SecurityPatchState.COMPONENT_SYSTEM)
                        .build();
                updateInfoManager.unregisterUpdate(clearTarget);
            }
            return Futures.immediateFuture(updates);
        } catch (Exception e) {
            return Futures.immediateFailedFuture(e);
        }
    }

    @Override
    protected boolean shouldFetchUpdates() {
        long lastCheckMillis = updateInfoManager.getLastCheckTimeMillis();
        long dataAge = System.currentTimeMillis() - lastCheckMillis;
        return dataAge > TimeUnit.HOURS.toMillis(4);
    }
}

Step 4: Clear applied updates after device reboot

While UpdateInfoManager automatically prunes obsolete updates whenever registerUpdate() is invoked, your updater won't call registerUpdate() again after an OTA update finishes installing until the next scheduled server sync cycle. To prevent client apps from seeing an already-installed update as still pending immediately after reboot, listen for ACTION_BOOT_COMPLETED and call UpdateInfoManager.unregisterUpdate() when an OTA update has finished installing to clear the record from the local cache. Doing this only when an update has finished installing avoids unconditionally wiping pending (uninstalled) updates on every normal device reboot. Because UpdateInfoManager keys update records by component, you only need to specify the target component when constructing the UpdateInfo object for unregistration:

Kotlin

// Build target identifying the component to unregister
val target = UpdateInfo.Builder()
    .setComponent(SecurityPatchState.COMPONENT_SYSTEM)
    .build()
// Unregister the update to remove it from disk cache
updateInfoManager.unregisterUpdate(target)
// Refresh last check timestamp to indicate up-to-date state
updateInfoManager.setLastCheckTimeMillis(System.currentTimeMillis())

Java

// Build target identifying the component to unregister
UpdateInfo target = new UpdateInfo.Builder()
    .setComponent(SecurityPatchState.COMPONENT_SYSTEM)
    .build();
// Unregister the update to remove it from disk cache
updateInfoManager.unregisterUpdate(target);
// Refresh last check timestamp to indicate up-to-date state
updateInfoManager.setLastCheckTimeMillis(System.currentTimeMillis());

Step 5: Verify your integration

Run the following checks on an Android device or emulator using Android Debug Bridge (ADB) to validate end-to-end integration and prevent common OEM deployment pitfalls:

  1. Verify that clients trust your provider: Client apps ignore any provider that doesn't hold READ_PRIVILEGED_PHONE_STATE, even if it's preinstalled. Confirm that the permission is granted:

    adb shell dumpsys package <your_package_name> | grep "READ_PRIVILEGED_PHONE_STATE: granted=true"

    Then confirm that your service is discoverable and has no service permission. In the output for your service, check for exported=true and permission=null:

    adb shell pm query-services --user 0 -a androidx.security.state.provider.UPDATE_INFO_SERVICE

    If a client still doesn't see your provider, check logcat for Ignoring untrusted update provider from the SecurityPatchState tag.

  2. Verify intent resolution in both User 0 and Work Profiles: Assert that the Android OS PackageManager resolves your exported UPDATE_INFO_SERVICE intent filter in both the primary user (User 0) and any active Android Enterprise Work Profile (such as User 10):

    adb shell pm query-services --user 0 -a androidx.security.state.provider.UPDATE_INFO_SERVICE
adb shell pm query-services --user 10 -a androidx.security.state.provider.UPDATE_INFO_SERVICE

  3. Verify service state and cached records using dumpsys: UpdateInfoService overrides dump() to report Global Last Check, Should Throttle (the state of the rate limiter), and Cached Updates. Because UpdateInfoService is a bound service and clients unbind immediately after querying, dumpsys activity service outputs (nothing) when no client is bound. Start the service explicitly before running dumpsys:

    adb shell am start-service -a androidx.security.state.provider.UPDATE_INFO_SERVICE <your_package_name>/.<service_class_name>
adb shell dumpsys activity service <your_package_name>/.<service_class_name>

    Example diagnostic output:

    UpdateInfoService State:
  Active Requests: 0
  Global Last Check: Thu Jan 01 12:00:00 UTC 2026
  Should Throttle: false
  Cached Updates (1):
    - Component: SYSTEM
      SPL: 2026-01-01
      Published: Thu Jan 01 00:00:00 UTC 2026
      Last Checked: Thu Jan 01 12:00:00 UTC 2026

  4. Trigger client binding and verify telemetry outcomes: From an unprivileged test app (not holding system signature permissions), invoke SecurityPatchState.queryAllAvailableUpdates(). If you implemented the telemetry callbacks, check the following:

    • Verify that the unprivileged client binds without a SecurityException and triggers onClientConnected(packageName, callerUid).
    • For Push-model providers (shouldFetchUpdates() == false): Verify that onRequestCompleted(telemetry) logs UpdateFetchOutcome.CACHE_HIT (1) with fetchDurationMillis == 0 on every query.
    • For Pull-model providers (shouldFetchUpdates() == true): Verify that onRequestCompleted(telemetry) logs UpdateFetchOutcome.FETCHED (3) on the initial stale-cache query, followed by CACHE_HIT (1) on immediate subsequent queries. (To reset the 1-hour persistent rate limiter between Pull-model test runs, run adb shell pm clear <your_package_name>.)

Optional and advanced configurations

Caching policy and rate limiting

When a client queries updates, UpdateInfoService executes a double-checked locking workflow to balance data freshness against backend server load:

UpdateInfoService executes a double-checked locking workflow to balance data freshness against backend server load

  • Fast Path (shouldFetchUpdates()): By default, shouldFetchUpdates() returns true (indicating a stale cache) only when the global lastCheckTimeMillis is older than 1 hour (TimeUnit.HOURS.toMillis(1)). When shouldFetchUpdates() returns false, the service immediately returns cached records with outcome UpdateFetchOutcome.CACHE_HIT without acquiring locks or performing network I/O. You can override shouldFetchUpdates() to customize this caching policy.
  • Slow Path & Request Coalescing: When shouldFetchUpdates() returns true, the service acquires an internal coroutine mutex and re-evaluates shouldFetchUpdates() (returning UpdateFetchOutcome.COALESCED if a concurrent request already refreshed the cache while waiting for the lock).
  • Persistent Rate Limiter (shouldThrottle()): To protect backend infrastructure from query bursts or repeated failures, shouldThrottle() enforces a persistent minimum 1-hour interval across app and device restarts. UpdateInfoService records each attempt before invoking fetchUpdates(), so if fetchUpdates() throws an exception (returning UpdateFetchOutcome.FAILED after invoking onFetchFailed(e)), subsequent queries during the next 60 minutes gracefully return cached fallback data with outcome UpdateFetchOutcome.THROTTLED.

Observability, telemetry, and diagnostics

UpdateInfoService provides built-in observability hooks to track client adoption, monitor IPC latency, and log backend errors without instrumenting low-level AIDL stubs:

Override these callbacks in UpdateInfoService (Kotlin) or ListenableFutureUpdateInfoService (Java):

Kotlin

import androidx.security.state.provider.UpdateCheckTelemetry
import androidx.security.state.provider.UpdateFetchOutcome
import androidx.security.state.provider.UpdateInfoService

abstract class MonitoredUpdateInfoService : UpdateInfoService() {
    override fun onRequestCompleted(telemetry: UpdateCheckTelemetry) {
        val outcomeName = when (telemetry.outcome) {
            UpdateFetchOutcome.CACHE_HIT -> "CACHE_HIT"
            UpdateFetchOutcome.COALESCED -> "COALESCED"
            UpdateFetchOutcome.FETCHED -> "FETCHED"
            UpdateFetchOutcome.THROTTLED -> "THROTTLED"
            UpdateFetchOutcome.FAILED -> "FAILED"
            else -> "UNKNOWN"
        }
        MyAnalytics.logEvent("SECURITY_UPDATE_CHECK")
            .addParam("outcome", outcomeName)
            .addParam("total_duration_ms", telemetry.totalDurationMillis)
            .addParam("lock_wait_ms", telemetry.lockWaitDurationMillis)
            .addParam("processing_ms", telemetry.processingDurationMillis)
            .addParam("fetch_duration_ms", telemetry.fetchDurationMillis)
            .addParam("caller_uid", telemetry.callerUid)
            .send()
    }

    override fun onClientConnected(packageName: String, callerUid: Int) {
        // Track authenticated client sessions and adoption
        MyMetrics.incrementCounter("client_connected", "package", packageName)
    }

    override fun onClientDisconnected(packageName: String, callerUid: Int) {
        // Track session termination and cleanup resources
        MyMetrics.incrementCounter("client_disconnected", "package", packageName)
    }

    override fun onFetchFailed(e: Exception) {
        // Report exceptions caught during the update check workflow
        MyCrashReporter.recordException(e)
    }
}

Java

import androidx.annotation.NonNull;
import androidx.security.state.provider.ListenableFutureUpdateInfoService;
import androidx.security.state.provider.UpdateCheckTelemetry;
import androidx.security.state.provider.UpdateFetchOutcome;

public abstract class MonitoredUpdateInfoService extends ListenableFutureUpdateInfoService {
    @Override
    protected void onRequestCompleted(@NonNull UpdateCheckTelemetry telemetry) {
        String outcomeName;
        switch (telemetry.getOutcome()) {
            case UpdateFetchOutcome.CACHE_HIT: outcomeName = "CACHE_HIT"; break;
            case UpdateFetchOutcome.COALESCED: outcomeName = "COALESCED"; break;
            case UpdateFetchOutcome.FETCHED: outcomeName = "FETCHED"; break;
            case UpdateFetchOutcome.THROTTLED: outcomeName = "THROTTLED"; break;
            case UpdateFetchOutcome.FAILED: outcomeName = "FAILED"; break;
            default: outcomeName = "UNKNOWN"; break;
        }
        MyAnalytics.logEvent("SECURITY_UPDATE_CHECK")
            .addParam("outcome", outcomeName)
            .addParam("total_duration_ms", telemetry.getTotalDurationMillis())
            .addParam("lock_wait_ms", telemetry.getLockWaitDurationMillis())
            .addParam("processing_ms", telemetry.getProcessingDurationMillis())
            .addParam("fetch_duration_ms", telemetry.getFetchDurationMillis())
            .addParam("caller_uid", telemetry.getCallerUid())
            .send();
    }

    @Override
    protected void onClientConnected(@NonNull String packageName, int callerUid) {
        MyMetrics.incrementCounter("client_connected", "package", packageName);
    }

    @Override
    protected void onClientDisconnected(@NonNull String packageName, int callerUid) {
        MyMetrics.incrementCounter("client_disconnected", "package", packageName);
    }

    @Override
    protected void onFetchFailed(@NonNull Exception e) {
        MyCrashReporter.recordException(e);
    }
}

Telemetry outcomes and latency metrics

UpdateCheckTelemetry measures monotonic elapsed durations (SystemClock.elapsedRealtime()) and reports one of five outcomes defined in UpdateFetchOutcome:

Outcome Constant @IntDef Code Metric Properties Logged Description & System State
UpdateFetchOutcome.CACHE_HIT 1 totalDurationMillis, processingDurationMillis, callerUid Served immediately from local disk/memory cache on Fast Path (shouldFetchUpdates() returned false). lockWaitDurationMillis and fetchDurationMillis are 0.
UpdateFetchOutcome.COALESCED 2 totalDurationMillis, lockWaitDurationMillis, processingDurationMillis, callerUid Query queued behind another active refresh; upon acquiring lock, data was fresh. Avoided duplicate network fetch (fetchDurationMillis is 0).
UpdateFetchOutcome.FETCHED 3 totalDurationMillis, lockWaitDurationMillis, processingDurationMillis, fetchDurationMillis, callerUid Backend network sync executed successfully (fetchUpdates() completed). New records persisted to disk.
UpdateFetchOutcome.THROTTLED 4 totalDurationMillis, lockWaitDurationMillis, processingDurationMillis, callerUid Request blocked by rate limiter (shouldThrottle() returned true). Cached data returned safely to client (fetchDurationMillis is 0).
UpdateFetchOutcome.FAILED 5 totalDurationMillis, lockWaitDurationMillis, processingDurationMillis, fetchDurationMillis, callerUid Update check or network request threw an exception. Caught by exception firewall, fired onFetchFailed(e), returned cached fallback.

Advanced service broker hook: getCallerUid()

When a client connects, UpdateInfoService automatically evaluates getCallerUid() on the initial Binder thread (before calling Binder.clearCallingIdentity() prior to fetchUpdates()), verifies package ownership, and passes the verified caller UID directly to onClientConnected(), onClientDisconnected(), and telemetry.callerUid in onRequestCompleted(telemetry).

For standard Android <service> components, you don't need to call or override getCallerUid(). The protected open getCallerUid() method (which delegates to Binder.getCallingUid() by default) is provided as an override hook for host apps that route Binder IPC through an internal service broker or proxy architecture, letting the subclass return the logical client UID rather than the broker's UID.

Additional resources

For more information about publishing security state, see the following resources:

Documentation

API reference
