Get started with tiles

Stay organized with collections Save and categorize content based on your preferences.

To start providing tiles from your app, include the following dependencies in your app's build.gradle file.

dependencies {
    // Use to implement support for wear tiles
    implementation "androidx.wear.tiles:tiles:1.4.1"

    // Use to utilize standard components and layouts in your tiles
    implementation "androidx.wear.protolayout:protolayout:1.2.1"

    // Use to utilize components and layouts with Material Design in your tiles
    implementation "androidx.wear.protolayout:protolayout-material:1.2.1"

    // Use to include dynamic expressions in your tiles
    implementation "androidx.wear.protolayout:protolayout-expression:1.2.1"

    // Use to preview wear tiles in your own app
    debugImplementation "androidx.wear.tiles:tiles-renderer:1.4.1"

    // Use to fetch tiles from a tile provider in your tests
    testImplementation "androidx.wear.tiles:tiles-testing:1.4.1"
}

dependencies {
    // Use to implement support for wear tiles
    implementation("androidx.wear.tiles:tiles:1.4.1")

    // Use to utilize standard components and layouts in your tiles
    implementation("androidx.wear.protolayout:protolayout:1.2.1")

    // Use to utilize components and layouts with Material Design in your tiles
    implementation("androidx.wear.protolayout:protolayout-material:1.2.1")

    // Use to include dynamic expressions in your tiles
    implementation("androidx.wear.protolayout:protolayout-expression:1.2.1")

    // Use to preview wear tiles in your own app
    debugImplementation("androidx.wear.tiles:tiles-renderer:1.4.1")

    // Use to fetch tiles from a tile provider in your tests
    testImplementation("androidx.wear.tiles:tiles-testing:1.4.1")
}

Key concepts

Tiles aren't built in the same way as Android apps, and make use of different concepts:

• Layout templates: Define the overall arrangement of visual elements on the display. This is accomplished by the primaryLayout() function.
• Layout elements: Represent an individual graphical element, such a button or card, or several such elements grouped together using a column, buttonGroup or similar. These are embedded within a layout template.

• Resources: ResourceBuilders.Resources objects consist of a map of key-value pairs of the Android resources (images) that are required to render a layout, and a version.
• Timeline: A TimelineBuilders.Timeline object is a list of one or more instances of a layout object. You can provide various mechanisms and expressions to indicate when the renderer should switch from one layout object to another, such as to stop showing a layout at a specific time.
• State: A data structure of type StateBuilders.State that is passed between tile and app, to enable the two components to communicate with each other. For example, if a button is tapped on the tile, the state holds the ID of the button. You can also exchange data types using a map.
• Tile: A TileBuilders.Tile object representing a tile, consisting of a timeline, a resources version ID, freshness interval and state.
• Protolayout: This term appears in the name of various tiles-related classes and refers to the Wear OS Protolayout library, a graphics library that's used across various Wear OS surfaces.

Create a tile

To provide a tile from your app, implement a service of type TileService and register it in your manifest. From this, the system requests the necessary tiles during calls to onTileRequest() and resources during calls to onTileResourcesRequest().

class MyTileService : TileService() {

    override fun onTileRequest(requestParams: RequestBuilders.TileRequest) =
        Futures.immediateFuture(
            Tile.Builder()
                .setResourcesVersion(RESOURCES_VERSION)
                .setTileTimeline(
                    Timeline.fromLayoutElement(
                        materialScope(this, requestParams.deviceConfiguration) {
                            primaryLayout(
                                mainSlot = {
                                    text("Hello, World!".layoutString, typography = BODY_LARGE)
                                }
                            )
                        }
                    )
                )
                .build()
        )

    override fun onTileResourcesRequest(requestParams: ResourcesRequest) =
        Futures.immediateFuture(
            Resources.Builder().setVersion(RESOURCES_VERSION).build()
        )
}
Tile.kt

Next, add a service inside the <application> tag of your AndroidManifest.xml file.

<service
    android:name=".snippets.m3.tile.MyTileService"
    android:label="@string/tile_label"
    android:description="@string/tile_description"
    android:icon="@mipmap/ic_launcher"
    android:exported="true"
    android:permission="com.google.android.wearable.permission.BIND_TILE_PROVIDER">
    <intent-filter>
        <action android:name="androidx.wear.tiles.action.BIND_TILE_PROVIDER" />
    </intent-filter>

    <meta-data android:name="androidx.wear.tiles.PREVIEW"
        android:resource="@drawable/tile_preview" />
</service>
AndroidManifest.xml

The permission and intent filter register this service as a tile provider.

The icon, label, description and preview resource is shown to the user when they configure tiles on their phone or watch. Note that the preview resource supports all of Android's standard resource qualifiers, so it's possible to vary the preview according to factors like screen size and device language. See the preview checklist for additional recommendations.

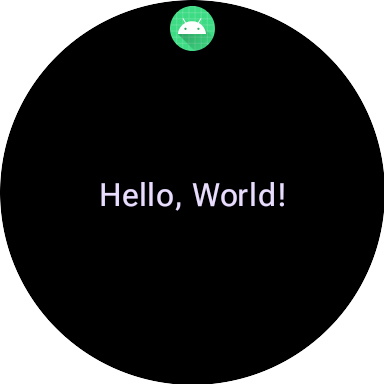

Deploy your app, and add the Tile to the Tiles Carousel (there's are a more developer-friendly way to preview a Tile too, but for now just do it manually).

For a complete example, see the code sample on GitHub or the codelab.

Create UI for tiles

Material 3 Expressive UI elements are created using a structured approach powered by Kotlin's type-safe builder pattern.

Layout

To create your layout, do the following:

1. Initiate a Material Design scope: Call the materialScope() function, providing the required context and deviceConfiguration. You can include optional parameters, such as allowDynamicTheme and defaultColorScheme. The allowDynamicTheme is true by default, and the defaultColorScheme represents the ColorScheme used when dynamic colors are not available—such as when the user has turned the feature off—or when it's not supported by the device, or allowDynamicTheme is false).

2. Build your UI within the scope: All UI components for a given Tile layout must be defined within the lambda of a single top-level materialScope() call. These component functions, such as primaryLayout() and textEdgeButton(), are extension functions on MaterialScope and are only available when called on this receiver scope.

   materialScope(
       context = context,
       deviceConfiguration = requestParams.deviceConfiguration, // requestParams is passed to onTileRequest
       defaultColorScheme = myFallbackColorScheme
   ) {
       // inside the MaterialScope, you can call functions like primaryLayout()
       primaryLayout(
           titleSlot = { text(text = "Title".layoutString) },
           mainSlot = { text(text = "Main Content".layoutString) },
           bottomSlot = { textEdgeButton(text = "Action".layoutString) }
       )
   }


Slots

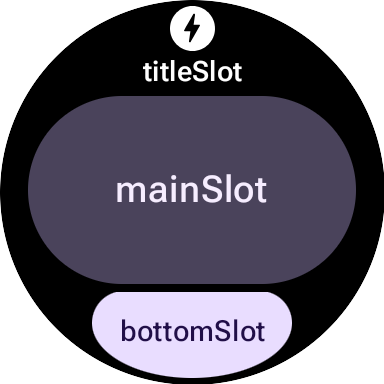

In M3, the tiles layout uses a Compose-inspired approach that makes use of three distinct slots. Running from top to bottom, they are:

1. The titleSlot, typically for a primary title or header.
2. The mainSlot, for the core content.
3. The bottomSlot, often used for actions or supplemental information. This is also where an edge button appears.

The contents of each slot are as follows:

• titleSlot (optional): Typically a few words generated by text().
• mainSlot (mandatory): Components organized into structures like rows, columns and button groups. These components can also be recursively embedded inside each other; for example, a column can contain rows.
• bottomSlot (optional): Typically filled with either an edge-hugging button or a text label.

Because tiles can't be scrolled, there are no components for paging, scrolling, or handling long lists of content. Take care that content remains visible when font size increases or text becomes longer due to translation.

UI components

The protolayout-material3 library provides a large number of components designed according to the Material 3 Expressive specifications and user interface recommendations.

Buttons

• textButton(): button with a single slot for (short) text content
• iconButton(): button with a single slot to represent an icon
• avatarButton(): pill-shaped avatar button that offers up to three slots to take content representing vertically stacked label and secondary label, and an image (avatar) next to it
• imageButton(): clickable image button that doesn't offer additional slots, only image (for example backgroundImage as a background)
• compactButton(): compact button that offers up to two slots to take horizontally stacked content representing an icon and text next to it
• button(): pill shape button that offers up to three slots to take content representing vertically stacked label and secondary label, and an icon next to it

Edge Buttons

• iconEdgeButton(): edge button that offers a single slot to take an icon or similarly round, small content
• textEdgeButton(): edge button that offers a single slot to take a text or similarly long and wide content

Cards

• titleCard(): title card that offers one to three slots, usually text based
• appCard(): app card that offers up to five slots, usually text based
• textDataCard(): data card that offers up to three vertically stacked slots, usually text or numeral based
• iconDataCard(): data card that offers up to three vertically stacked slots, usually text or numeral based, with an icon
• graphicDataCard(): graphic data card that offers a slot for graphic data, such as progress indicator, and up to two vertically stacked slots, usually for text descriptions

Progress Indicators

• circularProgressIndicator(): indicates progress toward a goal using a radial element
• segmentedCircularProgressIndicator(): indicates progress toward a goal using a radial element with distinct stages

Grouping Layout Elements

• buttonGroup(): component-layout that places its children in a horizontal sequence
• primaryLayout(): full screen layout that represents a suggested M3 layout style that is responsive and takes care of the elements' placement, together with the recommended margins and padding applied

Theming

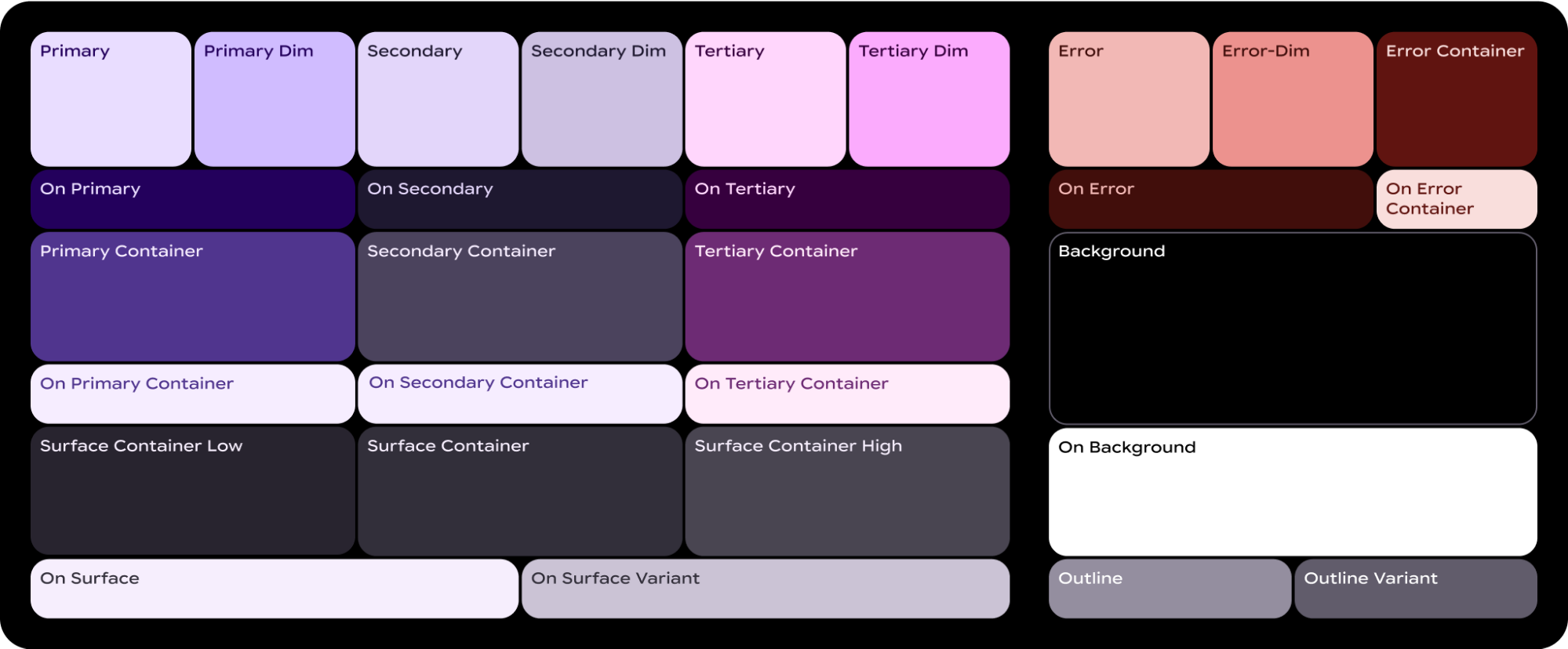

In Material 3 Expressive, the color system is defined by 29 standard color roles, organized into six groups: primary, secondary, tertiary, error, surface, and outline.

A ColorScheme maps each of these 29 roles to a corresponding color, and since it's part of the MaterialScope and components must be created within it, they automatically take colors from the scheme. This approach lets all UI elements automatically adhere to the Material Design standards.

To let users choose between a color scheme you define—such as one that reflects your brand colors—and one provided by the system—either derived from the user's current watch face, or one chosen by the user)—initialize the MaterialScope as follows:

val myColorScheme =
    ColorScheme(
        primary = ...
        onPrimary = ...
        // 27 more
    )

materialScope(
  defaultColorScheme = myColorScheme
) {
  // If the user selects "no theme" in settings, myColorScheme is used.
  // Otherwise, the system-provided theme is used.
}

To force your tiles to appear in the color scheme you provide, disable support for dynamic theming by setting allowDynamicTheme to false:

materialScope(
  allowDynamicTheme = false,
  defaultColorScheme = myColorScheme
) {
  // myColorScheme is *always* used.
}

Color

Each individual component uses a subset of the 29 color roles defined by a ColorScheme. For example, buttons use up to four colors, which by default are taken from the "primary" group of the active ColorScheme:

You might need to deviate from the default color tokens for specific UI elements. For example, you might want one textEdgeButton to use colors from the "secondary" or "tertiary" group, instead of "primary", to stand out and give better contrast.

You can customize component colors in several ways:

1. Use a helper function for predefined colors. Use helper functions like filledTonalButtonColors() to apply the standard button styles for Material 3 Expressive. These functions create pre-configured ButtonColors instances that map common styles like filled, tonal, or outlined to the appropriate roles from the active ColorScheme within the MaterialScope. This lets you apply consistent styles without manually defining each color for common button types.

   textEdgeButton(
       colors = filledButtonColors() // default
       /* OR colors = filledTonalButtonColors() */
       /* OR colors = filledVariantButtonColors() */
       // ... other parameters
   )


   For cards, use the equivalent filledCardColors() family of functions.

   You can also modify the ButtonColors object returned by helper functions using their copy() method if you only need to change one or two tokens:

   textEdgeButton(
       colors =
           filledButtonColors()
               .copy(
                   containerColor = colorScheme.tertiary,
                   labelColor = colorScheme.onTertiary
               )
       // ... other parameters
   )


2. Explicitly provide replacement color roles. Create your own ButtonColors object, and pass it to the component. For cards, use the equivalent CardColors object.

   textEdgeButton(
       colors =
           ButtonColors(
               // the materialScope makes colorScheme available
               containerColor = colorScheme.secondary,
               iconColor = colorScheme.secondaryDim,
               labelColor = colorScheme.onSecondary,
               secondaryLabelColor = colorScheme.onSecondary
           )
       // ... other parameters
   )


3. Specify fixed colors (use with caution). While it's generally recommended to specify colors by their semantic role (e.g., colorScheme.primary), you can also provide direct color values. This approach should be used sparingly, as it can lead to inconsistencies with the overall theme, especially if the theme changes dynamically.

   textEdgeButton(
       colors = filledButtonColors().copy(
           containerColor = android.graphics.Color.RED.argb, // Using named colors
           labelColor = 0xFFFFFF00.argb // Using a hex code for yellow
       )
       // ... other parameters
   )


Typography

To create visual consistency across the Wear OS platform and to optimize performance, all text on tiles is rendered using a system-provided font. That is, tiles do not support custom typefaces. On Wear OS 6 and higher, this is an OEM-specific font. In most cases it will be a variable font, offering a more expressive experience and more granular control.

To create a text style, you usually use the text() method combined with typographic constants. This component lets you make use of predefined typography roles in Material 3 Expressive, which helps your tile adhere to established typographic best practices for readability and hierarchy. The library offers a set of 18 semantic typography constants, such as BODY_MEDIUM. These constants also affect font axes other than size.

text(
    text = "Hello, World!".layoutString,
    typography = BODY_MEDIUM,
)

For more control, you can provide additional settings. On Wear OS 6 and higher, a variable font is likely to be used, which you can modify along the axes italic, weight, width, and roundness. You can control these axes using the settings parameter:

text(
    text = "Hello, World".layoutString,
    italic = true,

    // Use elements defined in androidx.wear.protolayout.LayoutElementBuilders.FontSetting
    settings =
        listOf(weight(500), width(100F), roundness(100)),
)

Finally, if you need to control size or letter spacing (not recommended), use basicText() instead of text(), and construct a value for the fontStyle property using fontStyle().

Shape and margins

You can change the corner radius of almost every component using itsshape property. Values come from the MaterialScope property shapes:

textButton(
   height = expand(),
   width = expand(),
   shape = shapes.medium, // OR another value like shapes.full
   colors = filledVariantButtonColors(),
   labelContent = { text("Hello, World!".layoutString) },
)

After you alter the shape of a component, if you think that it leaves too much or too little space around the edge of the display, adjust the margins using the margin parameter of primaryLayout():

primaryLayout(
    mainSlot = {
        textButton(
            shape = shapes.small,
            /* ... */
        )
    },
    // margin constants defined in androidx.wear.protolayout.material3.PrimaryLayoutMargins
    margins = MAX_PRIMARY_LAYOUT_MARGIN,
)

Arcs

The following Arc container children are supported:

• ArcLine: renders a curved line around the Arc.
• ArcText: renders curved text in the Arc.
• ArcAdapter: renders a basic layout element in the arc, drawn at a tangent to the arc.

For more information, see the reference documentation for each of the element types.

Modifiers

Every available layout element can optionally have modifiers applied to it. Use these modifiers for the following purposes:

• Change the visual appearance of the layout. For example, add a background, border, or padding to your layout element.
• Add metadata about the layout. For example, add a semantics modifier to your layout element for use with screen readers.
• Add functionality. For example, add a clickable modifier to your layout element to make your tile interactive. For more information, see Interact with tiles.

For example, we can customize the default look and metadata of an Image, as shown in the following code sample:

private fun myImage(): LayoutElement =
    Image.Builder()
        .setWidth(dp(24f))
        .setHeight(dp(24f))
        .setResourceId("image_id")
        .setModifiers(Modifiers.Builder()
            .setBackground(Background.Builder().setColor(argb(0xFFFF0000)).build())
            .setPadding(Padding.Builder().setStart(dp(12f)).build())
            .setSemantics(Semantics.builder()
                .setContentDescription("Image description")
                .build()
            ).build()
        ).build()

private LayoutElement myImage() {
   return new Image.Builder()
           .setWidth(dp(24f))
           .setHeight(dp(24f))
           .setResourceId("image_id")
           .setModifiers(new Modifiers.Builder()
                   .setBackground(new Background.Builder().setColor(argb(0xFFFF0000)).build())
                   .setPadding(new Padding.Builder().setStart(dp(12f)).build())
                   .setSemantics(new Semantics.Builder()
                           .setContentDescription("Image description")
                           .build()
                   ).build()
           ).build();
}

Spannables

A Spannable is a special type of container that lays out elements similarly to text. This is useful when you want to apply a different style to only one substring in a larger block of text, something that isn't possible with the Text element.

A Spannable container is filled with Span children. Other children, or nested Spannable instances, aren't allowed.

There are two types of Span children:

• SpanText: renders text with a specific style.
• SpanImage: renders an image inline with text.

For example, you could italicize "world" in a "Hello world" tile and insert an image between the words, as shown in the following code sample:

private fun mySpannable(): LayoutElement =
    Spannable.Builder()
        .addSpan(SpanText.Builder()
            .setText("Hello ")
            .build()
        )
        .addSpan(SpanImage.Builder()
            .setWidth(dp(24f))
            .setHeight(dp(24f))
            .setResourceId("image_id")
            .build()
        )
        .addSpan(SpanText.Builder()
            .setText("world")
            .setFontStyle(FontStyle.Builder()
                .setItalic(true)
                .build())
            .build()
        ).build()

private LayoutElement mySpannable() {
   return new Spannable.Builder()
        .addSpan(new SpanText.Builder()
            .setText("Hello ")
            .build()
        )
        .addSpan(new SpanImage.Builder()
            .setWidth(dp(24f))
            .setHeight(dp(24f))
            .setResourceId("image_id")
            .build()
        )
        .addSpan(new SpanText.Builder()
            .setText("world")
            .setFontStyle(newFontStyle.Builder()
                .setItalic(true)
                .build())
            .build()
        ).build();
}

Work with resources

Tiles don't have access to any of your app's resources. This means that you can't pass an Android image ID to an Image layout element and expect it to resolve. Instead, override the onTileResourcesRequest() method and provide any resources manually.

There are two ways to provide images within the onTileResourcesRequest() method:

• Provide a drawable resource using setAndroidResourceByResId().
• Provide a dynamic image as a ByteArray using setInlineResource().

override fun onTileResourcesRequest(
    requestParams: ResourcesRequest
) = Futures.immediateFuture(
Resources.Builder()
    .setVersion("1")
    .addIdToImageMapping("image_from_resource", ImageResource.Builder()
        .setAndroidResourceByResId(AndroidImageResourceByResId.Builder()
            .setResourceId(R.drawable.image_id)
            .build()
        ).build()
    )
    .addIdToImageMapping("image_inline", ImageResource.Builder()
        .setInlineResource(InlineImageResource.Builder()
            .setData(imageAsByteArray)
            .setWidthPx(48)
            .setHeightPx(48)
            .setFormat(ResourceBuilders.IMAGE_FORMAT_RGB_565)
            .build()
        ).build()
    ).build()
)

@Override
protected ListenableFuture<Resources> onTileResourcesRequest(
       @NonNull ResourcesRequest requestParams
) {
return Futures.immediateFuture(
    new Resources.Builder()
        .setVersion("1")
        .addIdToImageMapping("image_from_resource", new ImageResource.Builder()
            .setAndroidResourceByResId(new AndroidImageResourceByResId.Builder()
                .setResourceId(R.drawable.image_id)
                .build()
            ).build()
        )
        .addIdToImageMapping("image_inline", new ImageResource.Builder()
            .setInlineResource(new InlineImageResource.Builder()
                .setData(imageAsByteArray)
                .setWidthPx(48)
                .setHeightPx(48)
                .setFormat(ResourceBuilders.IMAGE_FORMAT_RGB_565)
                .build()
            ).build()
        ).build()
);
}

Tile preview image checklist

The system displays the tile preview image, referenced in the Android app manifest, in the tile carousel editor. This editor appears both on Wear OS devices and in the watch companion app on phones.

To help users make the most of this preview image, verify the following details about your tile:

• Reflects the latest design. The preview should accurately represent your tile's most current design.
• Uses a static color theme. Use the tile's static color theme, not a dynamic one.
• Includes app icon. Confirm that your app's icon appears at the top of the preview image.
• Shows loaded/logged-in state. The preview should display a fully functional "loaded" or "logged-in" state, avoiding any empty or placeholder content.
• Leverage resource resolution rules for customization (optional). Consider using Android's resource resolution rules to provide previews that match the device's display size, language, or locale settings. This is particularly useful if your tile's appearance varies across devices.
