Google Play 內嵌安裝（SDK）

本頁說明第三方 SDK 如何整合內嵌安裝功能。這項 Google Play 的全新測試功能會以半頁介面顯示 Google Play 應用程式產品詳細資料。內嵌安裝功能可讓使用者在不離開應用程式的情況下，順暢地安裝應用程式。

第三方 SDK 開發人員可將內嵌安裝功能整合至 SDK，讓使用這些 SDK 的應用程式開發人員，為自己的應用程式啟用內嵌安裝功能。

需求條件

如要在應用程式中顯示內嵌安裝半頁介面，請按照下列步驟操作：

Google Play 最低版本須為 40.4。
Android API 級別必須為 23 以上。

程序架構

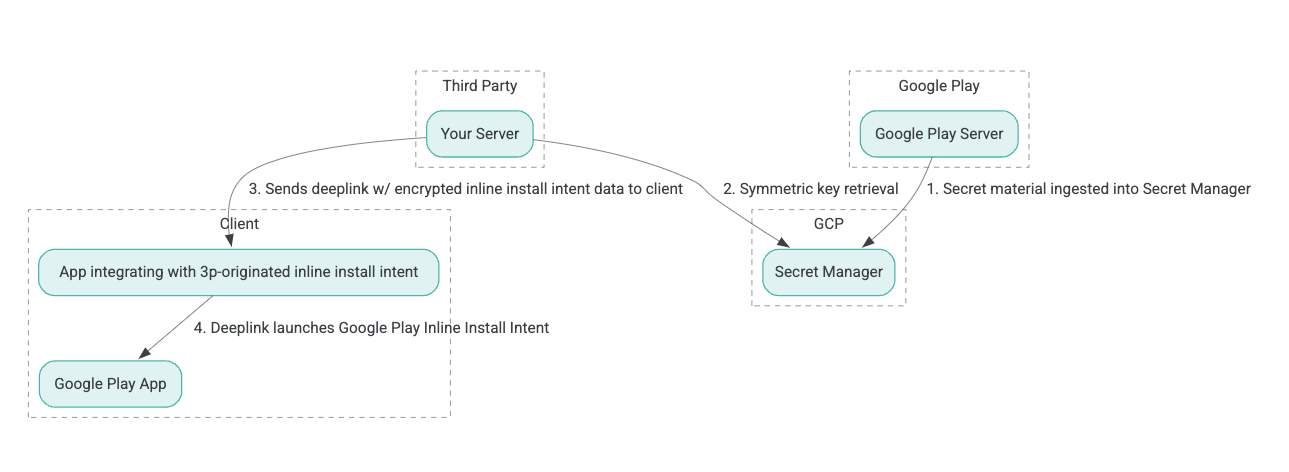

內嵌安裝程序架構如下圖所示：

Google Play 伺服器會產生「經過驗證的加密與相關資料」(AEAD) 加密金鑰，並將金鑰匯入 Google Cloud Platform (GCP) Secret Manager 執行個體。
第三方整合者會從 GCP Secret Manager 擷取 AEAD 金鑰。
第三方整合商會加密內嵌安裝 Intent 資料，產生用於叫用內嵌安裝意圖的深層連結中傳遞的密文，並在回應中將深層連結傳送給用戶端。
當深層連結被追蹤時，Google Play 應用程式會處理意圖。

如要設定第三方 SDK，以便使用內嵌安裝程序，請完成下列步驟。

在 Google Cloud 專案中建立服務帳戶

在這個步驟中，您將使用 Google Cloud 控制台設定服務帳戶。

設定 Google Cloud 專案：
- 建立 Google Cloud 組織。建立 Google Workspace 或 Cloud Identity 帳戶，並與網域名稱建立關聯後，系統就會自動建立機構資源。詳情請參閱「建立及管理機構資源」。
- 使用上一個步驟建立的 Google Cloud 帳戶登入 GCP 控制台，然後建立 Google Cloud 專案。詳情請參閱「建立 Google Cloud 專案」。
在建立的 Google Cloud 專案中建立服務帳戶。服務帳戶會做為 Google Cloud Identity，代表伺服器存取對稱金鑰。詳情請參閱「建立服務帳戶」。
使用在意願表單中輸入的 Google Workspace 客戶 ID (GWCID) / Dasher ID。
建立並下載該服務帳戶的私密金鑰。
為該服務帳戶建立金鑰。詳情請參閱「建立服務帳戶金鑰」。
下載服務帳戶金鑰，並確保伺服器可存取該金鑰，因為系統會使用這組金鑰進行驗證，以存取對稱金鑰的 Google Cloud 資源。詳情請參閱「取得服務帳戶金鑰」。

擷取憑證

在這個步驟中，您會從 Secret Manager 擷取對稱金鑰，並安全地儲存在自己的伺服器儲存空間中 (例如 JSON 檔案)。這個金鑰用於產生內嵌安裝資料密文。

secret_id/secretId 值是指 Secret Manager 內的密鑰名稱；這個名稱是將 hsdp-3p-key- 前置字串加到 Play 提供的 sdk_id 值所產生。舉例來說，如果 sdk_id 是 abc，密碼名稱就是 hsdp-3p-key-abc。

祕密版本會在每週二下午 2 點 (世界標準時間) 更新。第二新的金鑰會繼續運作，直到下次輪替為止，且金鑰內容應每週重新擷取及儲存。

Python 範例

下列程式碼範例會使用儲存在 JSON 檔案中的存取權杖，存取 GCP Secret Manager 中的金鑰素材，並將其列印到控制台。

#!/usr/bin/env python3
# Import the Secret Manager client library.
from google.cloud import secretmanager
from google.oauth2 import service_account
import google_crc32c

# Create a service account key file.
service_account_key_file = "<json key file of the service account>"
credentials = service_account.Credentials.from_service_account_file(service_account_key_file)

# Create the Secret Manager client.
client = secretmanager.SecretManagerServiceClient(
  credentials=credentials
)

# Build the resource name of the secret version.
name = f"projects/prod-play-hsdp-3p-caller-auth/secrets/<secret_id>/versions/latest"

# Access the secret version.
response = client.access_secret_version(request={"name": name})

# Verify payload checksum.
crc32c = google_crc32c.Checksum()
crc32c.update(response.payload.data)
if response.payload.data_crc32c != int(crc32c.hexdigest(), 16):
    print("Data corruption detected.")

# A keyset created with "tinkey create-keyset --key-template=AES256_GCM". Note
# that this keyset has the secret key information in cleartext.
keyset = response.payload.data.decode("UTF-8")

# WARNING: Do not print the secret in a production environment. Please store it
# in a secure storage.
with open('<key file name>', 'w') as f:
    f.write(keyset)

Java 範例

下列程式碼範例會使用儲存在 JSON 檔案中的存取權杖，存取 GCP Secret Manager 中的金鑰資料，並將其寫入 JSON 檔案。

import static java.nio.charset.StandardCharsets.UTF_8;
import com.google.api.gax.core.CredentialsProvider;
import com.google.api.gax.core.FixedCredentialsProvider;
import com.google.auth.oauth2.ServiceAccountCredentials;
import com.google.cloud.secretmanager.v1.AccessSecretVersionResponse;
import com.google.cloud.secretmanager.v1.SecretManagerServiceClient;
import com.google.cloud.secretmanager.v1.SecretManagerServiceSettings;
import com.google.cloud.secretmanager.v1.SecretVersionName;
import java.io.FileInputStream;
import java.io.IOException;
import java.io.PrintWriter;
import java.nio.file.Files;
import java.nio.file.Paths;
import java.util.zip.CRC32C;
import java.util.zip.Checksum;

/** */
final class ThirdPartySecretAccessGuide {

  private ThirdPartySecretAccessGuide() {}

  public static void main(String[] args) throws IOException {
    accessSecretVersion();
  }

  public static void accessSecretVersion() throws IOException {
    // TODO(developer): Replace these variables before running the sample.
    String projectId = "projectId";
    String secretId = "secretId";
    String versionId = "versionId";
    String accessTokenPrivateKeyPath = "path/to/credentials.json";
    String secretMaterialOutputPath = "path/to/secret.json";
    accessSecretVersion(
        projectId, secretId, versionId, accessTokenPrivateKeyPath, secretMaterialOutputPath);
  }

  // Access the payload for the given secret version if one exists. The version
  // can be a version number as a string (e.g. "5") or an alias (e.g. "latest").
  public static void accessSecretVersion(
      String projectId,
      String secretId,
      String versionId,
      String accessTokenPrivateKeyPath,
      String secretMaterialOutputPath)
      throws IOException {

    // We can explicitly instantiate the SecretManagerServiceClient (below) from a json file if we:
    // 1. Create a CredentialsProvider from a FileInputStream of the JSON file,
    CredentialsProvider credentialsProvider =
        FixedCredentialsProvider.create(
            ServiceAccountCredentials.fromStream(new FileInputStream(accessTokenPrivateKeyPath)));

    // 2. Build a SecretManagerService Settings object from that credentials provider, and
    SecretManagerServiceSettings secretManagerServiceSettings =
        SecretManagerServiceSettings.newBuilder()
            .setCredentialsProvider(credentialsProvider)
            .build();

    // 3. Initialize client that will be used to send requests by passing the settings object to
    // create(). This client only needs to be created once, and can be reused for multiple requests.
    // After completing all of your requests, call the "close" method on the client to safely clean
    // up any remaining background resources.
    try (SecretManagerServiceClient client =
        SecretManagerServiceClient.create(secretManagerServiceSettings)) {
      SecretVersionName secretVersionName = SecretVersionName.of(projectId, secretId, versionId);

      // Access the secret version.
      AccessSecretVersionResponse response = client.accessSecretVersion(secretVersionName);

      // Verify checksum. The used library is available in Java 9+.
      // If using Java 8, you may use the following:
      // https://github.com/google/guava/blob/e62d6a0456420d295089a9c319b7593a3eae4a83/guava/src/com/google/common/hash/Hashing.java#L395
      byte[] data = response.getPayload().getData().toByteArray();
      Checksum checksum = new CRC32C();
      checksum.update(data, 0, data.length);
      if (response.getPayload().getDataCrc32C() != checksum.getValue()) {
        System.out.printf("Data corruption detected.");
        return;
      }

      String payload = response.getPayload().getData().toStringUtf8();
      // Print the secret payload.
      //
      // WARNING: Do not print the secret in a production environment - this
      // snippet is showing how to access the secret material.
      System.out.printf("Plaintext: %s\n", payload);

      // Write the JSON secret material payload to a json file
      try (PrintWriter out =
          new PrintWriter(Files.newBufferedWriter(Paths.get(secretMaterialOutputPath), UTF_8))) {
        out.write(payload);
      } catch (Exception e) {
        e.printStackTrace();
      }
    }
  }
}

設定應用程式預設憑證

如果您不想在 Java 實作中，使用 CredentialsProvider 將私密金鑰傳遞至 JSON 檔案，可以設定應用程式預設憑證 (ADC) 來修改實作：

告知用戶端程式庫服務帳戶金鑰的位置。
將 Maven 依附元件新增至 Java 專案。
呼叫 SecretManagerServiceClient.create()，系統會自動擷取驗證資訊 (因為步驟 1)。

這些步驟會透過下列方式修改 Java 實作：

不必建立 CredentialsProvider 和 SecretManagerServiceSettings 物件。
將呼叫變更為 SecretManagerServiceClient.create()，不含任何引數。

建立密文並產生深層連結

在這個步驟中，您會使用 Tink 密碼學程式庫，從 InlineInstallData protobuf 物件建立 enifd (InlineInstallData 密文)。InlineInstallData Proto 的定義如下：

syntax = "proto2";
package hsdpexperiments;
option java_package = "com.google.hsdpexperiments";
option java_multiple_files = true;

// InlineInstallData is used by 3p auth callers to generate "encrypted inline
// flow data" (enifd) which is decrypted in PGS to verify authenticity and
// freshness.
message InlineInstallData {
  // The timestamp which indicates the time encrypted data is generated.
  // Used to validate freshness (i.e. generation time in past 4 hours).
  // Required.
  optional int64 timestamp_ms = 1;

  // The docid of the app that we want to open inline install page for.
  // This is the package name.
  // Required.
  optional string target_package_name = 2;

  // This is the name of the app requesting the ad from Google Ad Serving
  // system.
  // Required.
  optional string caller_package_name = 3;

  // This is the advertising id that will be collected by 3P Ad SDKs.
  // Optional.
  optional string advertising_id = 4;

  // This is used to indicate the network from where the inline install was
  // requested.
  // Required.
  optional string ad_network_id = 5;
}

在這個步驟中，您也會使用下列參數建構深層連結網址：

欄位	說明	必填
id	要安裝的應用程式套件名稱。	是
內嵌	如果要求內嵌安裝半頁，請設為 `true`；如果為 `false`，意圖會深層連結至 Google Play。	是
enifd	第三方 SDK 的加密 ID。	是
lft	內部 ID。	是
3pAuthCallerId	SDK ID。	是
商店資訊	選用參數，用於指定自訂商店資訊的目標。	否
推薦人	選用的推薦連結追蹤字串。	否

Python 範例

下列指令會從 InlineInstallData.proto 生成 Python 程式碼：

protoc InlineInstallData.proto --python_out=.

下列 Python 程式碼範例會建構 InlineInstallData，並使用對稱金鑰加密，建立密文：

#!/usr/bin/env python3

# Import the Secret Manager client library.
import base64
import time
import inline_install_data_pb2 as InlineInstallData
import tink
from tink import aead
from tink import cleartext_keyset_handle

# Read the stored symmetric key.
with open("example3psecret.json", "r") as f:
  keyset = f.read()

"""Encrypt and decrypt using AEAD."""
# Register the AEAD key managers. This is needed to create an Aead primitive later.
aead.register()

# Create a keyset handle from the cleartext keyset in the previous
# step. The keyset handle provides abstract access to the underlying keyset to
# limit access of the raw key material. WARNING: In practice, it is unlikely
# you will want to use a cleartext_keyset_handle, as it implies that your key
# material is passed in cleartext, which is a security risk.
keyset_handle = cleartext_keyset_handle.read(tink.JsonKeysetReader(keyset))

# Retrieve the Aead primitive we want to use from the keyset handle.
primitive = keyset_handle.primitive(aead.Aead)

inlineInstallData = InlineInstallData.InlineInstallData()
inlineInstallData.timestamp_ms = int(time.time() * 1000)
inlineInstallData.target_package_name = "x.y.z"
inlineInstallData.caller_package_name = "a.b.c"
inlineInstallData.ad_network_id = "<sdk_id>"

# Use the primitive to encrypt a message. In this case the primary key of the
# keyset will be used (which is also the only key in this example).
ciphertext = primitive.encrypt(inlineInstallData.SerializeToString(), b'<sdk_id>')
print(f"InlineInstallData Ciphertext: {ciphertext}")

# Base64 Encoded InlineInstallData Ciphertext
enifd = base64.urlsafe_b64encode(ciphertext).decode('utf-8')
print(enifd)

# Deeplink
print(f"https://play.google.com/d?id={inlineInstallData.target_package_name}\&inline=true\&enifd={enifd}\&lft=1\&3pAuthCallerId={inlineInstallData.ad_network_id}")

執行下列指令，執行 Python 指令碼：

python <file_name>.py

Java 範例

下列指令會從 InlineInstallData.proto 產生 Java 程式碼：

protoc InlineInstallData.proto --java_out=.

下列 Java 程式碼範例會建構 InlineInstallData，並使用對稱金鑰加密，建立密文：

package com.google.hsdpexperiments;

import static com.google.common.io.BaseEncoding.base64Url;
import static java.nio.charset.StandardCharsets.UTF_8;

import com.google.common.flags.Flag;
import com.google.common.flags.FlagSpec;
import com.google.common.flags.Flags;
import com.google.crypto.tink.Aead;
import com.google.crypto.tink.InsecureSecretKeyAccess;
import com.google.crypto.tink.KeysetHandle;
import com.google.crypto.tink.TinkJsonProtoKeysetFormat;
import com.google.crypto.tink.aead.AeadConfig;
import java.nio.file.Files;
import java.nio.file.Path;
import java.nio.file.Paths;
import java.security.Security;
import java.time.Duration;
import org.conscrypt.Conscrypt;

/** info on encryption in https://github.com/google/tink#learn-more */
final class ThirdPartyEnifdGuide {

  @FlagSpec(
      name = "third_party_id",
      help = "the identifier associated with the 3p for which to generate the enifd")
  private static final Flag<String> thirdPartyAuthCallerId = Flag.value("");

  @FlagSpec(name = "package_name", help = "the package name of the target app")
  private static final Flag<String> packageName = Flag.value("");


  @FlagSpec(name = "caller_package_name", help = "the package name of the caller app")
  private static final Flag<String> callerPackageName = Flag.value("");

  @FlagSpec(name = "secret_filename", help = "the path to the json file with the secret material")
  private static final Flag<String> secretFilename = Flag.value("");

  private ThirdPartyEnifdGuide() {}

  public static void main(String[] args) throws Exception {
    // parse flags
    Flags.parse(args);

    // File keyFile = new File(args[0]);
    Path keyFile = Paths.get(secretFilename.get());

    // Create structured inline flow data
    InlineInstallData idrp =
        InlineInstallData.newBuilder()
            .setTargetPackageName(packageName.get())
            .setCallerPackageName(callerPackageName.get())
            .setTimestampMs(System.currentTimeMillis())
            .setAdNetworkId(thirdPartyAuthCallerId.get())
            .build();

    // we can print this out here to make sure it's well formatted, this will help debug
    System.out.println(idrp.toString());

    // Register all AEAD key types with the Tink runtime.
    Conscrypt.checkAvailability();
    Security.addProvider(Conscrypt.newProvider());
    AeadConfig.register();

    // Read AEAD key downloaded from secretmanager into keysethandle
    KeysetHandle handle =
        TinkJsonProtoKeysetFormat.parseKeyset(
            new String(Files.readAllBytes(keyFile), UTF_8), InsecureSecretKeyAccess.get());

    // Generate enifd using tink library
    Aead aead = handle.getPrimitive(Aead.class);
    byte[] plaintext = idrp.toByteArray();
    byte[] ciphertext = aead.encrypt(plaintext, thirdPartyAuthCallerId.get().getBytes(UTF_8));
    String enifd = base64Url().omitPadding().encode(ciphertext);

    // Build deeplink, escaping ampersands (TODO: verify this is necessary while testing e2e)
    String deeplink =
        "https://play.google.com/d?id="
            + packageName.get()
            + "\\&inline=true\\&enifd="
            + enifd
            + "\\&lft=1\\&3pAuthCallerId="
            + thirdPartyAuthCallerId.get();

    System.out.println(deeplink);
  }
}

最後，將 Java 程式建構為二進位檔，並使用下列程式碼叫用：

path/to/binary/ThirdPartyEnifdGuide --secret_filename=path/to/jsonfile/example3psecret.json --package_name=<package_name_of_target_app> --third_party_id=<3p_caller_auth_id>

secret_filename 旗標會指定包含密碼素材的 JSON 檔案路徑。
package_name 標記是目標應用程式的文件 ID。
third_party_id 旗標用於指定第三方呼叫端授權 ID (即 <sdk_id>)。

啟動內嵌安裝意圖

如要測試上一個步驟中產生的深層連結，請將 Android 裝置 (確認已啟用 USB 偵錯) 連接至已安裝 ADB 的工作站，然後執行下列指令：

adb shell am start "<output_from_the_previous_python_or_java_code>"

在用戶端程式碼中，使用下列其中一種方法 (Kotlin 或 Java) 傳送意圖。

Kotlin

val intent = Intent(Intent.ACTION_VIEW)
val deepLinkUrl = "<output_from_the_previous_python_or_java_code>"
intent.setPackage("com.android.vending")
intent.data = Uri.parse(deepLinkUrl)
val packageManager = context.getPackageManager()
if (intent.resolveActivity(packageManager) != null) {
  startActivityForResult(intent, 0)
} else {
  // Fallback to deep linking to full Play Store.
}

Java

Intent intent = new Intent(Intent.ACTION_VIEW);
String id = "exampleAppToBeInstalledId";
String deepLinkUrl = "<output_from_the_previous_python_or_java_code>";
intent.setPackage("com.android.vending");
intent.setData(Uri.parse(deepLinkUrl));
PackageManager packageManager = context.getPackageManager();
if (intent.resolveActivity(packageManager) != null) {
  startActivityForResult(intent, 0);
} else {
  // Fallback to deep linking to full Play Store.
}

附錄

下列各節針對特定用途提供額外指引。

準備 Python 環境

如要執行 Python 程式碼範例，請在工作站上設定 Python 環境，並安裝必要依附元件。

設定 Python 環境：
1. 安裝 python3.11 (如已安裝，請略過這個步驟)：
```
sudo apt install python3.11
```
2. 安裝 pip：
```
sudo apt-get install pip
```
3. 安裝 virtualenv：
```
sudo apt install python3-virtualenv
```
4. 建立虛擬環境 (Tink 依附元件需要)：
```
virtualenv inlineinstall --python=/usr/bin/python3.11
```
進入虛擬環境：
```
source inlineinstall/bin/activate
```
更新 pip：
```
python -m pip install --upgrade pip
```

安裝必要依附元件：

安裝 Tink：
```
pip install tink
```
安裝 Google crc32c：
```
pip install google-crc32c
```

安裝 Secret Manager：

pip install google-cloud-secret-manager

安裝 protobuf 編譯器：
```
sudo apt install protobuf-compiler
```

產生 C++ enifd

以下是我們在內部編寫及驗證的 C++ 範例，可產生 enifd。

您可以使用下列 C++ 程式碼產生 enifd：

// A command-line example for using Tink AEAD w/ key template aes128gcmsiv to
// encrypt an InlineInstallData proto.
#include <chrono>
#include <iostream>
#include <memory>
#include <string>

#include "<path_to_protoc_output>/inline_install_data.proto.h"
#include "absl/flags/flag.h"
#include "absl/flags/parse.h"
#include "absl/strings/escaping.h"
#include "absl/strings/string_view.h"
#include "tink/cc/aead.h"
#include "tink/cc/aead_config.h"
#include "tink/cc/aead_key_templates.h"
#include "tink/cc/config/global_registry.h"
#include "tink/cc/examples/util/util.h"
#include "tink/cc/keyset_handle.h"
#include "tink/cc/util/status.h"
#include "tink/cc/util/statusor.h"

ABSL_FLAG(std::string, keyset_filename, "",
          "Keyset file (downloaded from secretmanager) in JSON format");
ABSL_FLAG(std::string, associated_data, "",
          "Associated data for AEAD (default: empty");

namespace {

using ::crypto::tink::Aead;
using ::crypto::tink::AeadConfig;
using ::crypto::tink::KeysetHandle;
using ::crypto::tink::util::Status;
using ::crypto::tink::util::StatusOr;

}  // namespace

namespace tink_cc_examples {

// AEAD example CLI implementation.
void AeadCli(const std::string& keyset_filename,
             absl::string_view associated_data) {
  Status result = AeadConfig::Register();
  if (!result.ok()) {
    std::clog << "Failed to register AeadConfig";
    return;
  }

  // Read the keyset from file.
  StatusOr<std::unique_ptr<KeysetHandle>> keyset_handle =
      ReadJsonCleartextKeyset(keyset_filename);
  if (!keyset_handle.ok()) {
    std::clog << "Failed to read json keyset";
    return;
  }

  // Get the primitive.
  StatusOr<std::unique_ptr<Aead>> aead =
      (*keyset_handle)
          ->GetPrimitive<crypto::tink::Aead>(
              crypto::tink::ConfigGlobalRegistry());
  if (!aead.ok()) {
    std::clog << "Failed to get primitive";
    return;
  }

  // Instantiate the enifd.
  hsdpexperiments::InlineInstallData iid;

  iid.set_timestamp_ms(std::chrono::duration_cast<std::chrono::milliseconds>(
                           std::chrono::system_clock::now().time_since_epoch())
                           .count());
  iid.set_target_package_name("<TARGET_PACKAGE_NAME>");
  iid.set_caller_package_name("<CALLER_PACKAGE_NAME>");
  iid.set_ad_network_id("<SDK_ID>");

  // Compute the output.
  StatusOr<std::string> encrypt_result =
      (*aead)->Encrypt(iid.SerializeAsString(), associated_data);
  if (!encrypt_result.ok()) {
    std::clog << "Failed to encrypt Inline Install Data";
    return;
  }
  const std::string& output = encrypt_result.value();

  std::string enifd;
  absl::WebSafeBase64Escape(output, &enifd);

  std::clog << "enifd: " << enifd << '\n';
}

}  // namespace tink_cc_examples

int main(int argc, char** argv) {
  absl::ParseCommandLine(argc, argv);

  std::string keyset_filename = absl::GetFlag(FLAGS_keyset_filename);
  std::string associated_data = absl::GetFlag(FLAGS_associated_data);

  std::clog << "Using keyset from file " << keyset_filename
            << " to AEAD-encrypt inline install data with associated data '"
            << associated_data << "'." << '\n';

  tink_cc_examples::AeadCli(keyset_filename, associated_data);
  return 0;
}

這段程式碼改編自範例，您可以在 Tink 文件中找到該範例。

Google Play 內嵌安裝（SDK） 透過集合功能整理內容 你可以依據偏好儲存及分類內容。

需求條件

程序架構

在 Google Cloud 專案中建立服務帳戶

擷取憑證

Python 範例

Java 範例

設定應用程式預設憑證

建立密文並產生深層連結

Python 範例

Java 範例

啟動內嵌安裝意圖

Kotlin

Java

附錄

準備 Python 環境

產生 C++ enifd

Google Play 內嵌安裝（SDK）
