Jetpack Compose로 XR용 공간 UI 개발

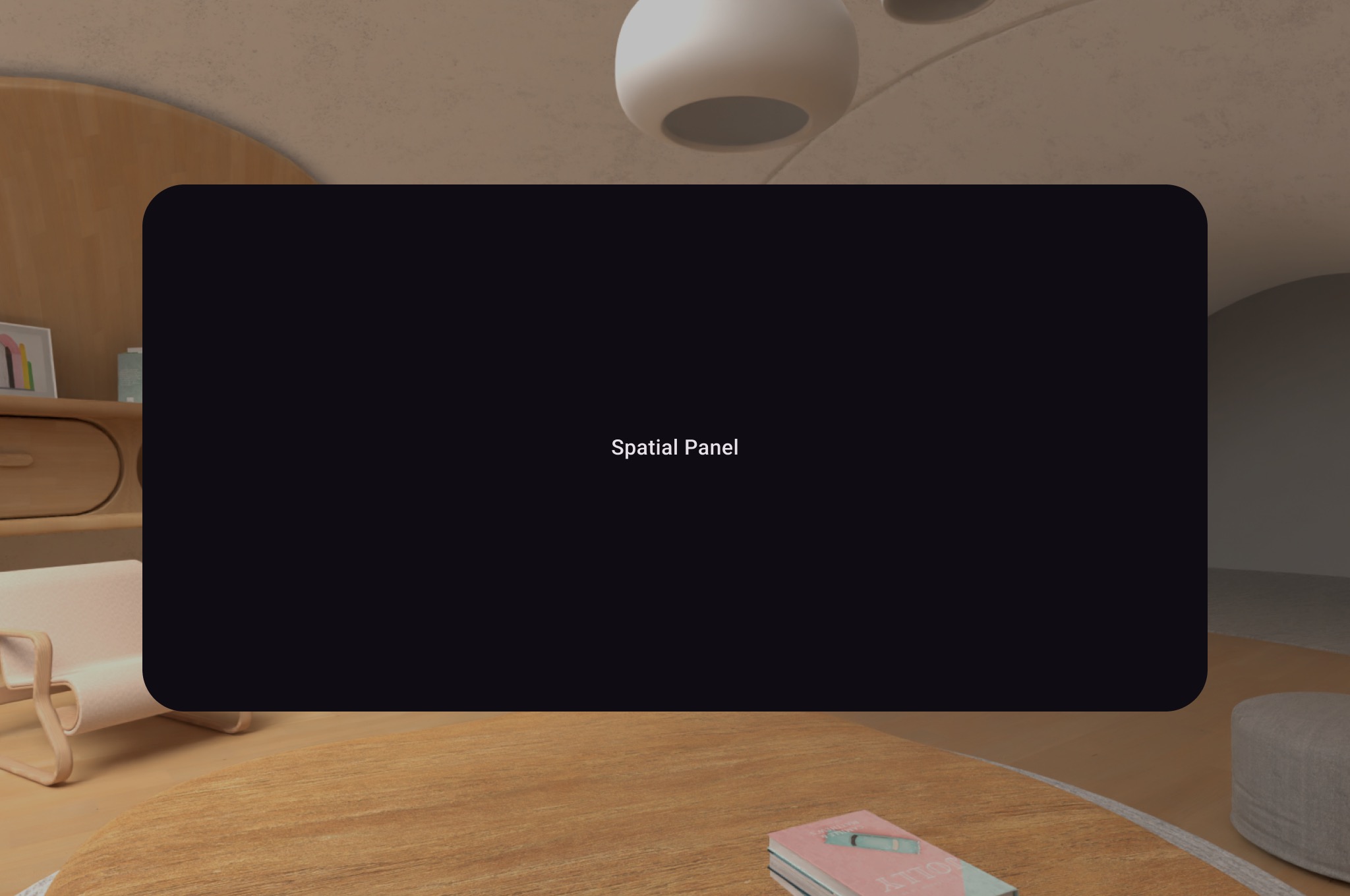

Subspace {
    SpatialPanel(
        SubspaceModifier
            .height(824.dp)
            .width(1400.dp),
        dragPolicy = MovePolicy(),
        resizePolicy = ResizePolicy(),
    ) {
        SpatialPanelContent()
    }
}
SpatialPanel.kt

@Composable
fun SpatialPanelContent() {
    Box(
        Modifier
            .background(color = Color.Black)
            .height(500.dp)
            .width(500.dp),
        contentAlignment = Alignment.Center
    ) {
        Text(
            text = "Spatial Panel",
            color = Color.White,
            fontSize = 25.sp
        )
    }
}
SpatialPanel.kt

Subspace {
    SpatialPanel(
        SubspaceModifier
            .height(824.dp)
            .width(1400.dp),
        dragPolicy = MovePolicy(),
        resizePolicy = ResizePolicy(),
    ) {
        SpatialPanelContent()
        OrbiterExample()
    }
}
Orbiter.kt

@Composable
fun OrbiterExample() {
    Orbiter(
        position = ContentEdge.Bottom,
        offset = 96.dp,
        alignment = Alignment.CenterHorizontally
    ) {
        Surface(Modifier.clip(CircleShape)) {
            Row(
                Modifier
                    .background(color = Color.Black)
                    .height(100.dp)
                    .width(600.dp),
                horizontalArrangement = Arrangement.Center,
                verticalAlignment = Alignment.CenterVertically
            ) {
                Text(
                    text = "Orbiter",
                    color = Color.White,
                    fontSize = 50.sp
                )
            }
        }
    }
}
Orbiter.kt

Subspace {
    SpatialRow {
        SpatialColumn {
            SpatialPanel(SubspaceModifier.height(250.dp).width(400.dp)) {
                SpatialPanelContent("Top Left")
            }
            SpatialPanel(SubspaceModifier.height(200.dp).width(400.dp)) {
                SpatialPanelContent("Middle Left")
            }
            SpatialPanel(SubspaceModifier.height(250.dp).width(400.dp)) {
                SpatialPanelContent("Bottom Left")
            }
        }
        SpatialColumn {
            SpatialPanel(SubspaceModifier.height(250.dp).width(400.dp)) {
                SpatialPanelContent("Top Right")
            }
            SpatialPanel(SubspaceModifier.height(200.dp).width(400.dp)) {
                SpatialPanelContent("Middle Right")
            }
            SpatialPanel(SubspaceModifier.height(250.dp).width(400.dp)) {
                SpatialPanelContent("Bottom Right")
            }
        }
    }
}
SpatialLayout.kt

@Composable
fun SpatialPanelContent(text: String) {
    Column(
        Modifier
            .background(color = Color.Black)
            .fillMaxSize(),
        horizontalAlignment = Alignment.CenterHorizontally,
        verticalArrangement = Arrangement.Center
    ) {
        Text(
            text = "Panel",
            color = Color.White,
            fontSize = 15.sp
        )
        Text(
            text = text,
            color = Color.White,
            fontSize = 25.sp,
            fontWeight = FontWeight.Bold
        )
    }
}
SpatialLayout.kt

val modelState = rememberSpatialGltfModelState(
    source = SpatialGltfModelSource.fromPath(
        Paths.get("models/model_name.glb")
    )
)
SpatialGltfModel.kt

SpatialGltfModel(state = modelState, modifier = SubspaceModifier)
SpatialGltfModel.kt

Subspace {
    SceneCoreEntity(
        modifier = SubspaceModifier.offset(x = 50.dp),
        factory = {
            SurfaceEntity.create(
                session = session,
                pose = Pose.Identity,
                stereoMode = SurfaceEntity.StereoMode.MONO
            )
        },
        update = { entity ->
            // compose state changes may be applied to the
            // SceneCore entity here.
            entity.stereoMode = SurfaceEntity.StereoMode.SIDE_BY_SIDE
        },
        sizeAdapter =
            SceneCoreEntitySizeAdapter({
                IntSize2d(it.width, it.height)
            }),
    ) {
        // Content here will be children of the SceneCoreEntity
        // in the scene graph.
    }
}
SceneCoreEntity.kt

@OptIn(ExperimentalComposeApi::class)
@Composable
fun SpatialExternalSurfaceContent() {
    val context = LocalContext.current
    Subspace {
        SpatialExternalSurface(
            modifier = SubspaceModifier
                .width(1200.dp) // Default width is 400.dp if no width modifier is specified
                .height(676.dp), // Default height is 400.dp if no height modifier is specified
            // Use StereoMode.Mono, StereoMode.SideBySide, or StereoMode.TopBottom, depending
            // upon which type of content you are rendering: monoscopic content, side-by-side stereo
            // content, or top-bottom stereo content
            stereoMode = StereoMode.SideBySide,
        ) {
            val exoPlayer = remember { ExoPlayer.Builder(context).build() }
            val videoUri = Uri.Builder()
                .scheme(ContentResolver.SCHEME_ANDROID_RESOURCE)
                // Represents a side-by-side stereo video, where each frame contains a pair of
                // video frames arranged side-by-side. The frame on the left represents the left
                // eye view, and the frame on the right represents the right eye view.
                .path("sbs_video.mp4")
                .build()
            val mediaItem = MediaItem.fromUri(videoUri)

            // onSurfaceCreated is invoked only one time, when the Surface is created
            onSurfaceCreated { surface ->
                exoPlayer.setVideoSurface(surface)
                exoPlayer.setMediaItem(mediaItem)
                exoPlayer.prepare()
                exoPlayer.play()
            }
            // onSurfaceDestroyed is invoked when the SpatialExternalSurface composable and its
            // associated Surface are destroyed
            onSurfaceDestroyed { exoPlayer.release() }
        }
    }
}
SpatialExternalSurface.kt

@OptIn(ExperimentalComposeApi::class)
@Composable
fun DrmSpatialVideoPlayer() {
    val context = LocalContext.current
    Subspace {
        SpatialExternalSurface(
            modifier = SubspaceModifier
                .width(1200.dp)
                .height(676.dp),
            stereoMode = StereoMode.SideBySide,
            surfaceProtection = SurfaceProtection.Protected
        ) {
            val exoPlayer = remember { ExoPlayer.Builder(context).build() }

            // Define the URI for your DRM-protected content and license server.
            val videoUri = "https://your-content-provider.com/video.mpd"
            val drmLicenseUrl = "https://your-license-server.com/license"

            // Build a MediaItem with the necessary DRM configuration.
            val mediaItem = MediaItem.Builder()
                .setUri(videoUri)
                .setDrmConfiguration(
                    MediaItem.DrmConfiguration.Builder(C.WIDEVINE_UUID)
                        .setLicenseUri(drmLicenseUrl)
                        .build()
                )
                .build()

            onSurfaceCreated { surface ->
                // The created surface is secure and can be used by the player.
                exoPlayer.setVideoSurface(surface)
                exoPlayer.setMediaItem(mediaItem)
                exoPlayer.prepare()
                exoPlayer.play()
            }

            onSurfaceDestroyed { exoPlayer.release() }
        }
    }
}
SpatialExternalSurface.kt

@Composable
fun DelayedDialog() {
    var showDialog by remember { mutableStateOf(false) }
    LaunchedEffect(Unit) {
        delay(3000)
        showDialog = true
    }
    if (showDialog) {
        SpatialDialog(
            onDismissRequest = { showDialog = false },
            SpatialDialogProperties(
                dismissOnBackPress = true
            )
        ) {
            Box(
                Modifier
                    .height(150.dp)
                    .width(150.dp)
            ) {
                Button(onClick = { showDialog = false }) {
                    Text("OK")
                }
            }
        }
    }
}
SpatialDialog.kt

Subspace {
    SpatialRow {
        Orbiter(
            position = ContentEdge.Top,
            offset = 8.dp,
            offsetType = OrbiterOffsetType.InnerEdge,
            shape = SpatialRoundedCornerShape(size = CornerSize(50))
        ) {
            Text(
                "Hello World!",
                style = MaterialTheme.typography.titleMedium,
                modifier = Modifier
                    .background(Color.White)
                    .padding(16.dp)
            )
        }
        SpatialPanel(
            SubspaceModifier
                .height(824.dp)
                .width(1400.dp)
        ) {
            Box(
                modifier = Modifier
                    .background(Color.Red)
            )
        }
        SpatialPanel(
            SubspaceModifier
                .height(824.dp)
                .width(1400.dp)
        ) {
            Box(
                modifier = Modifier
                    .background(Color.Blue)
            )
        }
    }
}
Orbiter.kt
