瞭解 Android XR 基本知識：第 2 部分 - 軌道器與空間環境

透過集合功能整理內容 你可以依據偏好儲存及分類內容。

git clone https://github.com/android/xr-codelabs.git

import androidx.compose.foundation.shape.CornerSize
import androidx.compose.ui.Alignment
import androidx.compose.ui.unit.dp
import androidx.xr.compose.spatial.EdgeOffset
import androidx.xr.compose.spatial.Orbiter
import androidx.xr.compose.spatial.OrbiterEdge
import androidx.xr.compose.subspace.layout.SpatialRoundedCornerShape

...

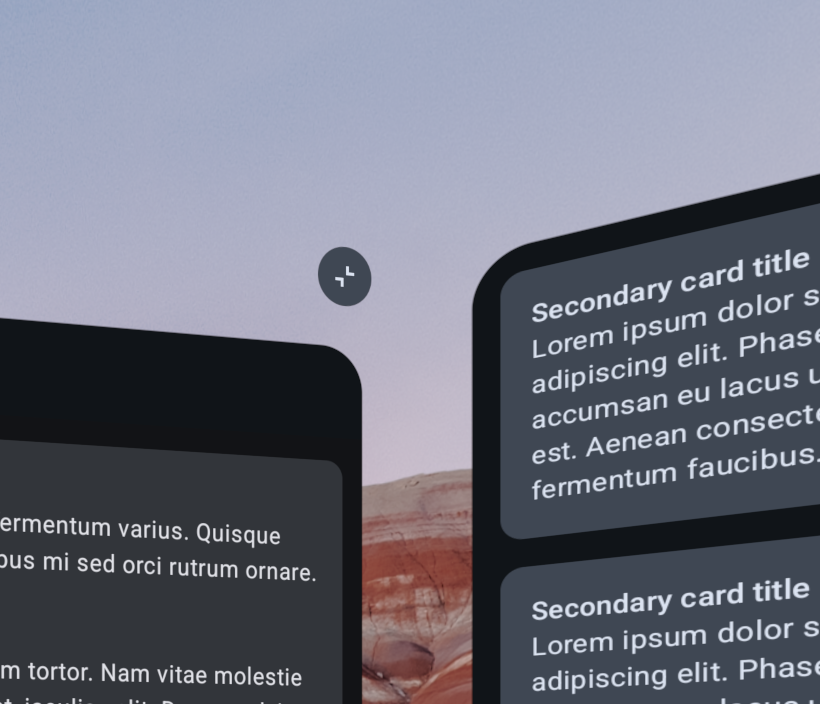

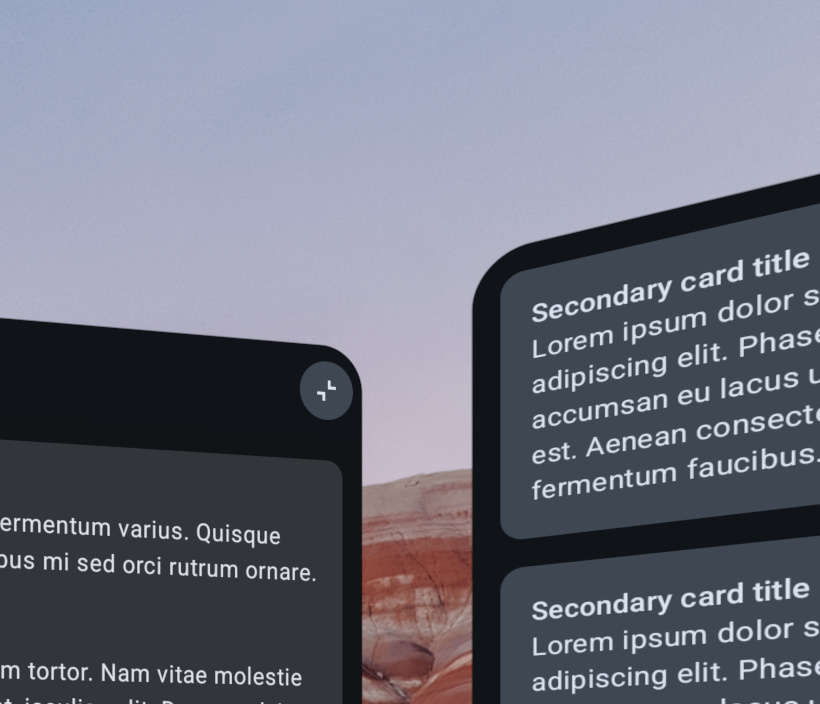

Orbiter(
    position = OrbiterEdge.Top,
    alignment = Alignment.End,
    offset = EdgeOffset.inner(16.dp),
    shape = SpatialRoundedCornerShape(
        CornerSize(percent = 100)
    )
) {
    ToggleSpaceModeButton()
}

[versions]
...
xrSceneCore = "1.0.0-alpha04"
kotlinxCoroutinesGuava = "1.10.2"

[libraries]
...
androidx-xr-scenecore = { group = "androidx.xr.scenecore", name = "scenecore", version.ref = "xrSceneCore"}
jetbrains-kotlinx-coroutines-guava = {group = "org.jetbrains.kotlinx", name="kotlinx-coroutines-guava", version.ref = "kotlinxCoroutinesGuava"}

dependencies {
    ...
    implementation(libs.androidx.xr.scenecore)
    implementation(libs.jetbrains.kotlinx.coroutines.guava)
    ...
}

data class EnvironmentOption(val name: String, val skyboxPath: String?, val geometryPath: String?)

val DEFAULT_ENVIRONMENT = EnvironmentOption("Default", null, null)

val ENVIRONMENT_OPTIONS = listOf(
    DEFAULT_ENVIRONMENT,

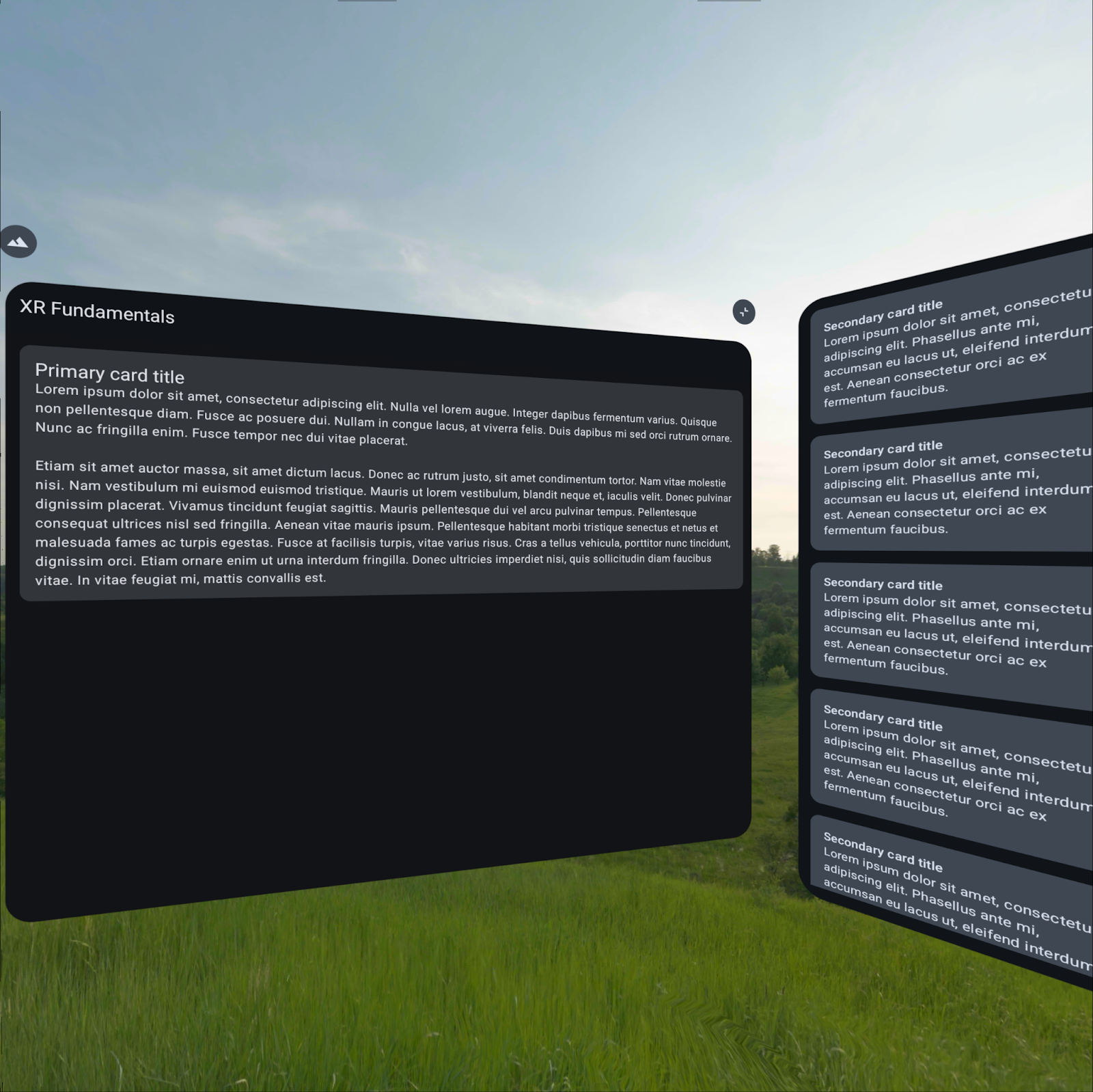

    EnvironmentOption("Green Hills", null, "green_hills_ktx2_mipmap.glb")
)

import androidx.xr.runtime.Session
import androidx.xr.scenecore.ExrImage
import androidx.xr.scenecore.GltfModel
import androidx.xr.scenecore.SpatialEnvironment
import kotlinx.coroutines.guava.await

...

data class EnvironmentOption(val name: String, val skyboxPath: String?, val geometryPath: String?) {
    suspend fun toSpatialEnvironmentPreference(session: Session): SpatialEnvironmentPreference? {
        if (skyboxPath == null && geometryPath == null) {
            return null
        } else {
            val skybox = skyboxPath?.let {
                ExrImage.create(session, it).await()
            }

            val geometry = geometryPath?.let {
                GltfModel.create(session, it).await()
            }

            return SpatialEnvironmentPreference(skybox, geometry)
        }
    }
}

import androidx.compose.foundation.shape.CornerSize
import androidx.compose.material3.FilledTonalIconButton
import androidx.compose.material3.Icon
import androidx.compose.runtime.Composable
import androidx.compose.ui.Alignment
import androidx.compose.ui.Modifier
import androidx.compose.ui.res.painterResource
import androidx.compose.ui.unit.dp
import androidx.xr.compose.spatial.EdgeOffset
import androidx.xr.compose.spatial.Orbiter
import androidx.xr.compose.spatial.OrbiterEdge
import androidx.xr.compose.subspace.layout.SpatialRoundedCornerShape
import com.example.android.xrfundamentals.R

@Composable
fun EnvironmentSelectionOrbiter(
    modifier: Modifier = Modifier,
    onClick: () -> Unit = {},
) {

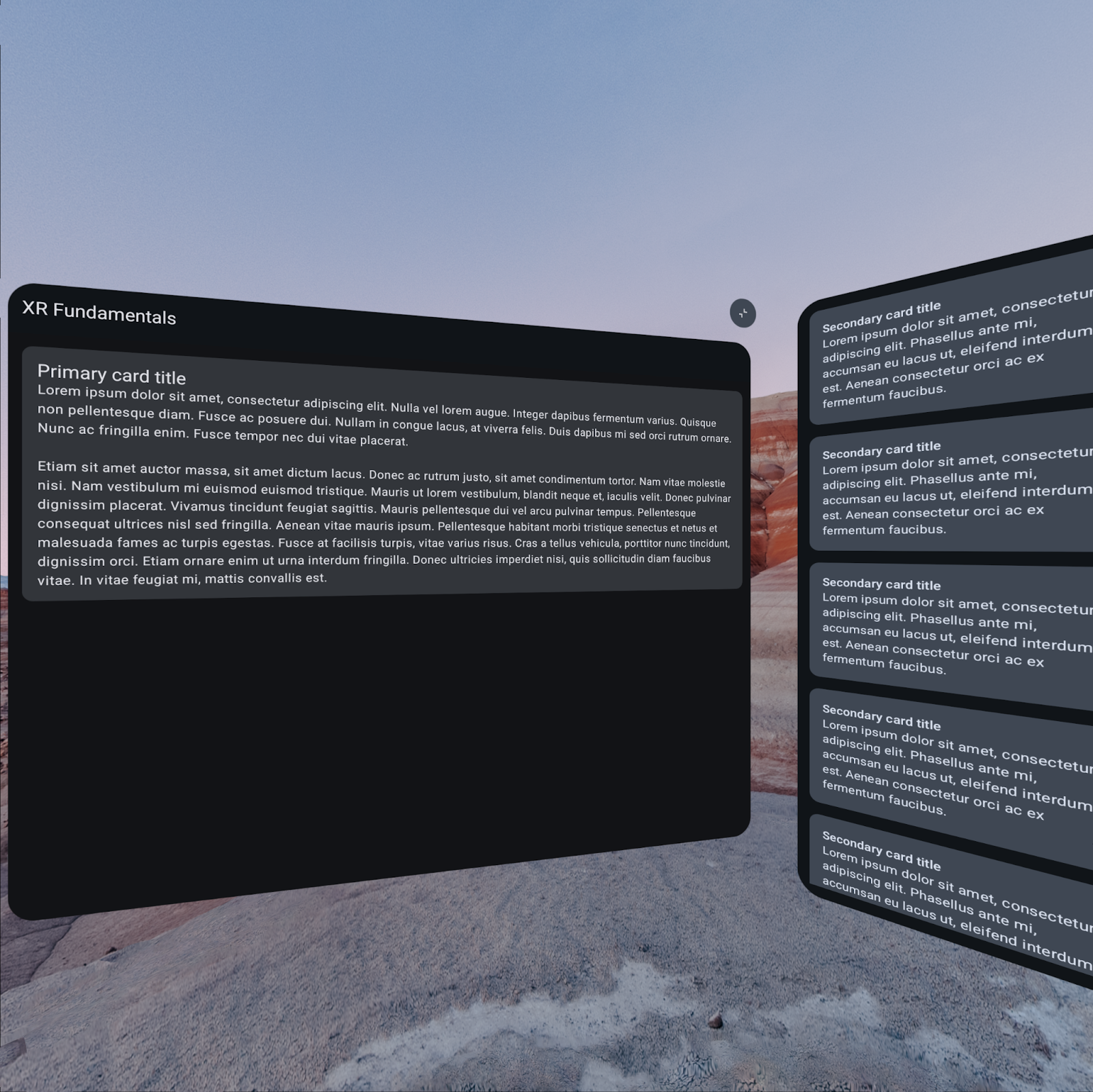

    Orbiter(
        position = OrbiterEdge.Top,
        alignment = Alignment.Start,
        offset = EdgeOffset.inner(16.dp),
        shape = SpatialRoundedCornerShape(
            CornerSize(100)
        )
    ) {
        FilledTonalIconButton(
            modifier = modifier,
            onClick = onClick,
        ) {
            Icon(painterResource(R.drawable.baseline_landscape_24), "Show environment selection dialog")
        }
    }
}

import androidx.xr.compose.platform.LocalSpatialCapabilities
import com.example.android.xrfundamentals.ui.component.EnvironmentSelectionOrbiter

...

SpatialPanel(...) {

    // Only show the environment selection orbiter if the app is actually able to
    // change the environment
    if (LocalSpatialCapabilities.current.isAppEnvironmentEnabled) {
        EnvironmentSelectionOrbiter(
            onClick = { TODO() }
        )
    }
    ...
}

import androidx.compose.runtime.mutableStateOf
import androidx.compose.runtime.rememberCoroutineScope
import androidx.xr.compose.platform.LocalSession

...

var currentEnvironmentOptionIndex by remember { mutableStateOf(0) }

Subspace {
    val session = checkNotNull(LocalSession.current)
    val scope = rememberCoroutineScope()
    ...
}

EnvironmentSelectionOrbiter(
    onClick = {
        scope.launch {
            currentEnvironmentOptionIndex =
                (currentEnvironmentOptionIndex + 1) % ENVIRONMENT_OPTIONS.size

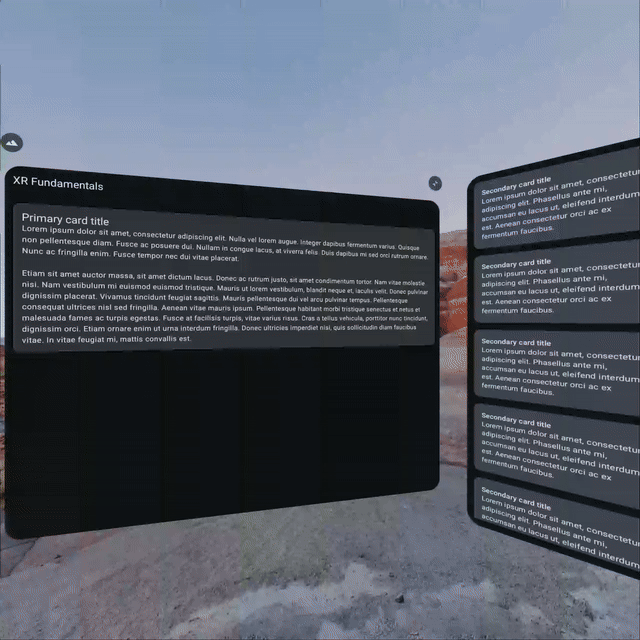

            session.scene.spatialEnvironment.setSpatialEnvironmentPreference(
                ENVIRONMENT_OPTIONS[currentEnvironmentOptionIndex].toSpatialEnvironmentPreference(
                    session
                )
            )
        }
    }
)
