构建和测试适用于 Android Automotive OS 的停车状态下使用的应用

使用集合让一切井井有条 根据您的偏好保存内容并对其进行分类。

git clone https://github.com/android/car-codelabs.git

<manifest xmlns:android="http://schemas.android.com/apk/res/android">
    ...
    <uses-feature
        android:name="android.hardware.type.automotive"
        android:required="false" />
    ...
</manifest>

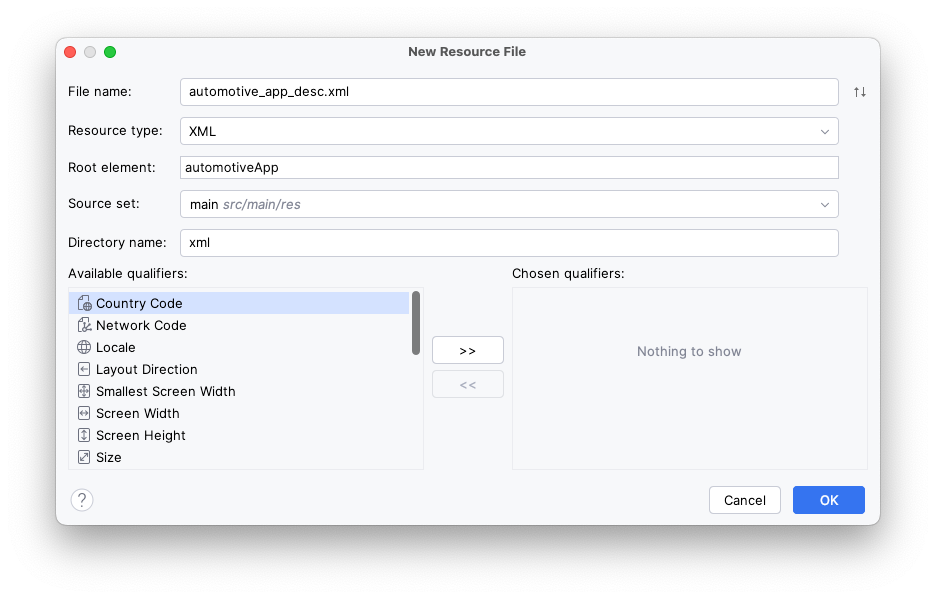

<?xml version="1.0" encoding="utf-8"?>
<automotiveApp xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools">
    <uses
        name="video"
        tools:ignore="InvalidUsesTagAttribute" />
</automotiveApp>

<application ...>
    <meta-data
        android:name="com.android.automotive"
        android:resource="@xml/automotive_app_desc" />
</application>

import androidx.compose.material.icons.Icons
import androidx.compose.material.icons.automirrored.filled.ArrowBack
import androidx.compose.material3.Icon
import androidx.compose.material3.IconButton

...

} else if (route?.startsWith(Screen.Detail.name) == true) {
    CenterAlignedTopAppBar(
        title = { Text(stringResource(R.string.bbb_title)) },
        navigationIcon = {
            IconButton(onClick = { navController.popBackStack() }) {
                Icon(
                    Icons.AutoMirrored.Filled.ArrowBack,
                    contentDescription = null
                )
            }
        }
    )
}

import androidx.compose.material.icons.twotone.Close

...

@Composable
fun TopControls(
    title: String?,
    onClose: () -> Unit,
    modifier: Modifier = Modifier
) {
    Box(modifier) {
        IconButton(
            modifier = Modifier
                .align(Alignment.TopStart),
            onClick = onClose
        ) {
            Icon(
                Icons.TwoTone.Close,
                contentDescription = "Close player",
                tint = Color.White
            )
        }

        if (title != null) { ... }
    }
}

fun PlayerControls(
    uiState: PlayerUiState,
    onClose: () -> Unit,
    onPlayPause: () -> Unit,
    onSeek: (seekToMillis: Long) -> Unit,
    modifier: Modifier = Modifier,
) {
    AnimatedVisibility(
        visible = uiState.isShowingControls,
        enter = fadeIn(),
        exit = fadeOut()
    ) {
        Box(modifier = modifier.background(Color.Black.copy(alpha = .5f))) {
            TopControls(
                modifier = Modifier
                    .fillMaxWidth()
                    .padding(dimensionResource(R.dimen.screen_edge_padding))
                    .align(Alignment.TopCenter),
                title = uiState.mediaMetadata.title?.toString(),
                onClose = onClose
            )
            ...
        }
    }
}

@Composable
fun PlayerScreen(
    onClose: () -> Unit,
    modifier: Modifier = Modifier,
    viewModel: PlayerViewModel = viewModel()
) {
    ...

    PlayerControls(
        modifier = Modifier
            .fillMaxSize(),
        uiState = playerUiState,
        onClose = onClose,
        onPlayPause = { if (playerUiState.isPlaying) viewModel.pause() else viewModel.play() },
        onSeek = viewModel::seekTo
    )
}

composable(route = Screen.Player.name, ...) {
    PlayerScreen(onClose = { navController.popBackStack() })
}

import android.content.Context
import android.content.pm.PackageManager

...

enum class SupportedOrientation {
    Landscape,
    Portrait,
}

fun Context.supportedOrientations(): List<SupportedOrientation> {
    return when (Pair(
        packageManager.hasSystemFeature(PackageManager.FEATURE_SCREEN_LANDSCAPE),
        packageManager.hasSystemFeature(PackageManager.FEATURE_SCREEN_PORTRAIT)
    )) {
        Pair(true, false) -> listOf(SupportedOrientation.Landscape)
        Pair(false, true) -> listOf(SupportedOrientation.Portrait)
        // For backwards compat, if neither feature is declared, both can be assumed to be supported
        //
        else -> listOf(SupportedOrientation.Landscape, SupportedOrientation.Portrait)
    }
}

import com.example.android.cars.roadreels.SupportedOrientation
import com.example.android.cars.roadreels.supportedOrientations

...

DisposableEffect(Unit) {
    ...

    // Only automatically set the orientation to landscape if the device supports landscape.
    // On devices that are portrait only, the activity may enter a compat mode and won't get to
    // use the full window available if so. The same applies if the app's window is portrait
    // in multi-window mode.
    if (activity.supportedOrientations().contains(SupportedOrientation.Landscape)
        && !activity.isInMultiWindowMode
    ) {
        activity.requestedOrientation = ActivityInfo.SCREEN_ORIENTATION_SENSOR_LANDSCAPE
    }

    ...
}

import androidx.compose.foundation.layout.WindowInsets
import androidx.compose.foundation.layout.systemBars
import androidx.compose.foundation.layout.windowInsetsPadding

...

Box(
    modifier = Modifier
        .fillMaxSize()
        .windowInsetsPadding(WindowInsets.systemBars)
) {
    PlayerView(...)
    PlayerControls(...)
}

import androidx.compose.runtime.compositionLocalOf

// Assume that no insets can be controlled by default
const val DEFAULT_CONTROLLABLE_INSETS = 0
val LocalControllableInsets = compositionLocalOf { DEFAULT_CONTROLLABLE_INSETS }

import androidx.compose.runtime.getValue
import androidx.compose.runtime.mutableIntStateOf
import androidx.compose.runtime.remember
import androidx.compose.runtime.setValue
import androidx.core.view.WindowCompat
import androidx.core.view.WindowInsetsControllerCompat.OnControllableInsetsChangedListener

...

class MainActivity : ComponentActivity() {
    private lateinit var onControllableInsetsChangedListener: OnControllableInsetsChangedListener

    @OptIn(ExperimentalMaterial3WindowSizeClassApi::class)
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)

        enableEdgeToEdge()

        setContent {
            var controllableInsetsTypeMask by remember { mutableIntStateOf(DEFAULT_CONTROLLABLE_INSETS) }

            onControllableInsetsChangedListener =
                OnControllableInsetsChangedListener { _, typeMask ->
                    if (controllableInsetsTypeMask != typeMask) {
                        controllableInsetsTypeMask = typeMask
                    }
                }

            WindowCompat.getInsetsController(window, window.decorView)
                .addOnControllableInsetsChangedListener(onControllableInsetsChangedListener)

            RoadReelsTheme {
                RoadReelsApp(calculateWindowSizeClass(this))
            }
        }
    }

    override fun onDestroy() {
        super.onDestroy()

        WindowCompat.getInsetsController(window, window.decorView)
            .removeOnControllableInsetsChangedListener(onControllableInsetsChangedListener)
    }
}

import androidx.compose.runtime.CompositionLocalProvider

...

CompositionLocalProvider(LocalControllableInsets provides controllableInsetsTypeMask) {
    RoadReelsTheme {
        RoadReelsApp(calculateWindowSizeClass(this))
    }
}

import androidx.compose.foundation.layout.navigationBars
import androidx.compose.foundation.layout.statusBars
import androidx.compose.foundation.layout.union
import androidx.compose.foundation.layout.WindowInsets
import androidx.compose.foundation.layout.navigationBars
import androidx.compose.foundation.layout.statusBars
import androidx.compose.foundation.layout.windowInsetsPadding
import androidx.compose.runtime.rememberUpdatedState
import androidx.compose.ui.unit.dp
import com.example.android.cars.roadreels.LocalControllableInsets

...

val controllableInsetsTypeMask by rememberUpdatedState(LocalControllableInsets.current)

DisposableEffect(Unit) {
    ...
    windowInsetsController.hide(WindowInsetsCompat.Type.systemBars().and(controllableInsetsTypeMask))
    ...
}

...

// When the system bars can be hidden, ignore them when applying padding to the player and
// controls so they don't jump around as the system bars disappear. If they can't be hidden
// include them so nothing renders behind the system bars
var windowInsetsForPadding = WindowInsets(0.dp)
if (controllableInsetsTypeMask.and(WindowInsetsCompat.Type.statusBars()) == 0) {
    windowInsetsForPadding = windowInsetsForPadding.union(WindowInsets.statusBars)
}
if (controllableInsetsTypeMask.and(WindowInsetsCompat.Type.navigationBars()) == 0) {
    windowInsetsForPadding = windowInsetsForPadding.union(WindowInsets.navigationBars)
}

Box(
    modifier = Modifier
        .fillMaxSize()
        .windowInsetsPadding(windowInsetsForPadding)
) {
    PlayerView(...)
    PlayerControls(...)
}

androidx-lifecycle-runtime-compose = { group = "androidx.lifecycle", name = "lifecycle-runtime-compose", version.ref = "lifecycle" }

implementation(libs.androidx.lifecycle.runtime.compose)

import androidx.lifecycle.Lifecycle
import androidx.lifecycle.compose.LifecycleEventEffect

...

@Composable
fun PlayerScreen(...) {
    ...
    LifecycleEventEffect(Lifecycle.Event.ON_PAUSE) {
        viewModel.pause()
    }

    LifecycleEventEffect(Lifecycle.Event.ON_RESUME) {
        viewModel.play()
    }
    ...
}

<activity
    android:name="com.example.android.cars.roadreels.MainActivity"
    ...
    android:configChanges="screenSize|smallestScreenSize|orientation|screenLayout|density">
        ...
</activity>

androidx-media3-mediasession = { group = "androidx.media3", name = "media3-session", version.ref = "media3" }

implementation(libs.androidx.media3.mediasession)

import androidx.media3.session.MediaSession
...

class PlayerViewModel(...) {
    ...

    private var mediaSession: MediaSession? = null

    init {
        viewModelScope.launch {
            _player.onEach { player ->
                playerUiStateUpdateJob?.cancel()
                mediaSession?.release()

                if (player != null) {
                    initializePlayer(player)
                    mediaSession = MediaSession.Builder(application, player).build()
                    playerUiStateUpdateJob = viewModelScope.launch {... }
                }
            }.collect()
        }
    }
}

override fun onCleared() {
    super.onCleared()
    mediaSession?.release()
    _player.value?.release()
}

# To play content
adb shell cmd media_session dispatch play

# To pause content
adb shell cmd media_session dispatch pause

# To toggle the playing state
adb shell cmd media_session dispatch play-pause

android {
    ...
    useLibrary("android.car")
}

import android.content.Context
import androidx.media3.common.ForwardingSimpleBasePlayer
import androidx.media3.common.util.UnstableApi
import androidx.media3.exoplayer.ExoPlayer

@UnstableApi
class RoadReelsPlayer(context: Context) :
    ForwardingSimpleBasePlayer(ExoPlayer.Builder(context).build()) {
    private var shouldPreventPlay = false

    override fun getState(): State {
        val state = super.getState()

        return state.buildUpon()
            .setAvailableCommands(
                state.availableCommands.buildUpon().removeIf(COMMAND_PLAY_PAUSE, shouldPreventPlay)
                    .build()
            ).build()
    }
}

init {
    ...
    _player.update { RoadReelsPlayer(application) }
}

import android.car.Car
import android.car.drivingstate.CarUxRestrictions
import android.car.drivingstate.CarUxRestrictionsManager
import android.content.pm.PackageManager
import com.google.common.util.concurrent.ListenableFuture

...

@UnstableApi
class RoadReelsPlayer(context: Context) :
    ForwardingSimpleBasePlayer(ExoPlayer.Builder(context).build()) {
    ...
    private var pausedByUxRestrictions = false
    private lateinit var carUxRestrictionsManager: CarUxRestrictionsManager

   init {
        with(context) {
            // Only listen to UX restrictions if the device is running Android Automotive OS
            if (packageManager.hasSystemFeature(PackageManager.FEATURE_AUTOMOTIVE)) {
                val car = Car.createCar(context)
                carUxRestrictionsManager =
                    car.getCarManager(Car.CAR_UX_RESTRICTION_SERVICE) as CarUxRestrictionsManager

                // Get the initial UX restrictions and update the player state
                shouldPreventPlay =
                    carUxRestrictionsManager.currentCarUxRestrictions.isRequiresDistractionOptimization
                invalidateState()

                // Register a listener to update the player state as the UX restrictions change
                carUxRestrictionsManager.registerListener { carUxRestrictions: CarUxRestrictions ->
                    shouldPreventPlay = carUxRestrictions.isRequiresDistractionOptimization

                    if (!shouldPreventPlay && pausedByUxRestrictions) {
                        handleSetPlayWhenReady(true)
                        invalidateState()
                    } else if (shouldPreventPlay && isPlaying) {
                        pausedByUxRestrictions = true
                        handleSetPlayWhenReady(false)
                        invalidateState()
                    }
                }
            }

            addListener(object : Player.Listener {
                override fun onEvents(player: Player, events: Player.Events) {
                    if (events.contains(EVENT_IS_PLAYING_CHANGED) && isPlaying) {
                        pausedByUxRestrictions = false
                    }
                }
            })
        }
    }

    ...

    override fun handleRelease(): ListenableFuture<*> {
        if (::carUxRestrictionsManager.isInitialized) {
            carUxRestrictionsManager.unregisterListener()
        }
        return super.handleRelease()
    }
}

LifecycleEventEffect(Lifecycle.Event.ON_START) {
    viewModel.play()
}
LifecycleEventEffect(Lifecycle.Event.ON_STOP) {
    viewModel.pause()
}

adb shell cmd overlay enable --user 0 com.android.systemui.rro.left

contentWindowInsets = if (route?.equals(Screen.Player.name) == true) WindowInsets(0.dp) else WindowInsets.systemBars.only(WindowInsetsSides.Vertical)

adb shell cmd overlay enable --user 0 com.android.internal.display.cutout.emulation.top_and_right

adb shell cmd overlay enable --user 0 com.android.systemui.rro.left

<?xml version="1.0" encoding="utf-8"?>
<resources>
    <integer name="windowLayoutInDisplayCutoutMode">3</integer>
</resources>

import androidx.compose.foundation.layout.WindowInsetsSides
import androidx.compose.foundation.layout.only
import androidx.compose.foundation.layout.safeDrawing

...

windowInsets = WindowInsets.safeDrawing.only(WindowInsetsSides.Horizontal + WindowInsetsSides.Top)

Scaffold(
    ...,
    contentWindowInsets = WindowInsets(0.dp)
) { ... }

import androidx.compose.foundation.layout.WindowInsets
import androidx.compose.foundation.layout.WindowInsetsSides
import androidx.compose.foundation.layout.only
import androidx.compose.foundation.layout.safeDrawing
import androidx.compose.foundation.layout.windowInsetsPadding

...

LazyColumn(
    contentPadding = PaddingValues(bottom = dimensionResource(R.dimen.screen_edge_padding))
) {
    items(NUM_ROWS) { rowIndex: Int ->
        Text(
            "Row $rowIndex",
            style = MaterialTheme.typography.headlineSmall,
            modifier = Modifier
                .padding(
                    horizontal = dimensionResource(R.dimen.screen_edge_padding),
                    vertical = dimensionResource(R.dimen.row_header_vertical_padding)
                )
                .windowInsetsPadding(WindowInsets.safeDrawing.only(WindowInsetsSides.Horizontal))
        )
    ...
}

import androidx.compose.foundation.layout.Spacer
import androidx.compose.foundation.layout.widthIn
import androidx.compose.foundation.layout.windowInsetsEndWidth
import androidx.compose.foundation.layout.windowInsetsStartWidth

...

LazyRow(
    horizontalArrangement = Arrangement.spacedBy(dimensionResource(R.dimen.list_item_spacing)),
) {
    item {
        Spacer(
            Modifier
                .windowInsetsStartWidth(WindowInsets.safeDrawing)
                .widthIn(min = dimensionResource(R.dimen.screen_edge_padding))
        )
    }
    items(NUM_ITEMS_PER_ROW) { ... }
    item {
        Spacer(
            Modifier
                .windowInsetsEndWidth(WindowInsets.safeDrawing)
                .widthIn(min = dimensionResource(R.dimen.screen_edge_padding))
        )
    }
}

import androidx.compose.foundation.layout.windowInsetsBottomHeight

...

LazyColumn(...){
    items(NUM_ROWS) { ... }
    item {
        Spacer(Modifier.windowInsetsBottomHeight(WindowInsets.safeDrawing))
    }
}

import androidx.compose.foundation.layout.WindowInsets
import androidx.compose.foundation.layout.safeDrawing
import androidx.compose.foundation.layout.windowInsetsPadding

...

Box(
    modifier = modifier
        .padding(dimensionResource(R.dimen.screen_edge_padding))
        .windowInsetsPadding(WindowInsets.safeDrawing)
) { ... }

import androidx.compose.foundation.layout.displayCutout

...

var windowInsetsForPadding = WindowInsets(WindowInsets.displayCutout)
