Learn Android XR Fundamentals: Part 2 - Orbiters and Spatial Environments

1. Before you begin

What you'll learn

  • The unique user experiences made possible by Android XR.
  • How to optimize an app for an Android XR headset using the Jetpack Compose XR library.
  • How to use UI elements from the Jetpack Compose XR library.
  • Where to learn more about building apps for Android XR.

What this isn't

What you'll need

What you'll build

In this codelab, you'll further optimize an app with some existing XR features by adding floating UI elements and customizing the virtual environment that surrounds the user while using the app.

Starting point

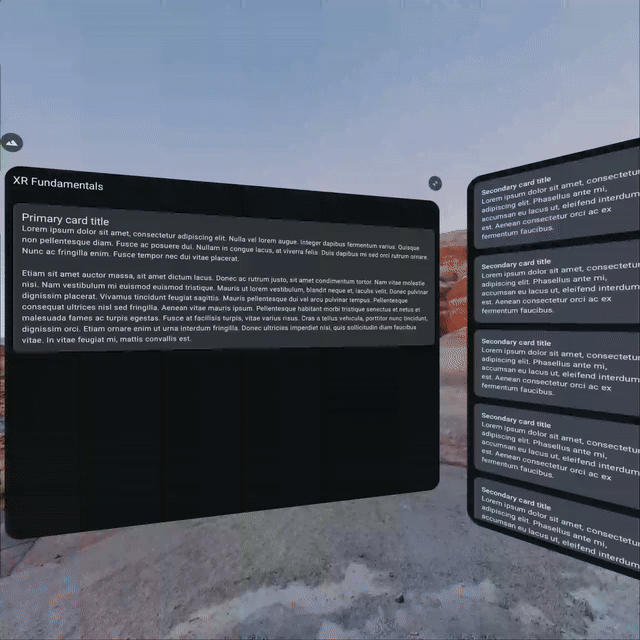

Final result

2. Get set up

Get the code

  1. The code for this codelab can be found in the xr-fundamentals directory within the xr-codelabs GitHub repository. To clone the repo, run the following command:
git clone https://github.com/android/xr-codelabs.git
  1. Alternatively, you can download the repository as a ZIP file:

Open the project

  • After starting Android Studio, import the xr-fundamentals/part1 directory. The xr-fundamentals/part2 directory contains the solution code, which you can reference at any point if you get stuck or just want to see the full project.

Familiarize yourself with the code

  • After opening the project in Android studio, take some time to look through the starting code.
  • If you haven't taken the first codelab or used the Android XR emulator yet, follow the steps in Run the app in the Android XR emulator to run the app.

3. Learn XR concepts: Orbiters

Orbiters are floating UI elements available in Full Space mode that are typically used to control the content within spatial panels or other entities to which their orbit is anchored. Using orbiters for content controls gives the content more space, meaning users can quickly access features contained within the orbiters while the main content remains visible. Orbiters give you the versatility to integrate existing UI components (such as navigation bars) or to create new ones.

Additionally, the Orbiter API allows you to render an orbiter's content where it normally would when running in Home Space mode or on a non-XR device and automatically breaks it out into an orbiter when running in Full Space mode.

In Home Space space mode, this navigation rail renders within the main app panel.

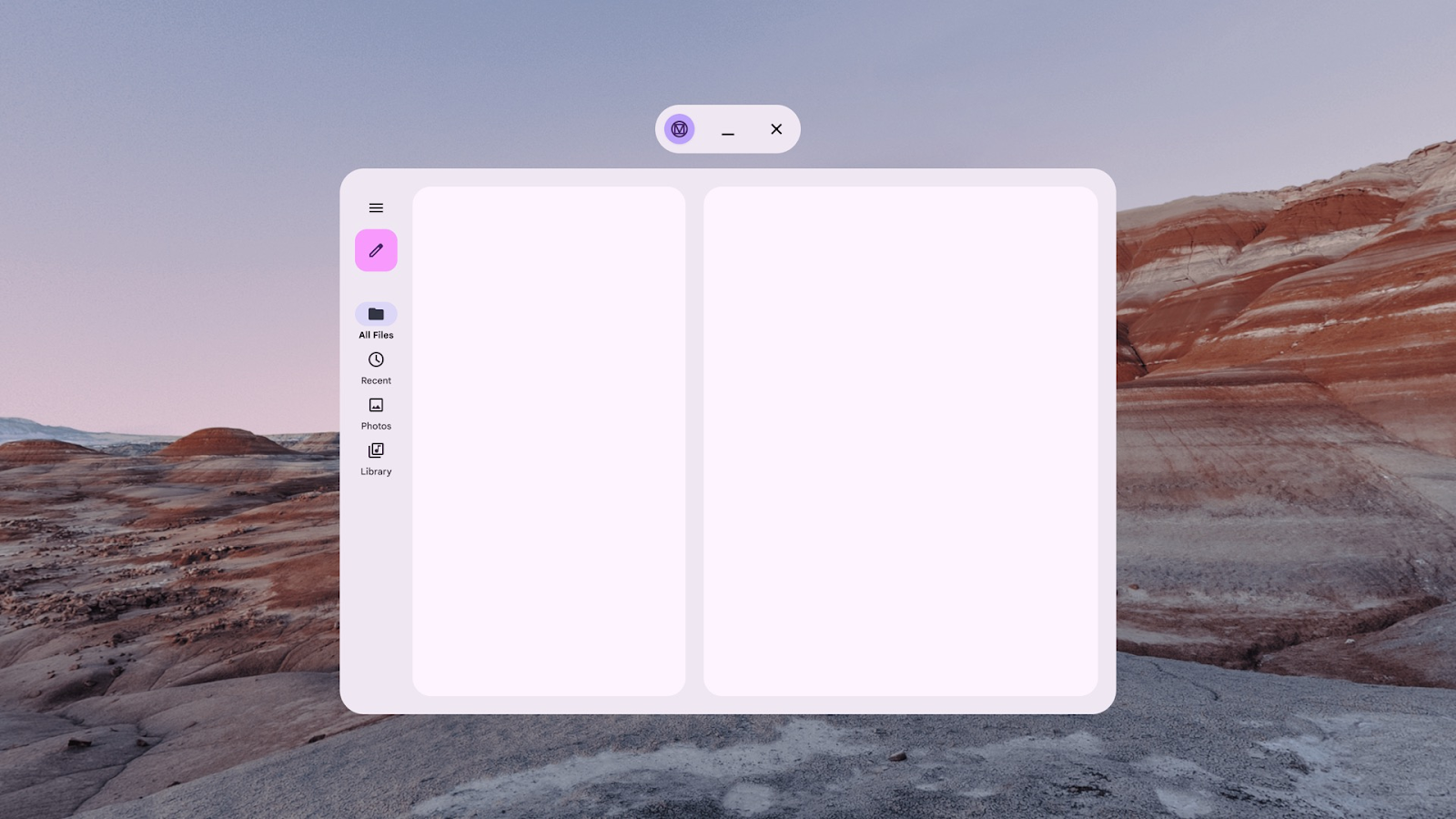

In Full Space space mode, the navigation rail is broken out into an orbiter attached to the primary panel.

At this point, the app contains a button in the top app bar to toggle between Home Space mode and Full Space mode. This button is a perfect example of a control that can be contained within an orbiter when running in Full Space mode, as moving the control to orbit the main panel helps the control stand out while also visually indicating that the control will collapse the app's content into that panel when clicked.

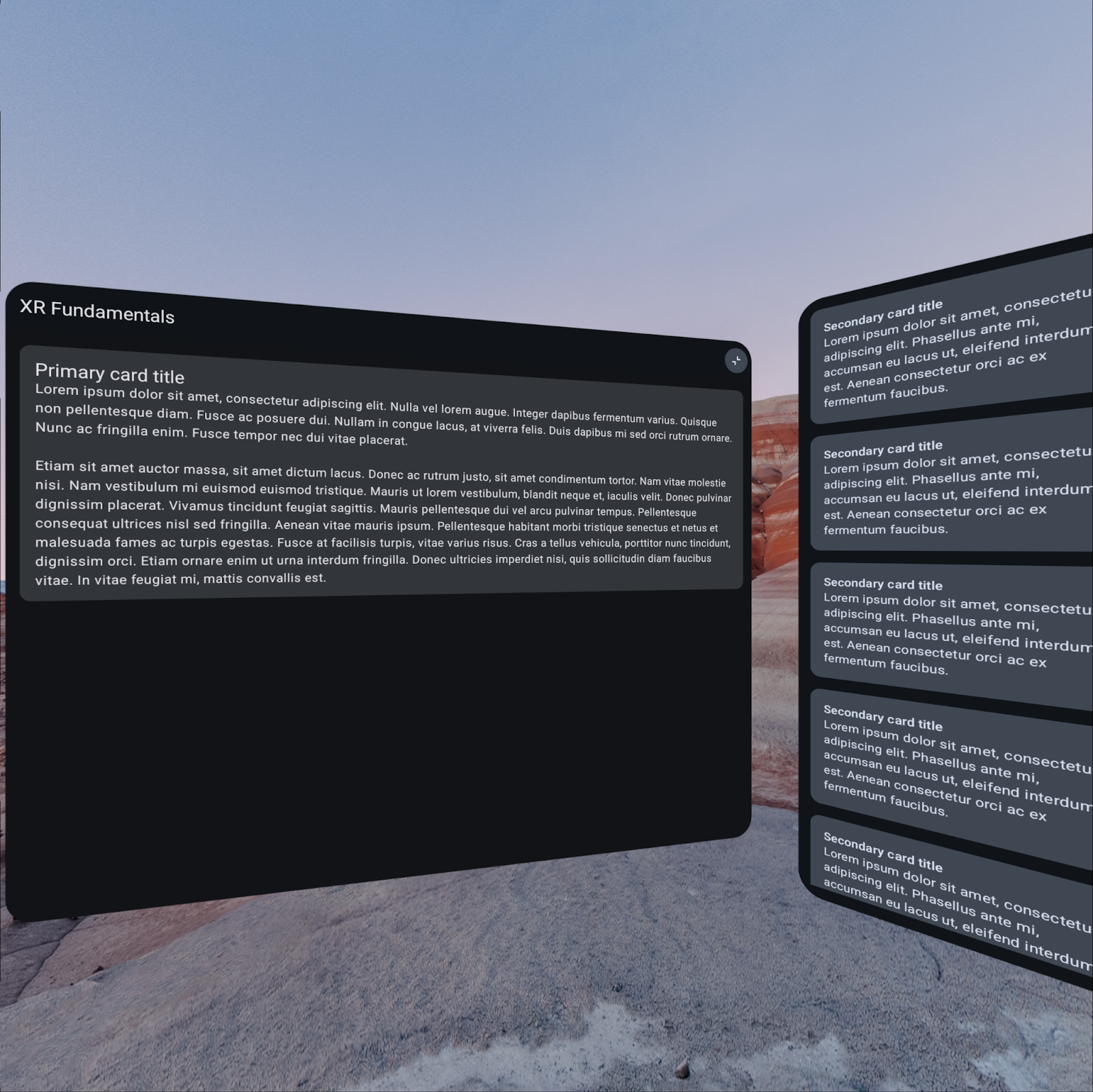

The current state

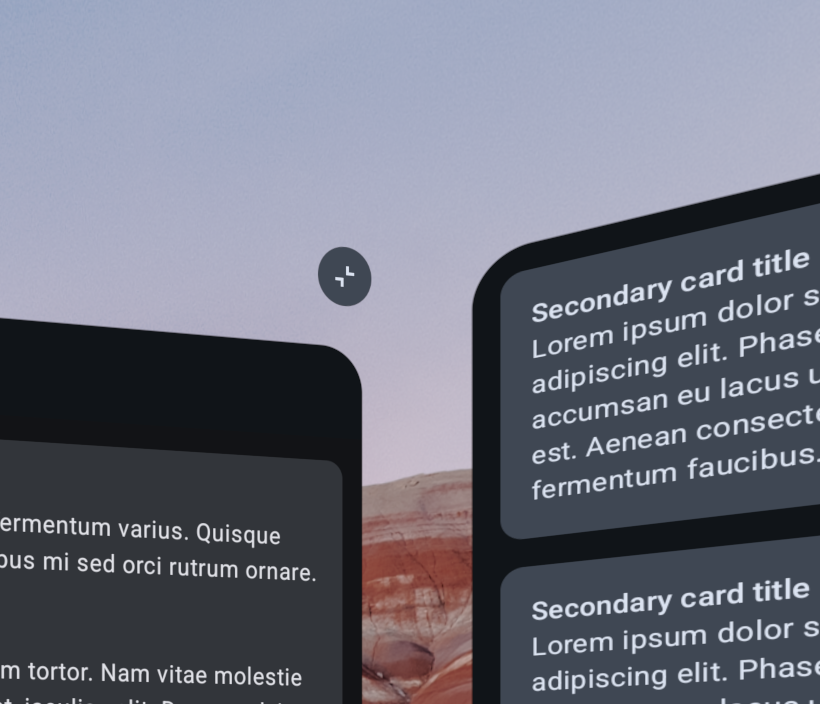

What you'll implement

To learn more about the design considerations for orbiters, see Spatial UI.

4. Add an Orbiter

Wrap the space mode toggle button

To turn the space mode toggle into an orbiter, wrap the ToggleSpaceModeButton composable within an Orbiter composable.

ui/component/XRFundamentalsTopAppBar .kt

import androidx.compose.foundation.shape.CornerSize
import androidx.compose.ui.Alignment
import androidx.compose.ui.unit.dp
import androidx.xr.compose.spatial.EdgeOffset
import androidx.xr.compose.spatial.Orbiter
import androidx.xr.compose.spatial.OrbiterEdge
import androidx.xr.compose.subspace.layout.SpatialRoundedCornerShape

...

Orbiter(
    position = OrbiterEdge.Top,
    alignment = Alignment.End,
    offset = EdgeOffset.inner(16.dp),
    shape = SpatialRoundedCornerShape(
        CornerSize(percent = 100)
    )
) {
    ToggleSpaceModeButton()
}

Now, run the app: When running in Home Space mode, you'll notice that nothing's changed. However, when you click the toggle and the app enters Full Space mode, you'll notice that the button is no longer located within the top app bar, but to the top right edge of the primary spatial panel.

The orbiter is anchored to the primary spatial panel because that is the nearest parent spatial entity in the UI tree. The exact position of the orbiter relative to the primary spatial panel is determined by the position, alignment, and offset parameters. Try modifying these parameters to see the range of behaviors they support.

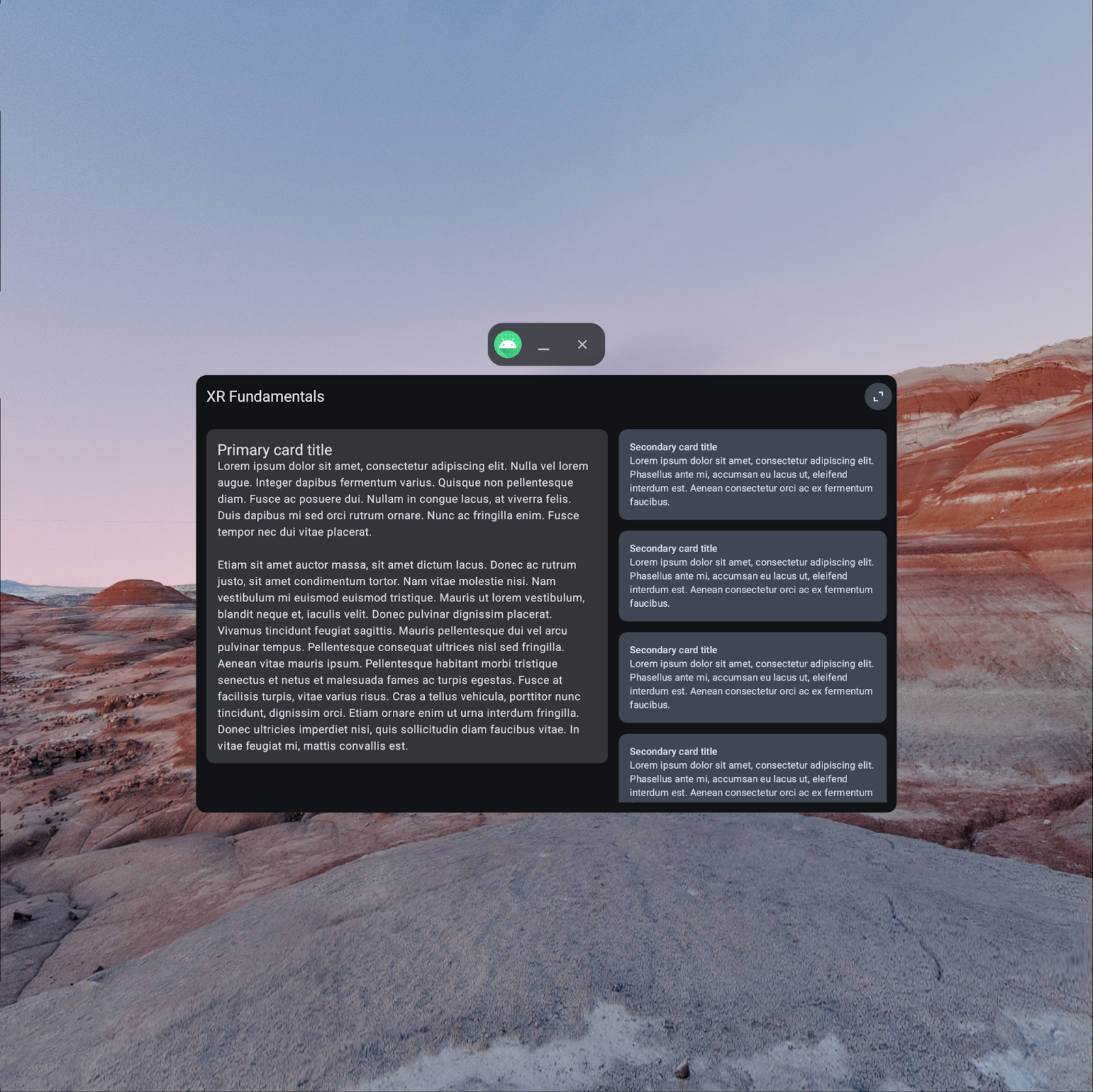

Home Space mode

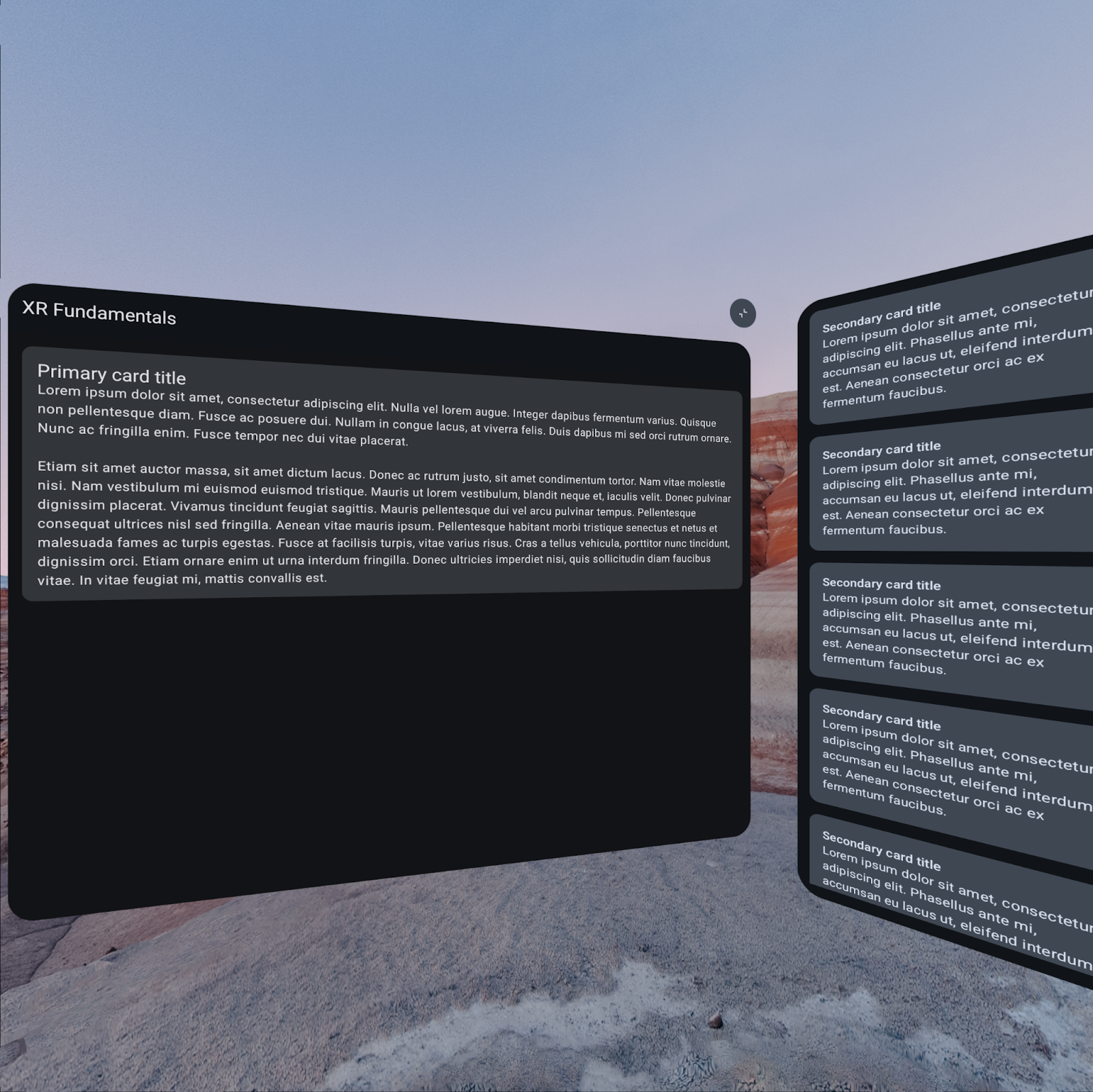

Full Space mode

5. Learn XR concepts: Spatial environments

Using an Orbiter to customize the position in 3D space of UI elements is a great way to improve the user experience on XR devices. You can improve the experience further by customizing the spatial environment in which users find themselves when using your app.

Spatial environments can incorporate depth, texture, and 3D geometry assets to create a rich, visually immersive experience. This is accomplished through the use of a spherical skybox image (in EXR format) to provide a distant panoramic background and/or a geometry asset (in glTF format) to provide foreground and midground elements that can blend into a skybox. For example, a video streaming app could use a night skybox with a glTF of a drive-in movie theater with a projection screen and cars. When creating assets for setting your users' spatial environment, ensure that your assets achieve high-quality resolution while maintaining a reasonable file size. See Optimize environment assets for more information.

Additionally, the opacity of the spatial environment can be controlled. This allows a video stream of the real world to pass through and blend with the virtual environment, which can help users keep their bearings

A person standing in a rocky spatial environment with a large UI panel in mid-field.

In the next step, you'll add a geometry asset to your app and create a menu to let the user choose their environment.

For all of the details about designing and implementing spatial environments, see Spatial environments and Add spatial environments to your app.

6. Let users change the spatial environment

How apps control the spatial environment

Before you get started, it's good to understand how exactly apps are able to control the spatial environment.

Unlike the content within panels, apps don't directly control the environment. Instead, they can interact with the SceneCore session to provide a preference for the environment they want the system to use. This preference is represented by a SpatialEnvironmentPreference, which consists of a skybox EXR image and/or geometry gLTF. What happens when your app provides a preference depends on the capabilities of your app when it sets the preference. If your app has the capability to change the environment, the system will use it immediately. If not, the preference will be applied when your app gains that capability.

For example, apps generally do not have the capability to change the environment while running in Home Space mode, but generally do when running in Full Space mode. So, if you allow a user to set an environment preference while in Home Space mode, that preference generally won't take effect until your app is running in Full Space mode.

Add a dependency on the XR SceneCore library

To get started with modifying the spatial environment, add a dependency on the XR SceneCore library, which you will use to load the environment assets and set environment preferences. You'll also need to add a dependency on the kotlinx-coroutines-guava artifact, as some of the APIs for loading assets use the ListenableFuture data type.

libs.version.toml

[versions]
...
xrSceneCore = "1.0.0-alpha04"
kotlinxCoroutinesGuava = "1.10.2"

[libraries]
...
androidx-xr-scenecore = { group = "androidx.xr.scenecore", name = "scenecore", version.ref = "xrSceneCore"}
jetbrains-kotlinx-coroutines-guava = {group = "org.jetbrains.kotlinx", name="kotlinx-coroutines-guava", version.ref = "kotlinxCoroutinesGuava"}

app/build.gradle.kts

dependencies {
    ...
    implementation(libs.androidx.xr.scenecore)
    implementation(libs.jetbrains.kotlinx.coroutines.guava)
    ...
}

Add an environment asset to your project

To specify a unique environment preference, you'll need a skybox and/or a geometry asset. For this codelab you'll use just the green_hills_ktx2_mipmap.glb geometry asset, which you can find either in the part2 folder containing the solution code or on GitHub.

  1. Right click on the app module in the Project window within Android Studio. Then select New New > Folder > Assets Folder then click Finish to create the folder.
  2. Add the GLB file into the app/src/main/assets folder you just created.

Model the environment options

To simplify the interaction between the UI code and the system APIs, you can create a Kotlin data class to model each environment option.

  1. Right click on the com.example.android.xrfundamentals package in the Project window and select New > Package. Enter com.example.android.xrfundamentals.environment as the package name.
  2. Right click on that package and select New > Kotlin Class/File. Enter EnvironmentOption as the name and click the Data class type.
  3. Add the following code in the file you just created:

EnvironmentOption.kt

data class EnvironmentOption(val name: String, val skyboxPath: String?, val geometryPath: String?)

val DEFAULT_ENVIRONMENT = EnvironmentOption("Default", null, null)

val ENVIRONMENT_OPTIONS = listOf(
    DEFAULT_ENVIRONMENT,
    EnvironmentOption("Green Hills", null, "green_hills_ktx2_mipmap.glb")
)

Add a helper to create load assets and return SpatialEnvironmentPreference

Next, you can add a helper method to the data class to make it easy to convert an EnvironmentOption to the corresponding SpatialEnvrionmentPreference.

EnvironmentOption.kt

import androidx.xr.runtime.Session
import androidx.xr.scenecore.ExrImage
import androidx.xr.scenecore.GltfModel
import androidx.xr.scenecore.SpatialEnvironment
import kotlinx.coroutines.guava.await

...

data class EnvironmentOption(val name: String, val skyboxPath: String?, val geometryPath: String?) {
    suspend fun toSpatialEnvironmentPreference(session: Session): SpatialEnvironmentPreference? {
        if (skyboxPath == null && geometryPath == null) {
            return null
        } else {
            val skybox = skyboxPath?.let {
                ExrImage.create(session, it).await()
            }

            val geometry = geometryPath?.let {
                GltfModel.create(session, it).await()
            }

            return SpatialEnvironmentPreference(skybox, geometry)
        }
    }
}

There's a few things to note here:

  • If both the skybox and geometry are null, null is returned to indicate that the default system environment preference should be used. See setSpatialEnvironmentPreference for more information.
  • The skybox and geometry resources are created asynchronously because these assets can often be quite large and take time to read into memory. In a production app, you may want to consider caching these assets in memory if switching environments frequently.

Implement the environment selection UI

To implement the UI, you'll add a second orbiter that rotates through the environment options when clicked.

Add the orbiter

  1. Right click the app module in the Project window and select the New > Vector Asset. Click on the Clip art field and search and select the landscape asset (from the Filled icon family), then click OK, then Next to create the asset.
  2. Right click on the com.example.android.xrfundamentals.ui.component package and select New > Kotlin Class/File. Enter EnvironmentSelectionOrbiter as the name and click the File type.
  3. Within the file you just created, add the following implementation of the EnvironmentSelectionOrbiter composable

EnvironmentSelectionOrbiter.kt

import androidx.compose.foundation.shape.CornerSize
import androidx.compose.material3.FilledTonalIconButton
import androidx.compose.material3.Icon
import androidx.compose.runtime.Composable
import androidx.compose.ui.Alignment
import androidx.compose.ui.Modifier
import androidx.compose.ui.res.painterResource
import androidx.compose.ui.unit.dp
import androidx.xr.compose.spatial.EdgeOffset
import androidx.xr.compose.spatial.Orbiter
import androidx.xr.compose.spatial.OrbiterEdge
import androidx.xr.compose.subspace.layout.SpatialRoundedCornerShape
import com.example.android.xrfundamentals.R

@Composable
fun EnvironmentSelectionOrbiter(
    modifier: Modifier = Modifier,
    onClick: () -> Unit = {},
) {
    Orbiter(
        position = OrbiterEdge.Top,
        alignment = Alignment.Start,
        offset = EdgeOffset.inner(16.dp),
        shape = SpatialRoundedCornerShape(
            CornerSize(100)
        )
    ) {
        FilledTonalIconButton(
            modifier = modifier,
            onClick = onClick,
        ) {
            Icon(painterResource(R.drawable.baseline_landscape_24), "Show environment selection dialog")
        }
    }
}
  1. Finally, add the EnvironmentSelectionOrbiter within the primary spatial panel

XRFundamentalsApp.kt

import androidx.xr.compose.platform.LocalSpatialCapabilities
import com.example.android.xrfundamentals.ui.component.EnvironmentSelectionOrbiter

...

SpatialPanel(...) {

    // Only show the environment selection orbiter if the app is actually able to
    // change the environment
    if (LocalSpatialCapabilities.current.isAppEnvironmentEnabled) {
        EnvironmentSelectionOrbiter(
            onClick = { TODO() }
        )
    }
    ...
}

Change the environment when the orbiter is clicked

To get everything working, there's one last step, which is to call setSpatialEnvironmentPreference in the EnvironmentSelectionOrbiter click handler.

  1. Set up a variable to track the current environment option (outside of the Subspace so that the state is maintained when switching between Home Space mode and Full Space mode). Also, create variables for the current XR session and a coroutine scope to call the toSpatialEnvironmentPreference helper

XRFundamentalsApp.kt

import androidx.compose.runtime.mutableStateOf
import androidx.compose.runtime.rememberCoroutineScope
import androidx.xr.compose.platform.LocalSession

...

var currentEnvironmentOptionIndex by remember { mutableStateOf(0) }

Subspace {
    val session = checkNotNull(LocalSession.current)
    val scope = rememberCoroutineScope()
    ...
}
  1. Implement the onClick callback to rotate through the environment options.

XRFundamentalsApp.kt

EnvironmentSelectionOrbiter(
    onClick = {
        scope.launch {
            currentEnvironmentOptionIndex =
                (currentEnvironmentOptionIndex + 1) % ENVIRONMENT_OPTIONS.size
            session.scene.spatialEnvironment.setSpatialEnvironmentPreference(
                ENVIRONMENT_OPTIONS[currentEnvironmentOptionIndex].toSpatialEnvironmentPreference(
                    session
                )
            )
        }
    }
)

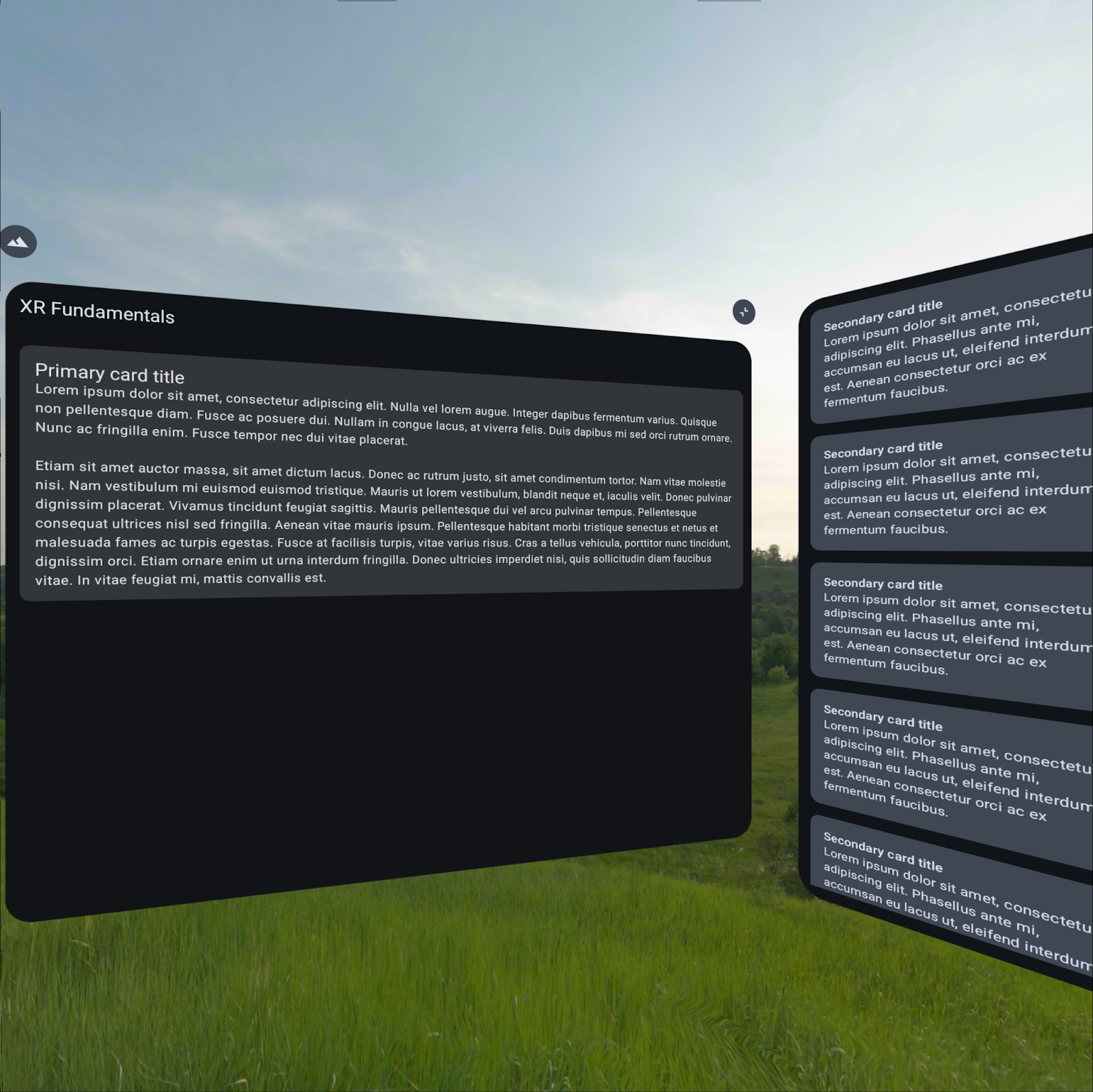

Run your app one more time and see that you can switch between the Green Hills and default environments!


7. Congratulations

To continue learning about how to make the most of XR, check out the following resources and exercises:

Further reading

Challenges

  • Find or create additional environment assets and add them as options.
  • Modify the environment controller and UI to allow the user to set their passthrough preferences using the setPassthroughOpacityPreference API. Note that controlling passthrough is gated by a different capability than for changing the environment assets.

Reference docs
