Wide classic card layout with Grid

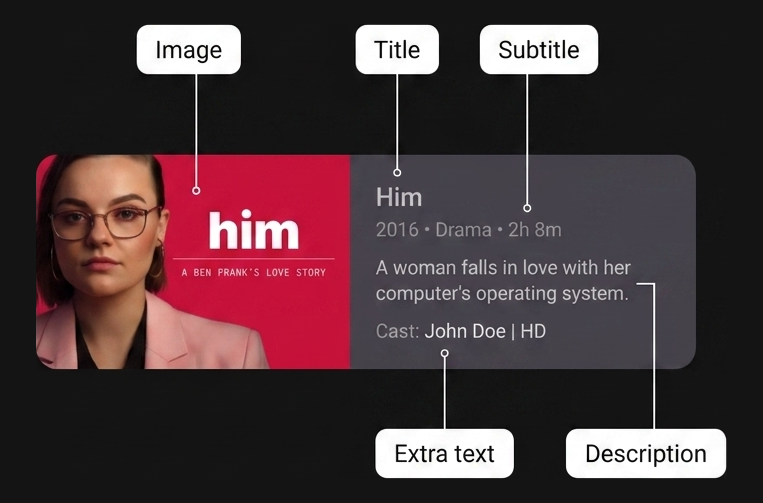

The TV app design guidelines define a card variant called the Wide classic card, which displays an image and its descriptive content block side by side. When building complex two-dimensional layouts for TV screens, using traditional coordinate-based positioning or deeply nested Row and Column containers can make your code difficult to read, maintain, and refactor. The Wide classic card is an ideal use case for the Jetpack Compose Grid API, helping you structure side-by-side elements cleanly using semantic, user-defined 2D layout areas.

Best practices

Implement the card layout with Grid. Using the Grid container improves code readability by decoupling physical layout dimensions from child item placement. Rather than relying on exact track indexes, define semantic named areas with the area function and place child composables with the gridItem modifier. Combine flexible track sizing, such as GridTrackSize.Auto and minmax(0.dp, 1.fr), with exact track gaps (gap(row = 8.dp, column = 16.dp)) to organize complex side-by-side card components clearly and robustly.

Ingredients

• Grid: A 2D container layout in Jetpack Compose that arranges child composables into rows and columns based on a configuration lambda
• gridItem: A Modifier extension that associates a child UI element with a specific named areaId inside a Grid layout
• area: A configuration DSL function within GridConfigurationScope that maps a semantic areaId to specific row and column spans or ranges
• Card: A Material Design container composable that groups related UI elements and styling
• GridTrackSize.MinMax: A track sizing property that defines flexible bounds (min and max) for row or column dimensions
• GridTrackSize.Auto: A track sizing property that sizes the row or column track automatically to fit its content (column(GridTrackSize.Auto))
• gap: A configuration function that specifies the vertical (row) and horizontal (column) spacing between grid tracks

Steps

Define area identifiers, configure the grid tracks and areas, then place the child composables.

1. Define semantic area identifiers

First, create a type-safe representation of the regions inside your Wide classic card layout. An enum class avoids string typos and provides compile-time safety when mapping tracks and placing child items.

enum class CardArea {
    Image,
    Title,
    Subtitle,
    Description,
    ExtraText,
}
GridByExamples.kt

2. Configure the 2D grid tracks and named areas

Inside your Grid composable's config lambda, define the columns and rows that make up the card structure. Use GridTrackSize.Auto for the image column so it wraps the thumbnail width cleanly. Use minmax(0.dp, 1.fr) for the content column so it expands flexibly across the remaining card width. Specify track spacing with gap(row = 8.dp, column = 16.dp). Map your CardArea identifiers to their physical track coordinates using the area function.

Grid(
    config = {
        // Define columns: left column for image, right for content
        column(GridTrackSize.Auto)
        column(minmax(0.dp, 1.fr))

        // Define row tracks for the vertical content stack
        row(GridTrackSize.Auto)
        row(GridTrackSize.Auto)
        row(GridTrackSize.Auto)
        row(GridTrackSize.Auto)

        // Map semantic identifiers to grid coordinates and spans
        area(CardArea.Image, row = 1, column = 1, rowSpan = 4)
        area(CardArea.Title, row = 1, column = 2)
        area(CardArea.Subtitle, row = 2, column = 2)
        area(CardArea.Description, row = 3, column = 2)
        area(CardArea.ExtraText, row = 4, column = 2)

        gap(row = 8.dp, column = 16.dp)
    }
) {
    // Child elements placed in Step 3
}
GridByExamples.kt

3. Place child composables using the gridItem modifier

With your tracks and areas configured, place each child UI element purely by semantic intent using the gridItem modifier. You can declare child composables in any order. The Grid container positions each element directly into its assigned 2D region automatically.

@Composable
fun WideClassicCard(
    imageContent: @Composable () -> Unit,
    title: String,
    subtitle: String,
    description: String,
    extraText: String,
    modifier: Modifier = Modifier,
) {
    Card(modifier = modifier) {
        Grid(
            config = {
                // Define columns: left column for image, right for content
                column(GridTrackSize.Auto)
                column(minmax(0.dp, 1.fr))

                // Define row tracks for the vertical content stack
                row(GridTrackSize.Auto)
                row(GridTrackSize.Auto)
                row(GridTrackSize.Auto)
                row(GridTrackSize.Auto)

                // Map semantic identifiers to grid coordinates and spans
                area(CardArea.Image, row = 1, column = 1, rowSpan = 4)
                area(CardArea.Title, row = 1, column = 2)
                area(CardArea.Subtitle, row = 2, column = 2)
                area(CardArea.Description, row = 3, column = 2)
                area(CardArea.ExtraText, row = 4, column = 2)

                gap(row = 8.dp, column = 16.dp)
            },
        ) {
            Box(modifier = Modifier.gridItem(CardArea.Image)) {
                imageContent()
            }
            Text(
                text = title,
                style = MaterialTheme.typography.titleLarge,
                modifier = Modifier
                    .gridItem(CardArea.Title)
                    .padding(top = 16.dp, end = 16.dp),
            )

            Text(
                text = subtitle,
                style = MaterialTheme.typography.titleMedium,
                modifier = Modifier
                    .gridItem(CardArea.Subtitle)
                    .padding(end = 16.dp),
            )

            Text(
                text = description,
                style = MaterialTheme.typography.bodyMedium,
                modifier = Modifier
                    .gridItem(CardArea.Description)
                    .padding(end = 16.dp),
            )

            Text(
                text = extraText,
                style = MaterialTheme.typography.labelSmall,
                modifier = Modifier
                    .gridItem(CardArea.ExtraText)
                    .padding(bottom = 16.dp, end = 16.dp),
            )
        }
    }
}
GridByExamples.kt

Results

By organizing your Wide classic card with Grid and named areas, you achieve a clean separation between physical layout tracks, area coordinates, and child composable placement. This structure makes your layout readable and maintainable while following TV app design guidelines for side-by-side thumbnail and description components.
