Android 建構系統會編譯應用程式資源和原始碼,並封裝至 APK 或 Android App Bundle,供您測試、部署、簽署及發布。
Android Studio 會使用進階建構工具包 Gradle 自動執行及管理建構程序,可讓您靈活定義自訂建構設定。每項建構設定都能定義其專屬的程式碼和資源組合,同時也能重複使用應用程式所有版本共用的部分。Android Gradle 外掛程式可與建構工具包搭配運作,提供專門用於建構及測試 Android 應用程式的處理程序和可調整設定。
Gradle 和 Android Gradle 外掛程式會獨立於 Android Studio 之外執行。也就是說,您可以從 Android Studio 內部、電腦上的指令列或未安裝 Android Studio 的電腦 (例如持續整合伺服器),建構 Android 應用程式。
如果您未使用 Android Studio,建議您瞭解如何透過指令列建構及執行應用程式。建構作業的輸出內容不會因為透過指令列、遠端電腦或 Android Studio 建構專案而有所差異。
注意:由於 Gradle 和 Android Gradle 外掛程式是獨立於 Android Studio 之外執行,因此您必須分別更新建構工具。請參閱版本資訊,瞭解如何更新 Gradle 和 Android Gradle 外掛程式。
使用靈活的 Android 建構系統,您無須修改應用程式的核心來源檔案,即可建立自訂建構設定。本頁內容將帶您瞭解 Android 建構系統的運作方式,以及該系統如何協助您自訂及自動執行多項建構設定。如要進一步瞭解如何部署應用程式,請參閱「建構並執行應用程式」一文。如果想立即使用 Android Studio 建立自訂建構設定,請參閱「設定建構變數」一文。
建構程序
建構程序牽涉到許多工具和程序的運作,這些工具和程序會將專案轉換為 Android 應用程式套件 (APK) 或 Android App Bundle (AAB)。
Android Gradle 外掛程式會為您執行大部分的建構程序,但瞭解建構程序的特定切面,有助您根據需求調整建構作業。
不同專案的建構目標也會有所差異。例如,第三方程式庫的建構作業會產生 Android ARchive (AAR) 或 Java Archive (JAR) 程式庫。不過,應用程式是最常見的專案類型,應用程式專案的建構作業會產生用於偵錯或發布的應用程式 APK 或 AAB,供您部署、測試或發布給外部使用者。
儘管本頁重點在於應用程式開發,但其中許多建構步驟和概念皆常見於多數建構類型。
Android 建構詞彙表
Gradle 和 Android Gradle 外掛程式可協助您設定建構作業的下列切面:
- 建構類型
-
建構類型可定義 Gradle 在建構及封裝應用程式時採用的特定屬性,通常是針對開發生命週期的不同階段進行設定。
舉例來說,偵錯建構類型會啟用偵錯選項,並使用偵錯金鑰簽署應用程式;而發布建構類型可能會經過壓縮、模糊處理,並以發布金鑰簽署應用程式供發布使用。
您必須定義至少一個建構類型,才能建構應用程式。根據預設,Android Studio 會建立偵錯和發布這兩種建構類型。如要開始為應用程式自訂封裝設定,必須瞭解如何設定建構類型。
- 變種版本
- 變種版本代表可向使用者發布的不同應用程式版本,例如免費版和付費版。您可運用不同的程式碼和資源來自訂變種版本,同時也能共用及重複使用所有應用程式版本之間通用的部分。您可以選擇是否提供變種版本,但必須手動建立這些版本。在開始建立應用程式的不同版本之前,請參閱「設定變種版本」一文。
- 建構變數
- 建構變數是指建構類型和變種版本結合之後的產物,也是 Gradle 用於建構應用程式的設定。透過建構變數,您就能在開發期間建構變種版本的偵錯版本,或建構變種版本的已簽署發布版本,以供發布。雖然您無法直接設定建構變數,但可以設定組成建構變數的建構類型和變種版本。建立其他建構類型或不同變種版本也會產生額外的建構變數。如要瞭解如何建立及管理建構變數,請參閱「設定建構變數」總覽。
- 資訊清單項目
- 您可以在設定產品建構變數時,指定資訊清單檔案中一部分屬性的數值。相關建構值會覆寫資訊清單檔案中原本的數值。如果要為應用程式產生多種變化版本,指定不同的應用程式名稱、最低 SDK 版本或目標 SDK 版本,這項功能就能派上用場。當同時存在多個資訊清單時,資訊清單合併工具會合併資訊清單設定。
- 依附元件
- 建構系統可管理來自本機檔案系統和遠端存放區的專案依附元件。也就是說,您不需要手動搜尋或下載依附元件的二進位套件,以及將套件複製到專案目錄中。詳情請參閱「新增建構依附元件」一文。
- 簽署
- 建構系統可讓您在建構設定中指定簽署設定,也能在建構程序期間自動簽署應用程式。建構系統會使用已知憑證,透過預設金鑰和憑證簽署偵錯版本,以免在建構期間收到要求輸入密碼的提示。除非您明確定義此建構作業的簽署設定,否則建構系統不會簽署發布版本。如果您沒有發布金鑰,可按照「簽署應用程式」中的說明產生金鑰。您必須使用經過簽署的發布版本,才能透過多數應用程式商店發布應用程式。
- 程式碼和資源縮減
- 您可以透過建構系統為每個建構變數指定不同的 ProGuard 規則檔案。建構應用程式時,建構系統會套用適當的規則,並透過 R8 等內建縮減工具縮減程式碼和資源。 縮減程式碼和資源有助於縮減 APK 或 AAB 的大小。
- 支援多個 APK
- 建構系統可讓您自動建構不同的 APK,讓每個 APK 只包含特定螢幕密度或應用程式二進位檔介面 (ABI) 所需的程式碼和資源。詳情請參閱「建構多個 APK」一文。不過,建議您採用發布單一 AAB 的做法,因為除了螢幕密度和 ABI 之外,此做法還能依據語言分割應用程式套件,同時降低將多個構件上傳至 Google Play 的必要性。凡是在 2021 年 8 月以後提交的新應用程式,都必須使用 AAB。
Android 建構作業中的 Java 版本
無論原始碼是以 Java 和/或 Kotlin 編寫,都必須在幾個位置選擇建構的 JDK 或 Java 語言版本。詳情請參閱「Android 版本中的 Java 版本」。
建構設定檔
建立自訂建構設定時,您需要變更一或多個建構設定檔。這些純文字檔案會使用領域特定語言 (DSL) 描述建構邏輯,並利用 Kotlin 指令碼 (即 Kotlin 語言的變種版本) 來描述建構邏輯。您也可以使用 Groovy,這是 Java 虛擬機器 (JVM) 的動態語言來設定建構項目。
您不需要瞭解 Kotlin 指令碼或 Groovy 即可開始設定建構作業,因為 Android Gradle 外掛程式已提供大多數您需要的 DSL 元素。如要進一步瞭解 Android Gradle 外掛程式 DSL,請參閱 DSL 參考說明文件。Kotlin 指令碼也需要使用基礎 Gradle Kotlin DSL。
啟動新專案時,Android Studio 會自動為您建立部分檔案,並根據適當預設值填入資料。專案檔案結構具有下列版面配置:
└── MyApp/ # Project ├── gradle/ │ └── wrapper/ │ └── gradle-wrapper.properties ├── build.gradle(.kts) ├── settings.gradle(.kts) └── app/ # Module ├── build.gradle(.kts) └── build/ ├── libs/ └── src/ └── main/ # Source set ├── java/ │ └── com.example.myapp ├── res/ │ ├── drawable/ │ ├── values/ │ └── ... └── AndroidManifest.xml
有些 Gradle 建構設定檔是 Android 應用程式標準專案結構的一部分。因此,在開始設定建構作業之前,請務必先瞭解相關檔案的適用範圍與目的,以及其所定義的 DSL 基本元素。
Gradle 包裝函式檔案
Gradle 包裝函式 (gradlew
) 是原始碼中包含的小型應用程式,可下載及啟動 Gradle 本身。如此一來,建構執行作業就會更加穩定。開發人員下載應用程式來源並執行 gradlew
。這樣做會下載必要的 Gradle 發布,並啟動 Gradle 建構應用程式。
gradle/wrapper/gradle-wrapper.properties
檔案內含 distributionUrl
屬性,說明用於執行建構作業的 Gradle 版本。
distributionBase=GRADLE_USER_HOME
distributionPath=wrapper/dists
distributionUrl=https\://services.gradle.org/distributions/gradle-8.0-bin.zip
zipStoreBase=GRADLE_USER_HOME
zipStorePath=wrapper/dists
Gradle 設定檔
settings.gradle.kts
檔案 (適用於 Kotlin DSL) 或 settings.gradle
檔案 (適用於 Groovy DSL) 位於專案根目錄中。這個設定檔可定義專案層級的存放區設定,並告知 Gradle 應在建構應用程式時納入哪些模組。多模組專案必須指定應加入最終版本的所有模組。
在大多數專案中,預設的檔案內容如下所示:
Kotlin
pluginManagement { /** * The pluginManagement.repositories block configures the * repositories Gradle uses to search or download the Gradle plugins and * their transitive dependencies. Gradle pre-configures support for remote * repositories such as JCenter, Maven Central, and Ivy. You can also use * local repositories or define your own remote repositories. The code below * defines the Gradle Plugin Portal, Google's Maven repository, * and the Maven Central Repository as the repositories Gradle should use to look for its * dependencies. */ repositories { gradlePluginPortal() google() mavenCentral() } } dependencyResolutionManagement { /** * The dependencyResolutionManagement.repositories * block is where you configure the repositories and dependencies used by * all modules in your project, such as libraries that you are using to * create your application. However, you should configure module-specific * dependencies in each module-level build.gradle file. For new projects, * Android Studio includes Google's Maven repository and the Maven Central * Repository by default, but it does not configure any dependencies (unless * you select a template that requires some). */ repositoriesMode.set(RepositoriesMode.FAIL_ON_PROJECT_REPOS) repositories { google() mavenCentral() } } rootProject.name = "My Application" include(":app")
Groovy
pluginManagement { /** * The pluginManagement.repositories block configures the * repositories Gradle uses to search or download the Gradle plugins and * their transitive dependencies. Gradle pre-configures support for remote * repositories such as JCenter, Maven Central, and Ivy. You can also use * local repositories or define your own remote repositories. The code below * defines the Gradle Plugin Portal, Google's Maven repository, * and the Maven Central Repository as the repositories Gradle should use to look for its * dependencies. */ repositories { gradlePluginPortal() google() mavenCentral() } } dependencyResolutionManagement { /** * The dependencyResolutionManagement.repositories * block is where you configure the repositories and dependencies used by * all modules in your project, such as libraries that you are using to * create your application. However, you should configure module-specific * dependencies in each module-level build.gradle file. For new projects, * Android Studio includes Google's Maven repository and the Maven Central * Repository by default, but it does not configure any dependencies (unless * you select a template that requires some). */ repositoriesMode.set(RepositoriesMode.FAIL_ON_PROJECT_REPOS) repositories { google() mavenCentral() } } rootProject.name = "My Application" include ':app'
頂層建構檔案
頂層 build.gradle.kts
檔案 (適用於 Kotlin DSL) 或 build.gradle
檔案 (適用於 Groovy DSL) 位於專案根目錄中。通常會定義專案中模組使用的常見外掛程式版本。
以下程式碼範例說明在建立新專案後,頂層建構指令碼中的預設設定和 DSL 元素:
Kotlin
plugins { /** * Use `apply false` in the top-level build.gradle file to add a Gradle * plugin as a build dependency but not apply it to the current (root) * project. Don't use `apply false` in sub-projects. For more information, * see Applying external plugins with same version to subprojects. */ id("com.android.application") version "8.1.0" apply false id("com.android.library") version "8.1.0" apply false id("org.jetbrains.kotlin.android") version "1.9.20" apply false }
Groovy
plugins { /** * Use `apply false` in the top-level build.gradle file to add a Gradle * plugin as a build dependency but not apply it to the current (root) * project. Don't use `apply false` in sub-projects. For more information, * see Applying external plugins with same version to subprojects. */ id 'com.android.application' version '8.1.0' apply false id 'com.android.library' version '8.1.0' apply false id 'org.jetbrains.kotlin.android' version '1.9.20' apply false }
模組層級建構檔案
模組層級 build.gradle.kts
(適用於 Kotlin DSL) 或 build.gradle
檔案 (適用於 Groovy DSL) 位於各個 project/module/
目錄中。可讓您對其所在的特定模組調整建構設定。調整相關建構設定可讓您提供自訂封裝選項,例如額外的建構類型和變種版本,並可覆寫 main/
應用程式資訊清單或頂層建構指令碼中的相關設定。
Android SDK 設定
應用程式的模組層級建構檔案包含設定,以指示編譯時使用的 Android SDK 版本、選取平台行為,以及指定執行應用程式的最低版本。
-
compileSdk
-
編譯原始碼時,
compileSdk
會決定可用的 Android 和 Java API。如要使用最新的 Android 功能,請在編譯時使用最新的 Android SDK。部分 Android 平台 API 可能不適用於舊版 API 級別。您可以 有條件限制使用較新的功能,或使用 AndroidX 相容性程式庫來使用較低 Android API 級別的最新功能。
每個 Android SDK 都提供一部分 Java API,以便用於應用程式。「 我可以在 Java 或 Kotlin 原始碼中使用哪些 Java API」表格,瞭解 Android SDK 版本提供哪些 Java API 級別。系統會透過脫糖程序,在舊版 Android 上支援較新的 Java API,而且您必須在建構作業中啟用該 API。
請注意,您加入做為依附元件的部分程式庫可能會為
compileSdk
設定最小值。如果compileSdk
低於這個值,Gradle 會回報建構錯誤。 -
minSdk
-
minSdk
會指定您想讓應用程式支援的最低 Android 版本。設定minSdk
會限制哪些裝置可安裝您的應用程式。如要支援較低版本的 Android,您可能需要在程式碼中取得更多條件式檢查,或使用 AndroidX 相容性程式庫。建議您根據仍使用低版本的使用者百分比,衡量支援較低版本的維護費用。如要查看目前的版本使用百分比,請參閱 Android Studio 「New Project 精靈」中的版本圖表。
在 Android Studio 中編輯程式碼或執行檢查時,Lint 會警告您所使用的 API,而
minSdk
中沒有該 API。建議您透過 更新條件設定,或使用Appcompat
確保回溯相容性。 -
targetSdk
-
targetSdk
提供兩種用途:- 這會設定應用程式的執行階段行為。
- 可用來驗證您測試的 Android 版本。
如果您執行的裝置搭載的 Android 版本高於
targetSdk
,Android 會以相容模式執行應用程式,且運作方式與targetSdk
中指出的較低版本類似。例如,API 23 引入執行階段權限模型時,並非所有應用程式都能立即採用。將targetSdk
設為 22 後,這些應用程式就能在不使用執行階段權限的情況下,在 API 23 裝置上執行,而且可使用最新版compileSdk
內含的功能。Google Play 發布政策會 針對目標 API 級別強制執行其他政策。targetSdk
的值必須小於或等於compileSdk
的值。
注意:compileSdk
和 targetSdk
的值不必相同。請謹記以下基本原則:
compileSdk
可讓您存取新 APItargetSdk
會設定應用程式的執行階段行為targetSdk
必須小於或等於compileSdk
應用程式模組建構指令碼範例
以下的 Android 應用程式模組建構指令碼範例,概要說明部分基本的 DSL 元素和設定:
Kotlin
/** * The first section in the build configuration applies the Android Gradle plugin * to this build and makes the android block available to specify * Android-specific build options. */ plugins { id("com.android.application") } /** * Locate (and possibly download) a JDK used to build your kotlin * source code. This also acts as a default for sourceCompatibility, * targetCompatibility and jvmTarget. Note that this does not affect which JDK * is used to run the Gradle build itself, and does not need to take into * account the JDK version required by Gradle plugins (such as the * Android Gradle Plugin) */ kotlin { jvmToolchain(11) } /** * The android block is where you configure all your Android-specific * build options. */ android { /** * The app's namespace. Used primarily to access app resources. */ namespace = "com.example.myapp" /** * compileSdk specifies the Android API level Gradle should use to * compile your app. This means your app can use the API features included in * this API level and lower. */ compileSdk = 33 /** * The defaultConfig block encapsulates default settings and entries for all * build variants and can override some attributes in main/AndroidManifest.xml * dynamically from the build system. You can configure product flavors to override * these values for different versions of your app. */ defaultConfig { // Uniquely identifies the package for publishing. applicationId = "com.example.myapp" // Defines the minimum API level required to run the app. minSdk = 21 // Specifies the API level used to test the app. targetSdk = 33 // Defines the version number of your app. versionCode = 1 // Defines a user-friendly version name for your app. versionName = "1.0" } /** * The buildTypes block is where you can configure multiple build types. * By default, the build system defines two build types: debug and release. The * debug build type is not explicitly shown in the default build configuration, * but it includes debugging tools and is signed with the debug key. The release * build type applies ProGuard settings and is not signed by default. */ buildTypes { /** * By default, Android Studio configures the release build type to enable code * shrinking, using minifyEnabled, and specifies the default ProGuard rules file. */ getByName("release") { isMinifyEnabled = true // Enables code shrinking for the release build type. proguardFiles( getDefaultProguardFile("proguard-android.txt"), "proguard-rules.pro" ) } } /** * The productFlavors block is where you can configure multiple product flavors. * This lets you create different versions of your app that can * override the defaultConfig block with their own settings. Product flavors * are optional, and the build system does not create them by default. * * This example creates a free and paid product flavor. Each product flavor * then specifies its own application ID, so that they can exist on the Google * Play Store, or an Android device, simultaneously. * * If you declare product flavors, you must also declare flavor dimensions * and assign each flavor to a flavor dimension. */ flavorDimensions += "tier" productFlavors { create("free") { dimension = "tier" applicationId = "com.example.myapp.free" } create("paid") { dimension = "tier" applicationId = "com.example.myapp.paid" } } /** * To override source and target compatibility (if different from the * toolchain JDK version), add the following. All of these * default to the same value as kotlin.jvmToolchain. If you're using the * same version for these values and kotlin.jvmToolchain, you can * remove these blocks. */ //compileOptions { // sourceCompatibility = JavaVersion.VERSION_11 // targetCompatibility = JavaVersion.VERSION_11 //} //kotlinOptions { // jvmTarget = "11" //} } /** * The dependencies block in the module-level build configuration file * specifies dependencies required to build only the module itself. * To learn more, go to Add build dependencies. */ dependencies { implementation(project(":lib")) implementation("androidx.appcompat:appcompat:1.6.1") implementation(fileTree(mapOf("dir" to "libs", "include" to listOf("*.jar")))) }
Groovy
/** * The first line in the build configuration applies the Android Gradle plugin * to this build and makes the android block available to specify * Android-specific build options. */ plugins { id 'com.android.application' } /** * Locate (and possibly download) a JDK used to build your kotlin * source code. This also acts as a default for sourceCompatibility, * targetCompatibility and jvmTarget. Note that this does not affect which JDK * is used to run the Gradle build itself, and does not need to take into * account the JDK version required by Gradle plugins (such as the * Android Gradle Plugin) */ kotlin { jvmToolchain 11 } /** * The android block is where you configure all your Android-specific * build options. */ android { /** * The app's namespace. Used primarily to access app resources. */ namespace 'com.example.myapp' /** * compileSdk specifies the Android API level Gradle should use to * compile your app. This means your app can use the API features included in * this API level and lower. */ compileSdk 33 /** * The defaultConfig block encapsulates default settings and entries for all * build variants and can override some attributes in main/AndroidManifest.xml * dynamically from the build system. You can configure product flavors to override * these values for different versions of your app. */ defaultConfig { // Uniquely identifies the package for publishing. applicationId 'com.example.myapp' // Defines the minimum API level required to run the app. minSdk 21 // Specifies the API level used to test the app. targetSdk 33 // Defines the version number of your app. versionCode 1 // Defines a user-friendly version name for your app. versionName "1.0" } /** * The buildTypes block is where you can configure multiple build types. * By default, the build system defines two build types: debug and release. The * debug build type is not explicitly shown in the default build configuration, * but it includes debugging tools and is signed with the debug key. The release * build type applies ProGuard settings and is not signed by default. */ buildTypes { /** * By default, Android Studio configures the release build type to enable code * shrinking, using minifyEnabled, and specifies the default ProGuard rules file. */ release { minifyEnabled true // Enables code shrinking for the release build type. proguardFiles getDefaultProguardFile('proguard-android.txt'), 'proguard-rules.pro' } } /** * The productFlavors block is where you can configure multiple product flavors. * This lets you create different versions of your app that can * override the defaultConfig block with their own settings. Product flavors * are optional, and the build system does not create them by default. * * This example creates a free and paid product flavor. Each product flavor * then specifies its own application ID, so that they can exist on the Google * Play Store, or an Android device, simultaneously. * * If you declare product flavors, you must also declare flavor dimensions * and assign each flavor to a flavor dimension. */ flavorDimensions "tier" productFlavors { free { dimension "tier" applicationId 'com.example.myapp.free' } paid { dimension "tier" applicationId 'com.example.myapp.paid' } } /** * To override source and target compatibility (if different from the * tool chain JDK version), add the following. All of these * default to the same value as kotlin.jvmToolchain. If you're using the * same version for these values and kotlin.jvmToolchain, you can * remove these blocks. */ //compileOptions { // sourceCompatibility JavaVersion.VERSION_11 // targetCompatibility JavaVersion.VERSION_11 //} //kotlinOptions { // jvmTarget = '11' //} } /** * The dependencies block in the module-level build configuration file * specifies dependencies required to build only the module itself. * To learn more, go to Add build dependencies. */ dependencies { implementation project(":lib") implementation 'androidx.appcompat:appcompat:1.6.1' implementation fileTree(dir: 'libs', include: ['*.jar']) }
Gradle 屬性檔案
Gradle 也包含兩個位於專案根目錄中的屬性檔案,可用來指定 Gradle 建構工具包本身的設定:
-
gradle.properties
- 您可以在這裡調整專案層級的 Gradle 設定,例如 Gradle Daemon 的堆積大小上限。詳情請參閱「建構環境」一文。
-
local.properties
- 設定建構系統的本機環境屬性,包括:
ndk.dir
- 到 NDK 的路徑。這項屬性已淘汰。任何下載的 NDK 版本都會安裝在 Android SDK 目錄的ndk
目錄中。sdk.dir
- 指向 Android SDK 的路徑。cmake.dir
- 到 CMake 的路徑。ndk.symlinkdir
- 在 Android Studio 3.5 以上版本中建立 NDK 的符號連結,比起已安裝的 NDK 路徑,這類連結可能會較短。
將 NDK 重新映射到較短的路徑 (僅限 Windows)
在 Windows 中,已安裝 NDK 資料夾中的工具 (例如 ld.exe
) 會產生長路徑。這些工具無法妥善支援長路徑。
如要建立較短的路徑,請在 local.properties
中設定 ndk.symlinkdir
屬性,要求 Android Gradle 外掛程式建立指向 NDK 的符號連結。該符號連結的路徑可能會比現有 NDK 資料夾的路徑短。例如,ndk.symlinkdir = C:\
會產生以下符號連結:C:\ndk\19.0.5232133
將專案與 Gradle 檔案同步處理
當您變更專案中的建構設定檔時,Android Studio 會要求您同步處理專案檔案,以便匯入建構設定的變更內容,並執行相關檢查,確認您的設定不會發生建構錯誤。

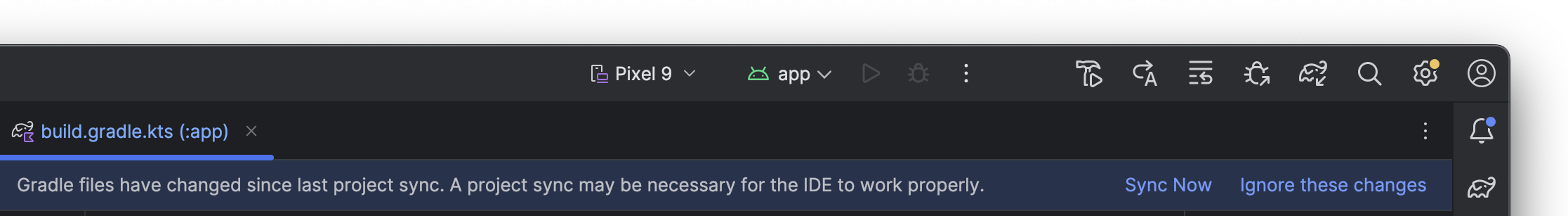

如要同步處理專案檔案,請您進行變更後顯示的通知列中按一下「Sync Now」(如圖 1 所示),或按一下選單列中的「Sync Project」圖示 。如果 Android Studio 發現您的設定有誤,例如原始碼使用了只會在
compileSdkVersion
以上的 API 級別中提供的 API 功能,就會透過「Messages」視窗說明問題。

來源集
Android Studio 會按照邏輯將所有模組的原始碼和資源歸類為多個來源集。當您建立新模組時,Android Studio 會在模組內建立 main/
來源集。模組的 main/
來源集包含其所有建構變數使用的程式碼和資源。
其他來源集目錄為選用性質,因此當您設定新的建構變數時,Android Studio 不會自動建立這些目錄。然而,建立類似於 main/
的來源集有助於管理 Gradle 僅在建構特定應用程式版本時才會使用的檔案和資源:
-
src/main/
- 此來源集包含所有建構變化版本共用的程式碼和資源。
-
src/buildType/
- 建立此來源集,以便納入特定建構類型的程式碼和資源。
-
src/productFlavor/
- 建立此來源集,納入僅用於特定變種版本的程式碼和資源。
注意:如果您將建構設定調整為合併多個變種版本,則可以在不同版本維度之間為每個變種版本「組合」建立來源集目錄:
src/productFlavor1ProductFlavor2/
-
src/productFlavorBuildType/
- 建立此來源集,納入僅用於特定建構變數的程式碼和資源。
舉例來說,如要產生應用程式的「fullDebug」版本,建構系統將會合併下列來源集的程式碼、設定和資源:
-
src/fullDebug/
(建構變數來源集) -
src/debug/
(建構類型來源集) -
src/full/
(變種版本來源集) -
src/main/
(主要來源集)
注意:在 Android Studio 中新建檔案或目錄時,請依序點選「File」>「New」選單選項,為特定來源集建立檔案或目錄。可供選擇的來源集取決於您的建構設定。如果所需的目錄不存在,Android Studio 就會自動建立。
如果不同的來源集包含相同檔案的不同版本,Gradle 會按照下列優先順序決定要使用的檔案。左側來源集會覆寫右側來源集的檔案和設定:
「build variant」>「build type」>「product flavor」>「main source set」>「library dependencies」這樣一來,Gradle 就能按照您要建立的建構變化版本選擇專用的檔案,同時重複使用其他應用程式版本常見的活動、應用程式邏輯和資源。
合併多個資訊清單時,Gradle 會使用相同的優先順序,因此每個建構變數都能在最終資訊清單中定義不同的元件或權限。如要進一步瞭解如何建立自訂來源集,請參閱「建立來源集」相關說明。
版本目錄
如果您的建構包含多個具備通用依附元件的模組,或是有多個具有通用依附元件的獨立專案,建議您使用版本目錄或材質帳單 (BOM) 來指定常用版本。
其他建構系統
使用 Bazel 建構 Android 應用程式是可行的,但我們並不正式支援。Android Studio 並未正式支援 Bazel 專案。
如要進一步瞭解使用 Bazel 進行建構的目前限制,請參閱已知問題。
