Keyboard focus management in Compose

Stay organized with collections Save and categorize content based on your preferences.

1. Introduction

Users can interact with your app using a hardware keyboard, typically on large screen devices like tablets and ChromeOS devices, but also on XR devices. It's important that users can navigate your app as effectively with a hardware keyboard as with a touchscreen. Additionally, when designing your app for TV and car displays, which might not have touch input and instead rely on D-pads or rotary encoders, you need to apply similar keyboard navigation principles.

Compose allows you to handle input from hardware keyboards, D-pads, and rotary encoders in a unified way. A key principle of good user experience for these input methods is that users can intuitively and consistently move keyboard focus to the interactive component they want to interact with.

In this codelab, you'll learn the following:

• How to implement common keyboard focus management patterns for intuitive and consistent navigation
• How to test whether keyboard focus movement behaves as expected

Prerequisites

• Experience building apps with Compose
• Basic knowledge of Kotlin, including lambdas and coroutines

What you build

You implement the following typical keyboard focus management patterns:

• Keyboard focus movement — From start to end, top to bottom in the z shaped pattern
• Logical initial focus — Set focus to the UI element your user is likely to interact with
• Focus restoration — Move focus to the UI element your user previously interacted with

What you'll learn

• Basics of focus management in Compose
• How to make an UI element as a focus target
• How to request focus to move a UI element
• How to move the keyboard focus to a certain UI element in a group of UI elements

What you need

• Android Studio Ladybug or newer version
• Any of the following devices to run the sample app:
• A large screen device with a hardware keyboard
• An Android virtual device for large screen devices, such as the resizable emulator

2. Set up

1. Clone the large-screen-codelabs GitHub repository:

git clone https://github.com/android/large-screen-codelabs

Alternatively, you can download and unarchive the large-screen-codelabs zip file:

file_downloadDownload source code

2. Navigate to the focus-management-in-compose folder.
3. In Android Studio, open the project. The focus-management-in-compose folder contains one project.
4. If you don't have an Android tablet, foldable device, or a ChromeOS device with a hardware keyboard, open Device Manager in Android Studio and then create the Resizable device in the Phone category.

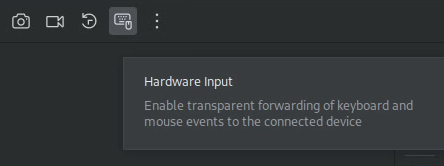

Figure 1. Configuring the resizable emulator in Android Studio.

3. Explore the starter code

The project has two modules:

• start — Contains the starter code of the project. You make changes to this code to complete the codelab.
• solution — Contains the completed code for this codelab.

The sample app consists of three tabs:

• Focus target
• Focus traversal order
• Focus group

The focus target tab is displayed when the app is launched.

Figure 2. The Focus target tab is displayed when the app launches.

The ui package contains the following UI code you interact with:

• App.kt — Implements tabs
• tab.FocusTargetTab.kt — Contains the code for the focus target tab
• tab.FocusTraversalOrderTab.kt — Contains the code for the focus traversal order tab
• tab.FocusGroup.kt — Contains the code for the focus group tab
• FocusGroupTabTest.kt — An instrumented test for tab.FocusTargetTab.kt )The file is located in the androidTest folder)

4. Focus target

A focus target is a UI element that keyboard focus can move to. Users can move the keyboard focus with the Tab key or directional (arrow) keys:

• Tab key — Focus moves to the next focus target or the previous focus target one dimensionally.
• Directional keys — Focus can move two dimensionally: up, down, left, and right.

Tabs are focus targets. In the sample app, the background of the tabs is visually updated when the tab acquires focus.

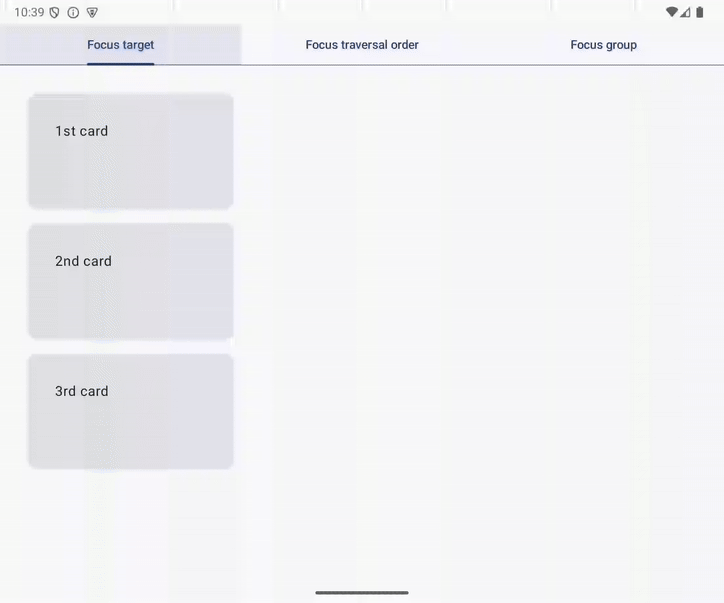

Figure 3. The component background changes when focus moves to a focus target.

Interactive UI elements are focus targets by default

An interactive component is a focus target by default. In other words, the UI element is a focus target if users can tap it.

The sample app has three cards in the Focus target tab. 1st card and 3rd card are focus targets; 2nd card is not. The background of 3rd card is updated when the user moves focus from 1st card with the Tab key.

Figure 4. App focus targets exclude 2nd card.

Modify 2nd card to be a focus target

You can make 2nd card a focus target by changing it to an interactive UI element. The easiest way is by using the clickable modifier as follows:

1. Open FocusTargetTab.kt in the tabs package
2. Modify the SecondCard composable with the clickable modifier as follows:

@Composable
fun FocusTargetTab(
    onClick: () -> Unit,
    modifier: Modifier = Modifier
) {
    Column(
        verticalArrangement = Arrangement.spacedBy(16.dp),
        modifier = modifier
    ) {
        FirstCard(
            onClick = onClick,
            modifier = Modifier.width(240.dp)
        )
        SecondCard(
            modifier = Modifier
                .width(240.dp)
                .clickable(onClick = onClick)
        )
        ThirdCard(
            onClick = onClick,
            modifier = Modifier.width(240.dp)
        )
    }
}

Run it

Now, the user can move focus to 2nd card in addition to 1st card and 3rd card. You can try it on the Focus target tab; confirm that you can move focus from 1st card to 2nd card using the Tab key.

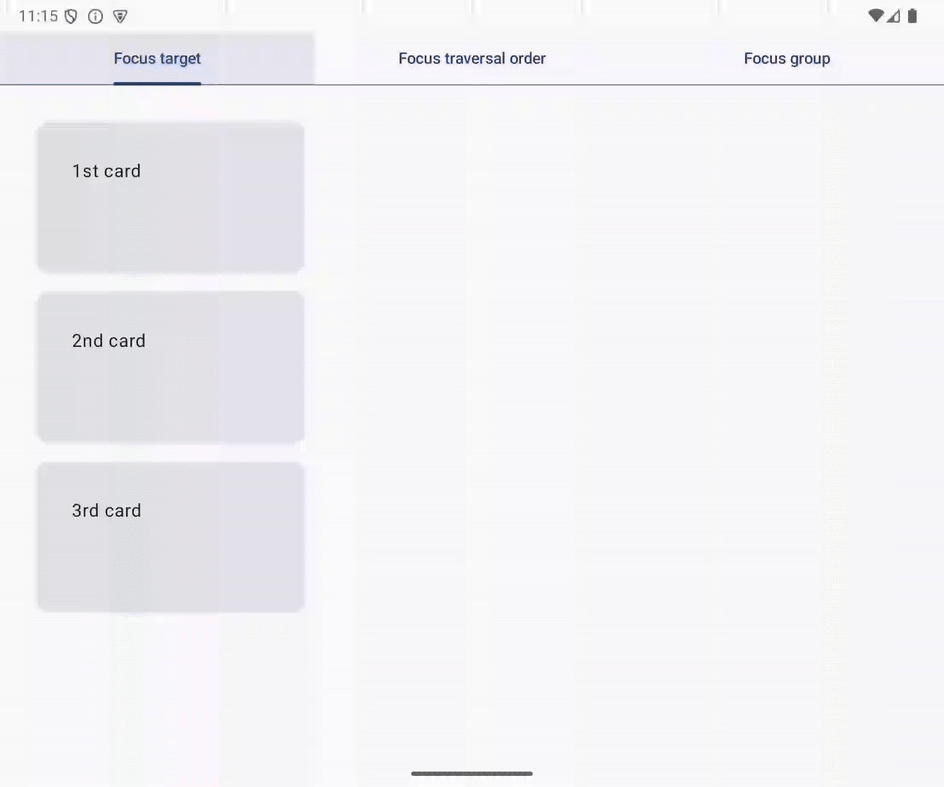

Figure 5. Moving focus from 1st card to 2nd card with the Tab key.

5. Focus traversal in a z-shaped pattern

Users expect keyboard focus to move from left to right and top to bottom in left-to-right language settings. This focus traversal order is called a z-shaped pattern.

Compose, however, ignores the layout when it determines the Tab key's next focus target and instead uses one-dimensional focus traversal based on the order of composable function calls.

One-dimensional focus traversal

One-dimensional focus traversal order comes from the order of composable function calls rather than the app layout.

In the sample app, the focus moves in the following order on the Focus traversal order tab:

1. 1st card
2. 4th card
3. 3rd card
4. 2nd card

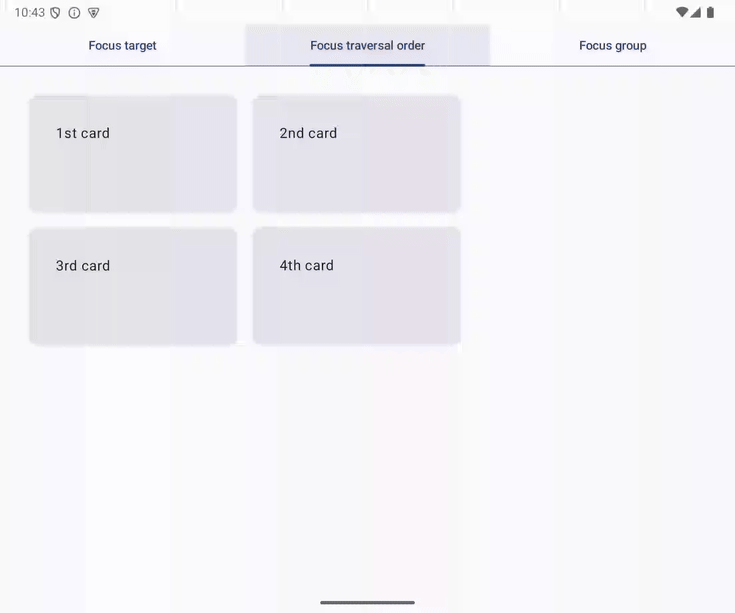

Figure 6. Focus traversal follows the order of composable functions.

The FocusTraversalOrderTab function implements the sample app's Focus traversal tab. The function calls composable functions for the cards: FirstCard, FourthCard, ThirdCard, and SecondCard, in that order.

@Composable
fun FocusTraversalOrderTab(
    modifier: Modifier = Modifier
) {
    Row(
        horizontalArrangement = Arrangement.spacedBy(16.dp),
        modifier = modifier
    ) {
        Column(
            verticalArrangement = Arrangement.spacedBy(16.dp)
        ) {
            FirstCard(
                onClick = onClick,
                modifier = Modifier.width(240.dp)
            )
            FourthCard(
                onClick = onClick,
                modifier = Modifier
                    .width(240.dp)
                    .offset(x = 256.dp)
            )
            ThirdCard(
                onClick = onClick,
                modifier = Modifier
                    .width(240.dp)
                    .offset(y = (-151).dp)
            )
        }
        SecondCard(
            modifier = Modifier.width(240.dp)
        )
    }
}

Focus movement in the z-shaped pattern

You can integrate z-shaped focus movement in the sample app's Focus traversal order tab in the following steps:

1. Open tabs.FocusTraversalOrderTab.kt
2. Remove the offset modifier from the ThirdCard and FourthCard composables.
3. Change the layout of the tab to one column with two rows from the current one row with two columns.
4. Move the FirstCard and SecondCard composables to the first row.
5. Move the ThirdCard and FourthCard composables to the second row.

The modified code is as follows:

@Composable
fun FocusTraversalOrderTab(
    onClick: () -> Unit,
    modifier: Modifier = Modifier
) {
    Column(
        verticalArrangement = Arrangement.spacedBy(16.dp),
        modifier = modifier
    ) {
        Row(
            horizontalArrangement = Arrangement.spacedBy(16.dp)
        ) {
            FirstCard(
                onClick = onClick,
                modifier = Modifier.width(240.dp),
            )
            SecondCard(
                onClick = onClick,
                modifier = Modifier.width(240.dp)
            )
        }
        Row(
            horizontalArrangement = Arrangement.spacedBy(16.dp)
        ) {
            ThirdCard(
                onClick = onClick,
                modifier = Modifier.width(240.dp)
            )
            FourthCard(
                onClick = onClick,
                modifier = Modifier.width(240.dp)
            )
        }
    }
}

Run it

Now, the user can move the focus from right to left, top to bottom in the z-shaped pattern. You can try it in the Focus traversal order tab and confirm that the focus moves in the following order with the Tab key:

1. 1st card
2. 2nd card
3. 3rd card
4. 4th card

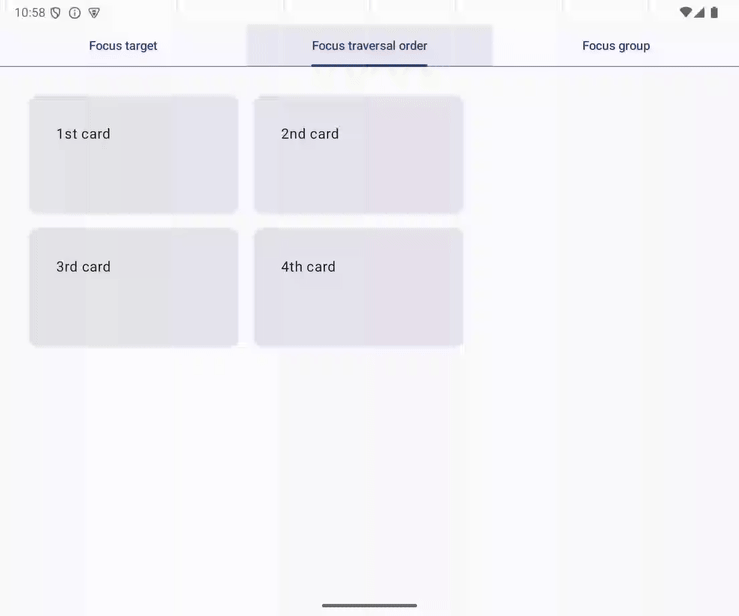

Figure 7. Focus traversal in a z-shaped pattern.

6. focusGroup

Focus moves to 3rd card from 1st card with the right directional key on the Focus group tab. The movement is probably slightly confusing for users as the two cards are not side by side.

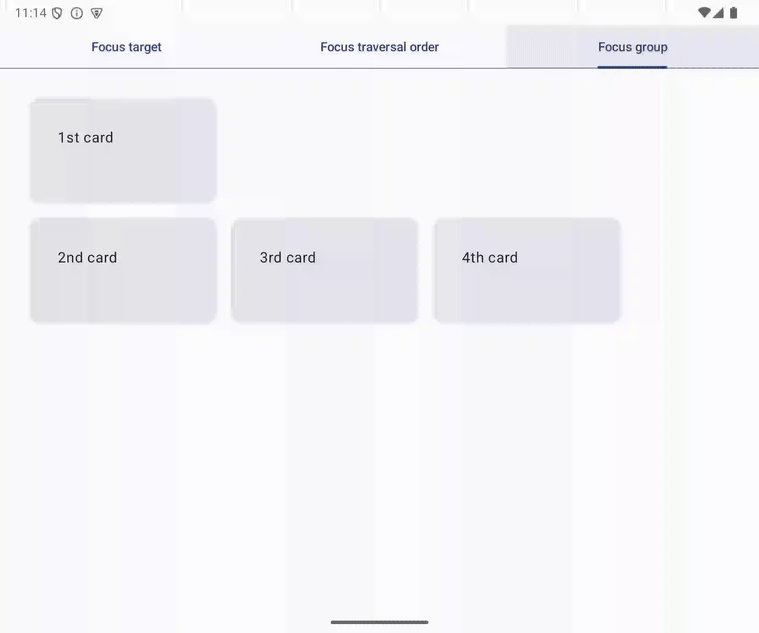

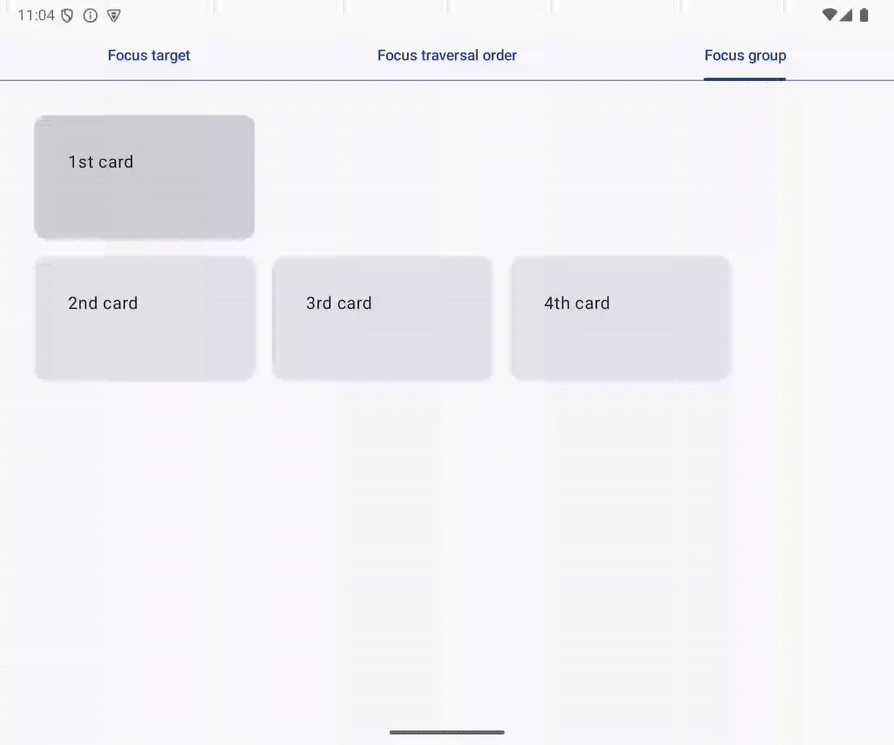

Figure 8. Unexpected focus movement from 1st card to 3rd card.

Two-dimensional focus traversal refers to layout information

Pressing a direction key triggers two-dimensional focus traversal. This is a common focus traversal on TVs as users interact with your app with a D-pad. Pressing keyboard arrow keys also triggers two-dimensional focus traversal as they mimic navigation with a D-pad.

In two-dimensional focus traversal, the system refers to the geometric information of UI elements and determines the focus target to move focus. For example, focus moves to 1st card from the focus target tab with the down directional key, and pressing the up directional key moves focus to the focus target tab.

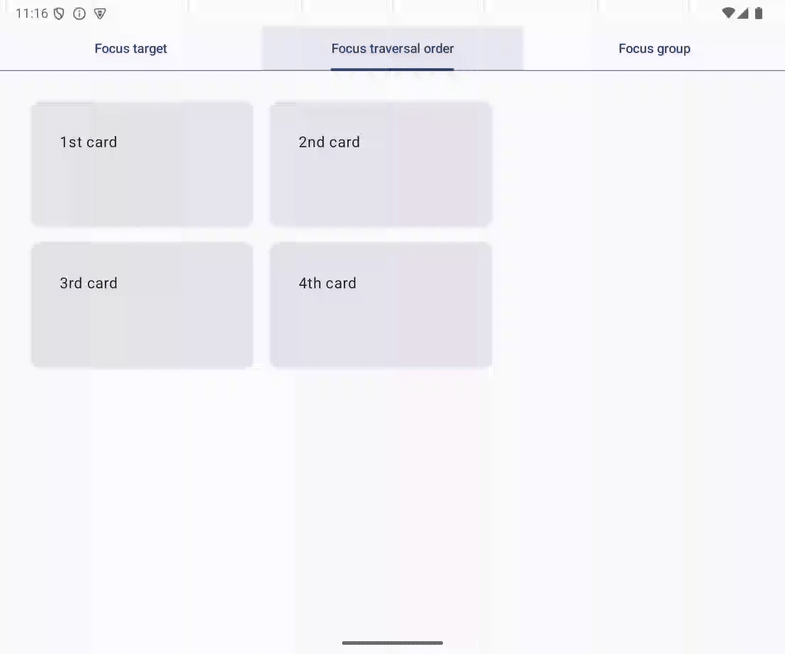

Figure 9. Focus traversal with down and up directional keys.

Two-dimensional focus traversal does not wrap around, in contrast to one-dimensional focus traversal with the Tab key. For example, the user can't move focus with the down key when 2nd card gets focused.

Figure 10. Directional down key can't move focus when 2nd card is focused.

Focus targets are at the same level

The following code implements the screen mentioned above. There are four focus targets: FirstCard, SecondCard, ThirdCard, and FourthCard. These four focus targets are at the same level, and ThirdCard is the first item to the right of FirstCard in the layout. That's why focus moves to 3rd card from 1st card with the right directional key.

@Composable
fun FocusGroupTab(
    onClick: () -> Unit,
    modifier: Modifier = Modifier
) {
    Column(
        verticalArrangement = Arrangement.spacedBy(16.dp),
        modifier = modifier,
    ) {
        FirstCard(
            onClick = onClick,
            modifier = Modifier.width(208.dp)
        )
        Row(
            horizontalArrangement = Arrangement.spacedBy(16.dp),
        ) {
            SecondCard(
                onClick = onClick,
                modifier = Modifier.width(208.dp)
            )
            ThirdCard(
                onClick = onClick,
                modifier = Modifier.width(208.dp)
            )
            FourthCard(
                onClick = onClick,
                modifier = Modifier.width(208.dp)
            )
        }
    }
}

Group focus targets with the focusGroup modifier

You can change the confusing focus movement with the following steps:

1. Open tabs.FocusGroup.kt
2. Modify the Column composable function in the FocusGroupTab composable function with the focusGroup modifier.

The updated code is as follows:

@Composable
fun FocusGroupTab(
    onClick: () -> Unit,
    modifier: Modifier = Modifier
) {
    Column(
        verticalArrangement = Arrangement.spacedBy(16.dp),
        modifier = modifier,
    ) {
        FirstCard(
            onClick = onClick,
            modifier = Modifier.width(208.dp)
        )
        Row(
            horizontalArrangement = Arrangement.spacedBy(16.dp),
            modifier = Modifier.focusGroup(),
        ) {
            SecondCard(
                onClick = onClick,
                modifier = Modifier.width(208.dp)
            )
            ThirdCard(
                onClick = onClick,
                modifier = Modifier.width(208.dp)
            )
            FourthCard(
                onClick = onClick,
                modifier = Modifier.width(208.dp)
            )
        }
    }
}

The focusGroup modifier creates a focus group that consists of the focus targets inside the modified component. The focus targets in the focus group and the ones outside of the focus group are at different levels, and there is no focus target placed on the right-hand side of the FirstCard composable. As a result, focus does not move to any cards from 1st card with the right directional key.

Run it

Now, focus does not move to 3rd card from 1st card with the right directional key in the sample app's Focus group tab.

7. Request focus

Users can't use keyboards or D-pads to select arbitrary UI elements to interact with. Users need to move the keyboard focus to an interactive component before they interact with the element.

For example, users need to move focus from the Focus target tab to 1st card before they interact with the card. You can reduce the number of actions to start your user's primary task by logically setting initial focus.

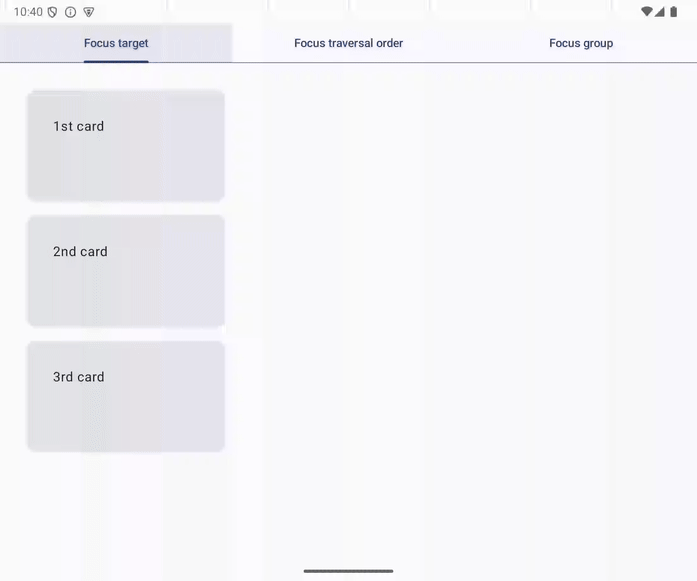

Figure 11. Three Tab key presses move focus to 1st card.

Request focus with FocusRequester

You can request focus to move an UI element with FocusRequester. A FocusRequester object should be associated with an UI element before calling the requestFocus() method.

Set the initial focus to 1st card

You can set the initial focus to 1st card with the following steps:

1. Open tabs.FocusTarget.kt
2. Declare the firstCard value in the FocusTargetTab composable function, and initialize the value with a FocusRequester object that is returned from the remember function.
3. Modify the FirstCard composable function with the focusRequester modifier.
4. Specify the firstCard value as the argument of the focusRequester modifier.
5. Call the LaunchedEffect composable function with Unit value, and call the requestFocus() method over the firstCard value in the lambda passed to the LaunchedEffect composable function.

A FocusRequester object is created and associated with a UI element in the second and third steps. In the fifth step, focus is requested to move to the associated UI element when the FocusdTargetTab composable is composed the first time.

The updated code looks as follows:

@Composable
fun FocusTargetTab(
    onClick: () -> Unit,
    modifier: Modifier = Modifier
) {
    val firstCard = remember { FocusRequester() }

    Column(
        verticalArrangement = Arrangement.spacedBy(16.dp),
        modifier = modifier
    ) {
        FirstCard(
            onClick = onClick,
            modifier = Modifier
                .width(240.dp)
                .focusRequester(focusRequester = firstCard)
        )
        SecondCard(
            modifier = Modifier
                .width(240.dp)
                .clickable(onClick = onClick)
        )
        ThirdCard(
            onClick = onClick,
            modifier = Modifier.width(240.dp)
        )
    }

    LaunchedEffect(Unit) {
        firstCard.requestFocus()
    }
}

Run it

Now, keyboard focus moves to 1st card in the Focus target tab when the tab is selected. You can try it by switching tabs. Also, 1st card is selected when the app launches.

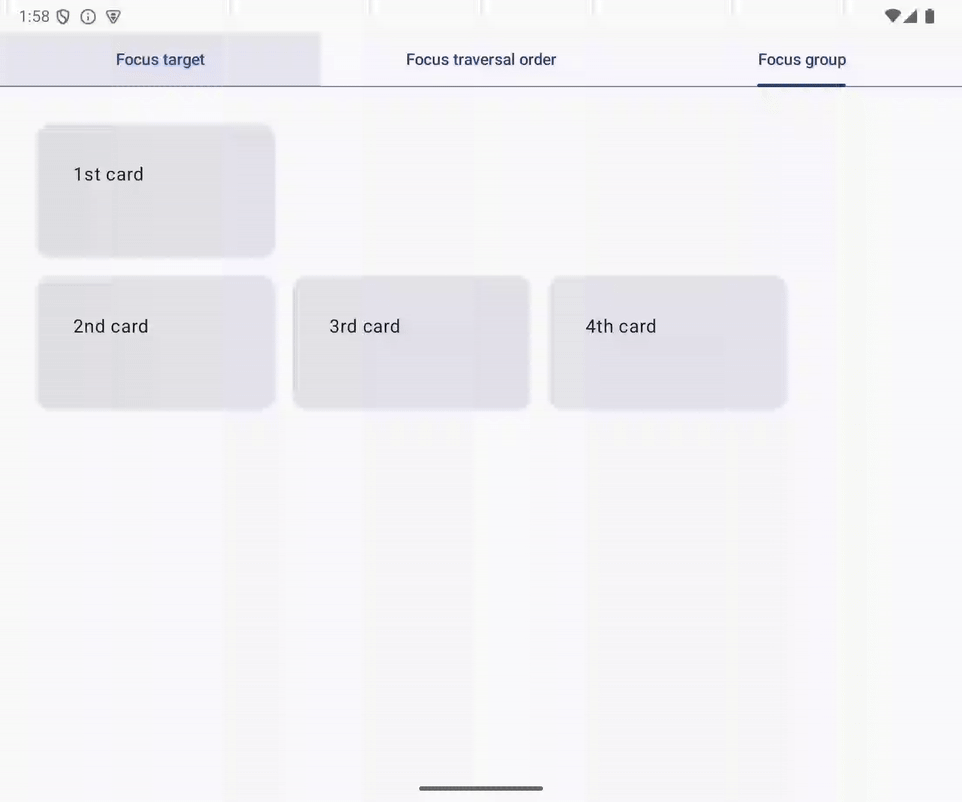

Figure 12. Focus moves to 1st card when the Focus target tab is selected.

8. Move focus to the selected tab

You can specify the focus target when keyboard focus is entering a focus group. For example, you can move the focus to the selected tab when your user is moving focus to the tab row.

You can implement this behavior with the following steps:

1. Open App.kt.
2. Declare the focusRequesters value in the App composable function.
3. Initialize the focusRequesters value with the return value of the remember function that returns a list of FocusRequester objects. The length of the returned list should be equal to the length of Screens.entries.
4. Associate each FocusRequester object of the focusRequester value with the Tab composable by modifying the Tab composable with the focusRequester modifier.
5. Modify the PrimaryTabRow composable with the focusProperties modifier and the focusGroup modifier.
6. Pass a lambda to the focusProperties modifier, and associate the enter property with another lambda.
7. Return the FocusRequester, which is indexed with the selectedTabIndex value in the focusRequesters value, from the lambda associated with the enter property.

The modified code looks as follows:

@Composable
fun App(
    modifier: Modifier = Modifier,
) {
    val context = LocalContext.current

    var selectedScreen by rememberSaveable { mutableStateOf(Screen.FocusTarget) }
    val selectedTabIndex = Screen.entries.indexOf(selectedScreen)
    val focusRequesters = remember {
        List(Screen.entries.size) { FocusRequester() }
    }

    Column(modifier = modifier) {
        PrimaryTabRow(
            selectedTabIndex = selectedTabIndex,
            modifier = Modifier
                .focusProperties {
                    enter = {
                        focusRequesters[selectedTabIndex]
                    }
                }
                .focusGroup()
        ) {
            Screen.entries.forEachIndexed { index, screen ->
                Tab(
                    selected = screen == selectedScreen,
                    onClick = { selectedScreen = screen },
                    text = { Text(stringResource(screen.title)) },
                    modifier = Modifier.focusRequester(focusRequester = focusRequesters[index])
                )
            }
        }
        when (selectedScreen) {
            Screen.FocusTarget -> {
                FocusTargetTab(
                    onClick = context::onCardClicked,
                    modifier = Modifier.padding(32.dp),
                )
            }

            Screen.FocusTraversalOrder -> {
                FocusTraversalOrderTab(
                    onClick = context::onCardClicked,
                    modifier = Modifier.padding(32.dp)
                )
            }

            Screen.FocusRestoration -> {
                FocusGroupTab(
                    onClick = context::onCardClicked,
                    modifier = Modifier.padding(32.dp)
                )
            }
        }
    }
}

You can control the focus movement with the focusProperties modifier. In the lambda passed to the modifier, modify FocusProperties, which is referred to when the system chooses the focus target when users press the Tab key or directional keys when the modified UI element is focused.

When you set the enter property, the system evaluates the lambda set to the property and moves to the UI element that is associated with the FocusRequester object returned by the evaluated lambda.

Run it

Now, keyboard focus moves to the selected tab when the user is moving focus to the tab row. You can try it with the following steps:

1. Run the app
2. Select the Focus group tab
3. Move the focus to 1st card with the down directional key.
4. Move the focus with the up directional key.

Figure 13. Focus moves to the selected tab.

9. Focus restoration

Users expect that they can easily resume a task when it's interrupted. Focus restoration supports recovery from an interruption. Focus restoration moves keyboard focus to the UI element that was previously selected.

A typical use case of focus restoration is the home screen of video streaming apps. The screen has multiple lists of video content, such as movies in a category or episodes of a TV show. Users look around the lists and find interesting content. Sometimes, users move back to the previously examined list and continue browsing it. With focus restoration, users can continue browsing without moving keyboard focus to the last item they looked at in the list.

focusRestorer modifier restores focus to a focus group

Use the focusRestorer modifier to save and restore focus to a focus group. When focus leaves the focus group, focus stores a reference to the item that was previously focused. Then when focus re-enters the focus group, focus is restored to the previously focused item.

Integrate focus restoration with the Focus group tab

The sample app's Focus group tab has a row containing 2nd card, 3rd card, and 4th card.

Figure 14. Focus group containing 2nd card, 3rd card, and 4th card.

You can integrate focus restoration in the row with the following steps:

1. Open tab.FocusGroupTab.kt
2. Modify the Row composable in the FocusGroupTab composable with the focusRestorer modifier. The modifier should be called before the focusGroup modifier.

The modified code looks as follows:

@Composable
fun FocusGroupTab(
    onClick: () -> Unit,
    modifier: Modifier = Modifier
) {
    Column(
        verticalArrangement = Arrangement.spacedBy(16.dp),
        modifier = modifier,
    ) {
        FirstCard(
            onClick = onClick,
            modifier = Modifier.width(208.dp)
        )
        Row(
            horizontalArrangement = Arrangement.spacedBy(16.dp),
            modifier = Modifier
                .focusRestorer()
                .focusGroup(),
        ) {
            SecondCard(
                onClick = onClick,
                modifier = Modifier.width(208.dp)
            )
            ThirdCard(
                onClick = onClick,
                modifier = Modifier.width(208.dp)
            )
            FourthCard(
                onClick = onClick,
                modifier = Modifier.width(208.dp)
            )
        }
    }
}

Run it

Now, the row in the Focus group tab restores focus, and you can try it with the following steps:

1. Select the Focus group tab
2. Move focus to 1st card
3. Move focus to 4th card with the Tab key
4. Move focus to 1st card with up directional key
5. Press the Tab key

Keyboard focus moves to 4th card as the focusRestorer modifier saves the card's reference and restores focus when keyboard focus enters the focus group set to the row.

Figure 15. Focus returns to 4th card after up directional keypress followed by Tab keypress.

10. Write a test

You can test the implemented keyboard focus management with tests. Compose provides an API to test whether a UI element is focused and perform key presses on the UI components. Refer to the Testing in Jetpack Compose codelab for more information.

Test the Focus target tab

You modified the FocusTargetTab composable function to set 2nd card as a focus target in the previous section. Write a test of the implementation which you performed manually in the previous section. The test can be written with the following steps:

1. Open FocusTargetTabTest.kt. You will modify the testSecondCardIsFocusTarget function in the following steps.
2. Request the focus to move to 1st card by calling the requestFocus method over the SemanticsNodeInteraction object for 1st card.
3. Ensure that 1st card is focused with the assertIsFocused() method.
4. Perform the Tab key press by calling the pressKey method with Key.Tab value inside the lambda passed to the performKeyInput method.
5. Test whether keyboard focus moves to 2nd card by calling the assertIsFocused() method over the SemanticsNodeInteraction object for 2nd card.

The updated code looks as follows:

@OptIn(ExperimentalTestApi::class, ExperimentalComposeUiApi::class)
@Test
fun testSecondCardIsFocusTarget() {
    composeTestRule.setContent {
        LocalInputModeManager
            .current
            .requestInputMode(InputMode.Keyboard)
        FocusTargetTab(onClick = {})
    }
    val context = InstrumentationRegistry.getInstrumentation().targetContext

    // Ensure the 1st card is focused
    composeTestRule
        .onNodeWithText(context.getString(R.string.first_card))
        .requestFocus()
        .performKeyInput { pressKey(Key.Tab) }

    // Test if focus moves to the 2nd card from the 1st card with Tab key
    composeTestRule
        .onNodeWithText(context.getString(R.string.second_card))
        .assertIsFocused()
}

Run it

You can run the test by clicking the triangular icon displayed to the left of the FocusTargetTest class declaration. Refer to the Run tests section in Test in Android Studio for more information.

11. Congratulations

Well done! You learned the building blocks for keyboard focus management:

• Focus target
• Focus traversal

You can control the focus traversal order with following Compose modifiers:

• The focusGroup modifier
• The focusProperties modifier

You implemented the typical pattern for UX with hardware keyboard, initial focus, and focus restoration. These patterns are implemented by combinating the following APIs:

• FocusRequester class
• The focusRequester modifier
• The focusRestorer modifier
• LaunchedEffect composable function

The implemented UX can be tested with instrumented tests. Compose offers ways to perform key presses and test whether a SemanticsNode has keyboard focus or not.

Learn more

• Inputs
• Focus in Compose
• Test apps on Android
• Testing in Jetpack Compose
